RSAO40-XL
Plummer block housing unit RSAO40-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
40 mm
Bore diameter
L
220 mm
Length total
H2
116 mm
Height
≈m
3.1 kg
Weight

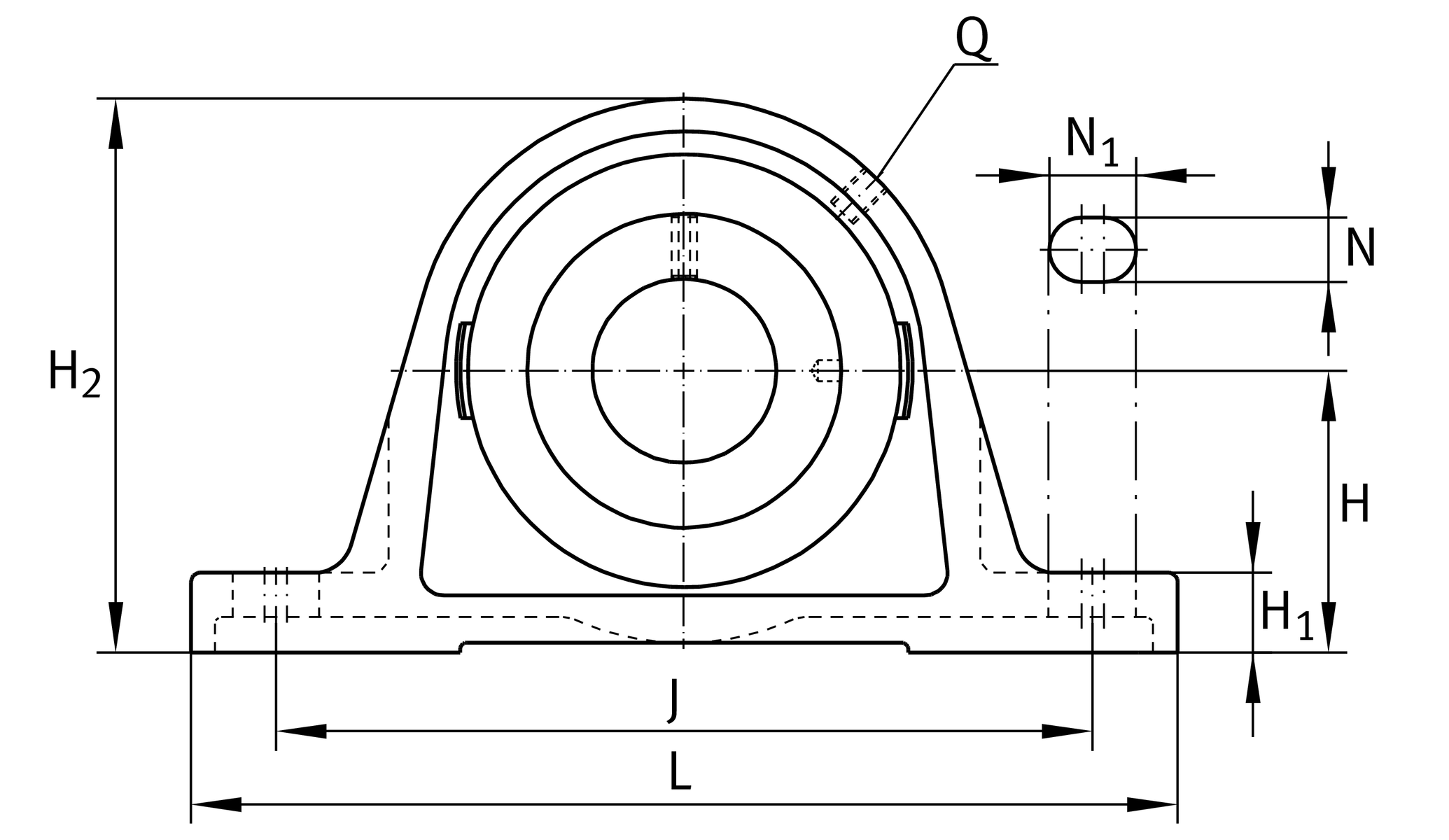

Mounting dimensions
J
170 mm
Distance fixing bore
N
17.5 mm
Width (slot)
N1
27.5 mm
Length (slot)

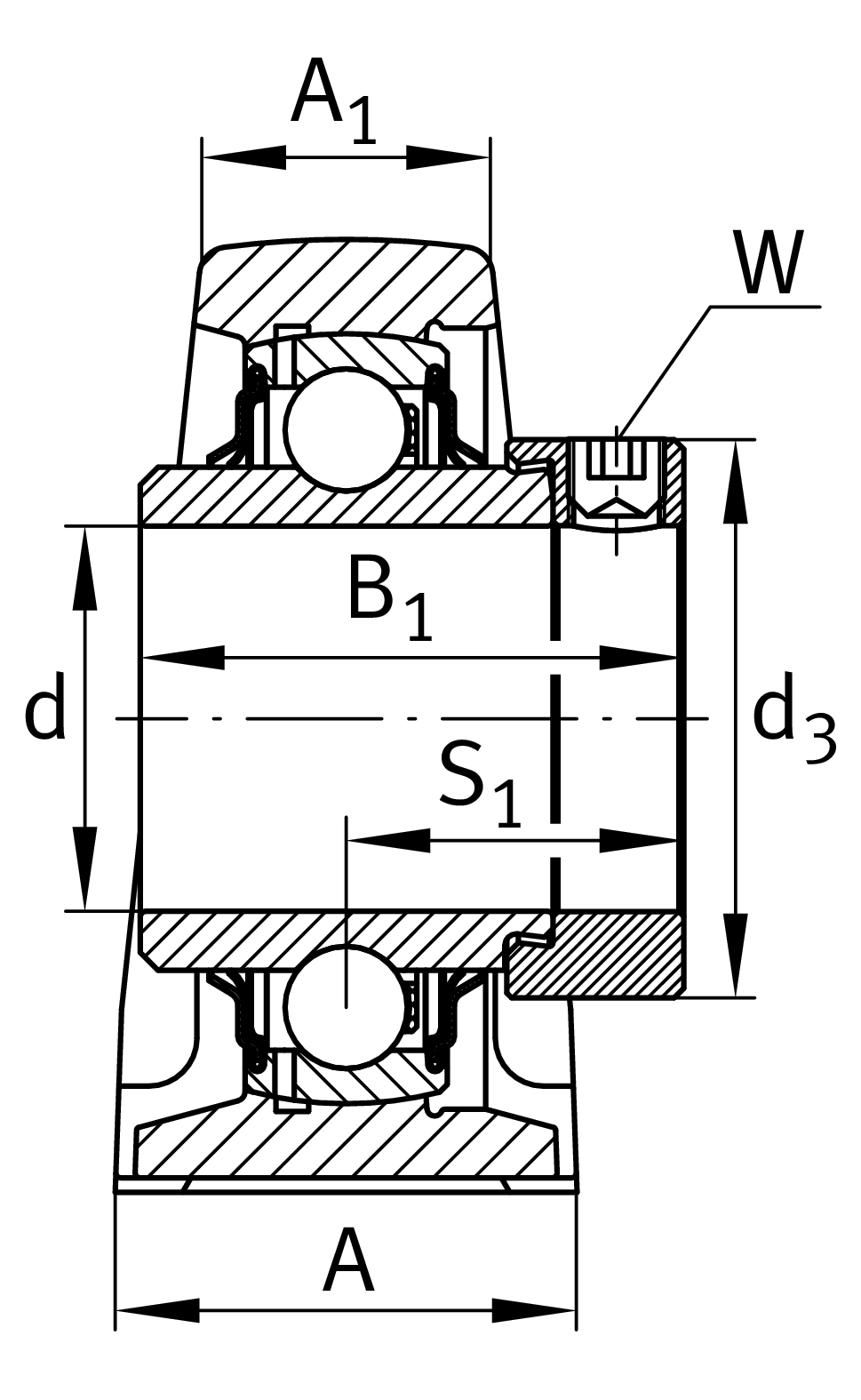

Dimensions
H
60 mm
Distance shaft axis
A
60 mm
Width (base)
A1
31 mm
Width (head)
H1
22 mm
Heigth (base)
B1
54.6 mm
Locking collar total width
S1
36.6 mm
Distance of raceway to locking collar
Q
M6
Connection thread for lubrication

Additional information
SAO08
Housing
GNE40-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
