FAG INA Schaeffler
INA
RSAO35-XL
Plummer block housing unit RSAO35-XL
Thêm vào yêu cầu báo giá

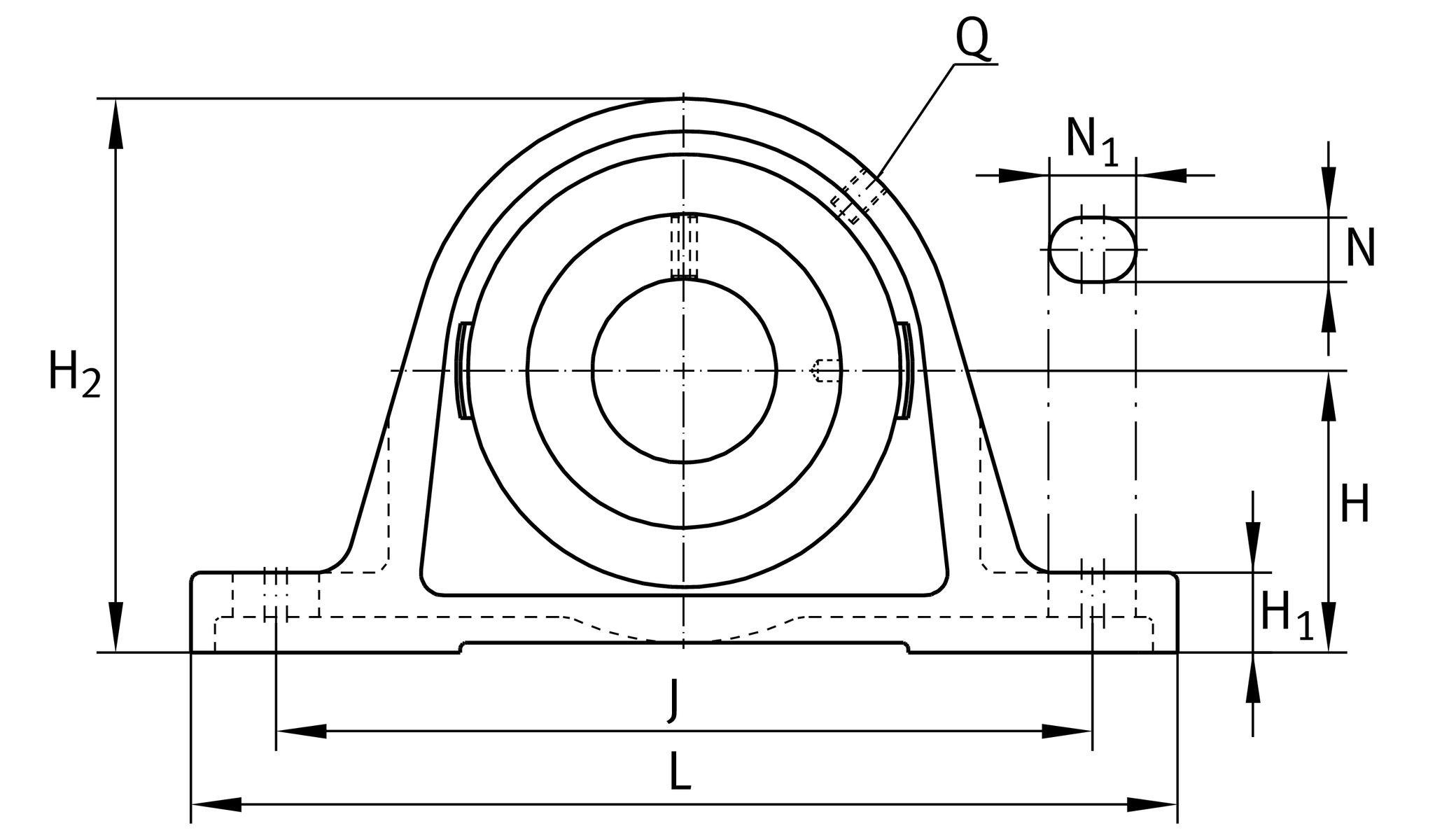

Main Dimensions & Performance Data
d
35 mm
Bore diameter
L
210 mm
Length total
H2
106 mm
Height
≈m
2.43 kg
Weight

Mounting dimensions
J
160 mm
Distance fixing bore
N
17.5 mm
Width (slot)
N1
25.5 mm
Length (slot)

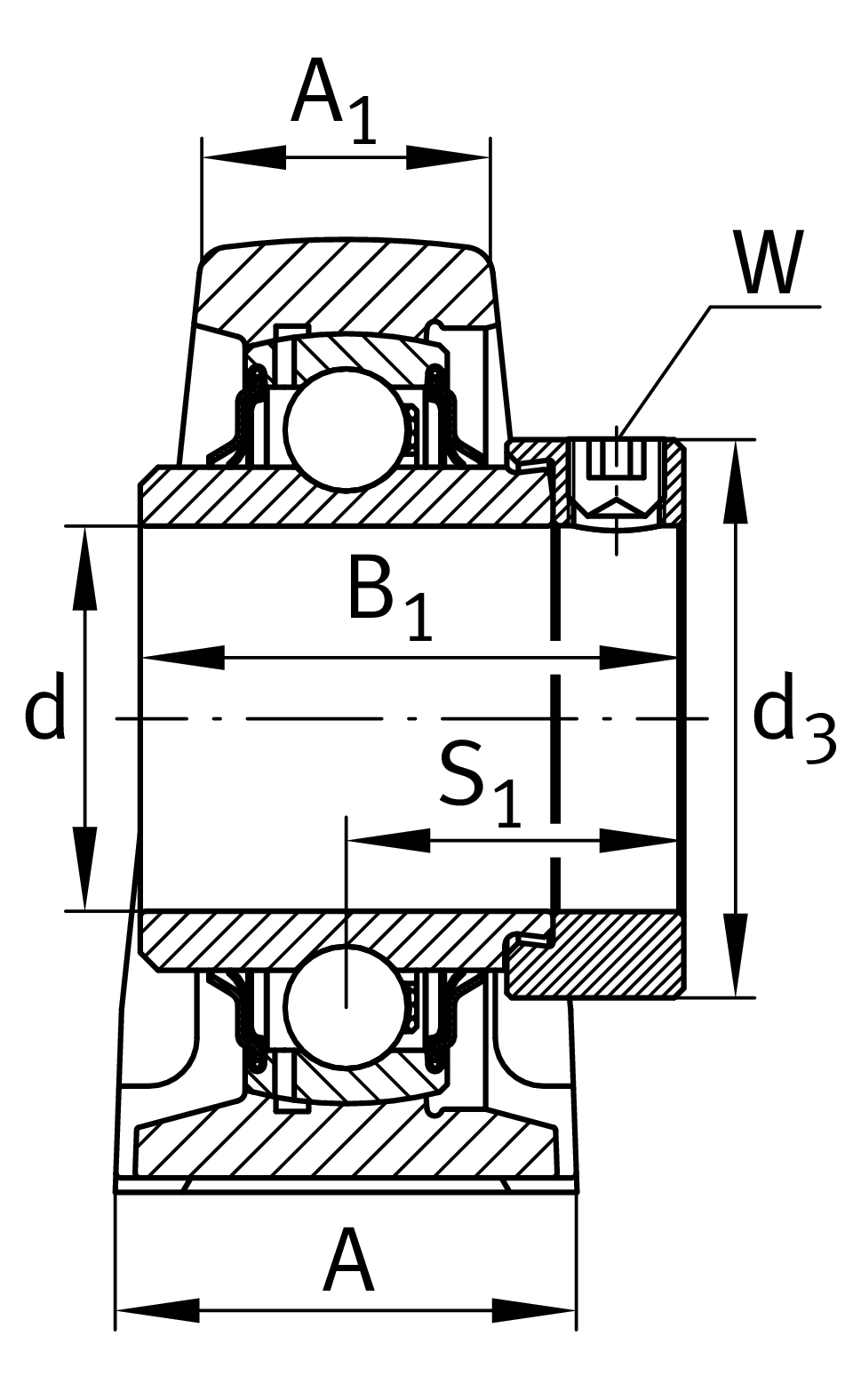

Dimensions
H
56 mm
Distance shaft axis
A
56 mm
Width (base)
A1
30 mm
Width (head)
H1
20 mm
Heigth (base)
B1
51.6 mm
Locking collar total width
S1
33.3 mm
Distance of raceway to locking collar
Q
M6
Connection thread for lubrication

Additional information
SAO07
Housing
GNE35-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
