RSAO30-XL
Plummer block housing unit RSAO30-XL
Thêm vào yêu cầu báo giá

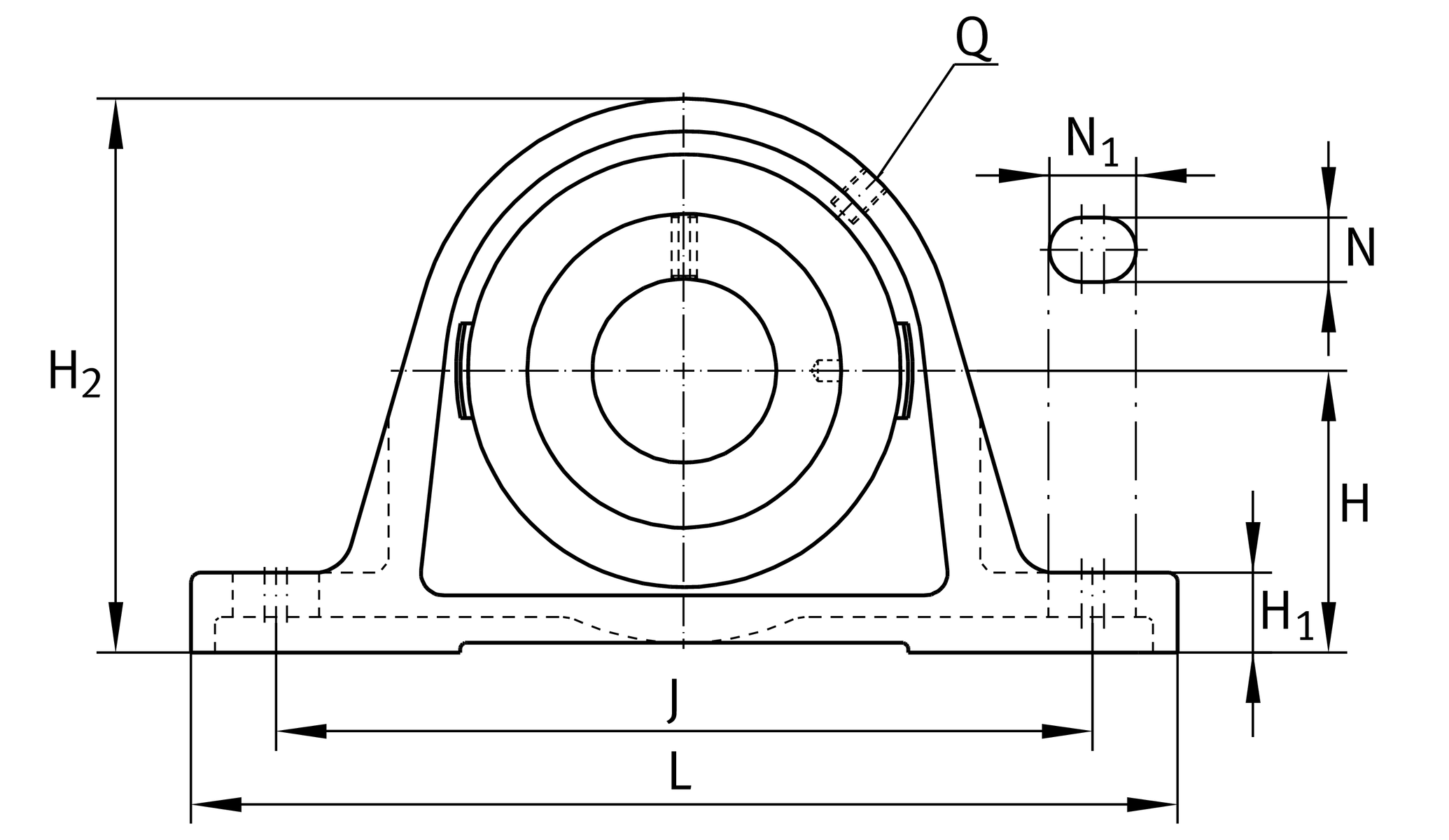

Main Dimensions & Performance Data
d
30 mm
Bore diameter
L
180 mm
Length total
H2
95 mm
Height
≈m
1.86 kg
Weight

Mounting dimensions
J
140 mm
Distance fixing bore
N
17.5 mm
Width (slot)
N1
20.5 mm
Length (slot)

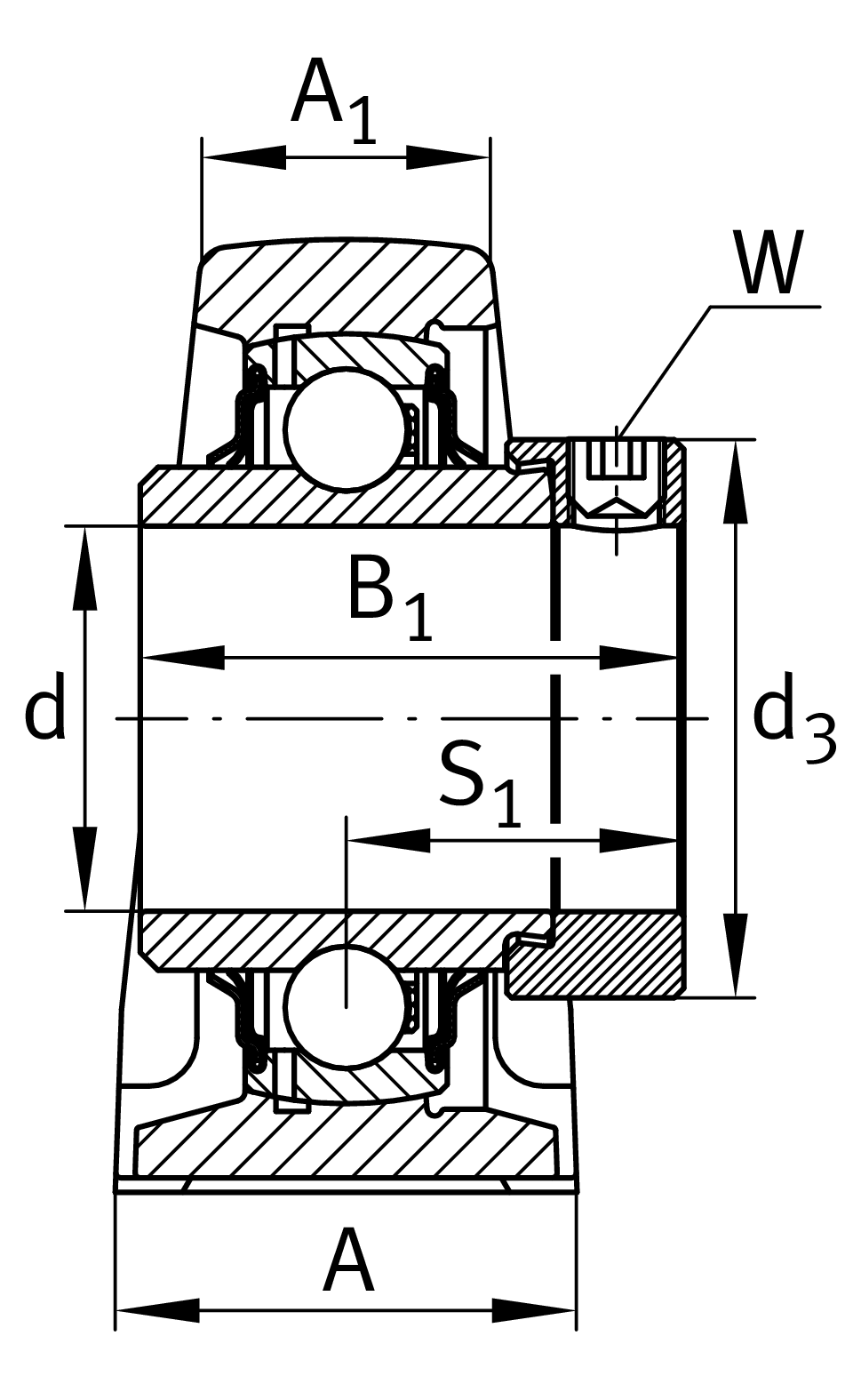

Dimensions
H
50 mm
Distance shaft axis
A
50 mm
Width (base)
A1
28 mm
Width (head)
H1
18 mm
Heigth (base)
B1
50.2 mm
Locking collar total width
S1
32.7 mm
Distance of raceway to locking collar
Q
M6
Connection thread for lubrication

Additional information
SAO06
Housing
GNE30-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
