RSAO100-XL
Plummer block housing unit RSAO100-XL
Thêm vào yêu cầu báo giá

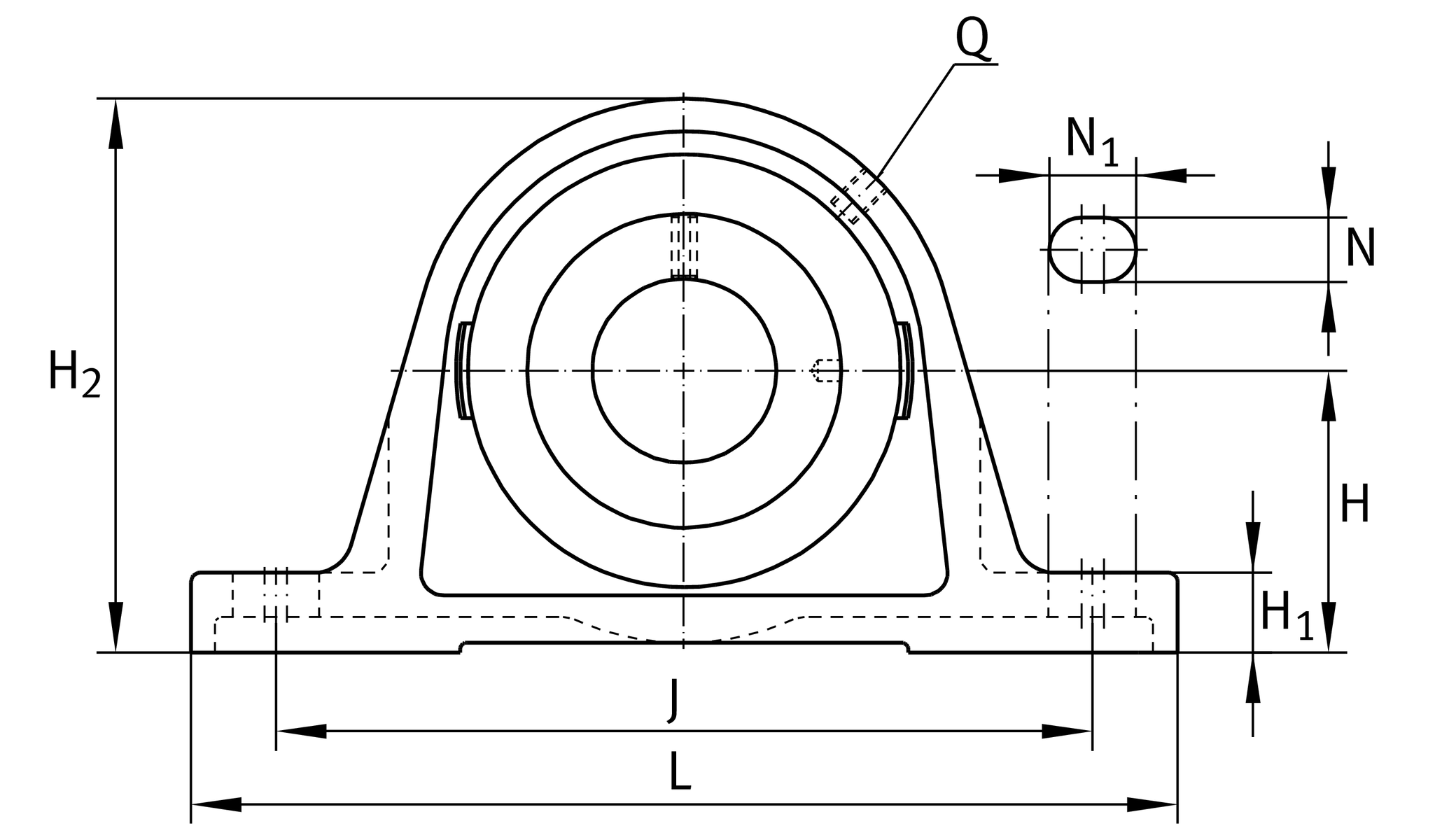

Main Dimensions & Performance Data
d
100 mm
Bore diameter
L
440 mm
Length total
H2
280 mm
Height
≈m
37.1 kg
Weight

Mounting dimensions
J
375 mm
Distance fixing bore
N
32 mm
Width (slot)
N1
47 mm
Length (slot)

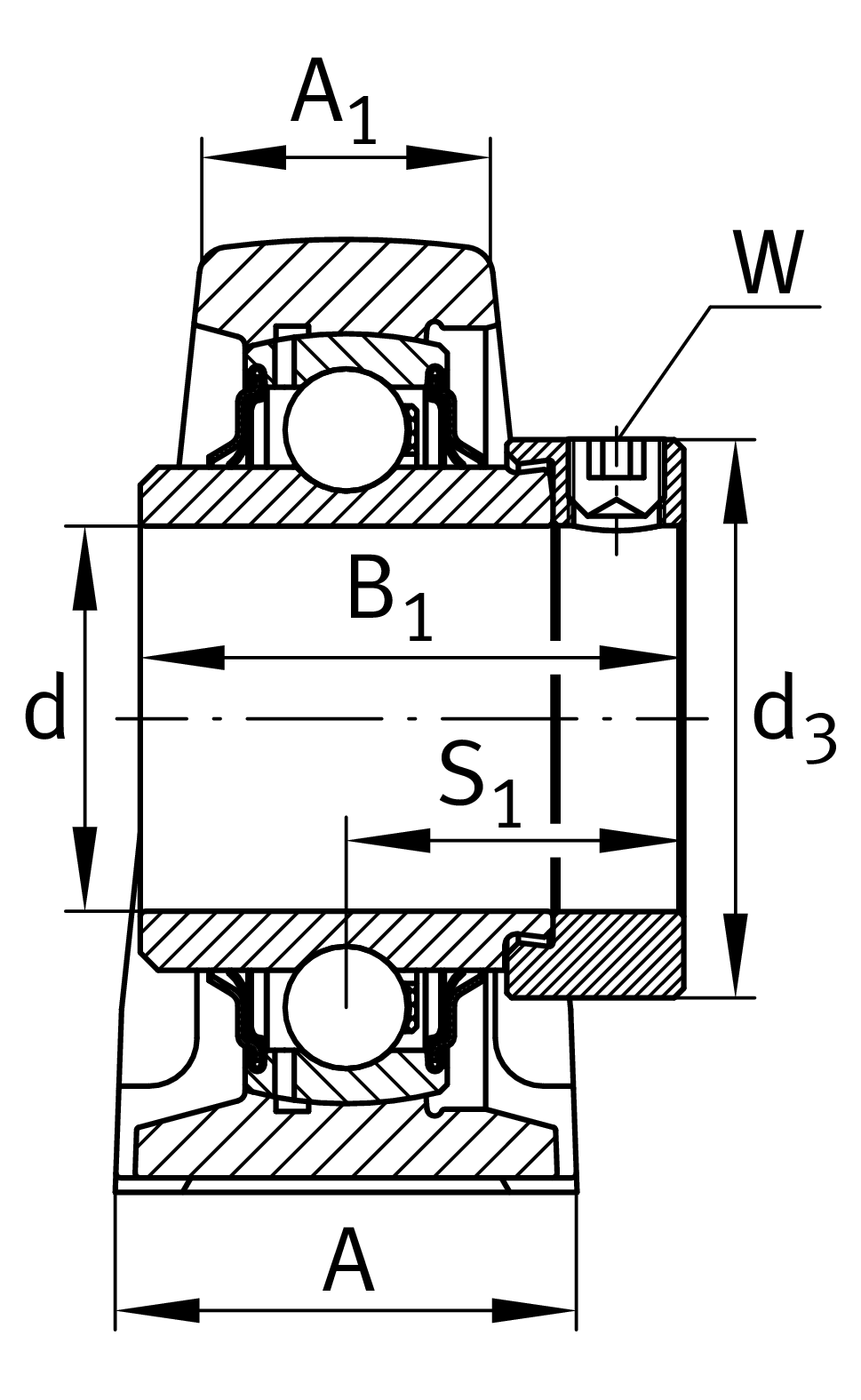

Dimensions
H
145 mm
Distance shaft axis
A
130 mm
Width (base)
A1
94 mm
Width (head)
H1
65 mm
Heigth (base)
B1
109.4 mm
Locking collar total width
S1
69.9 mm
Distance of raceway to locking collar
Q
M6
Connection thread for lubrication

Additional information
SAO20
Housing
GNE100-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
