RSAO60-XL
Plummer block housing unit RSAO60-XL
Thêm vào yêu cầu báo giá

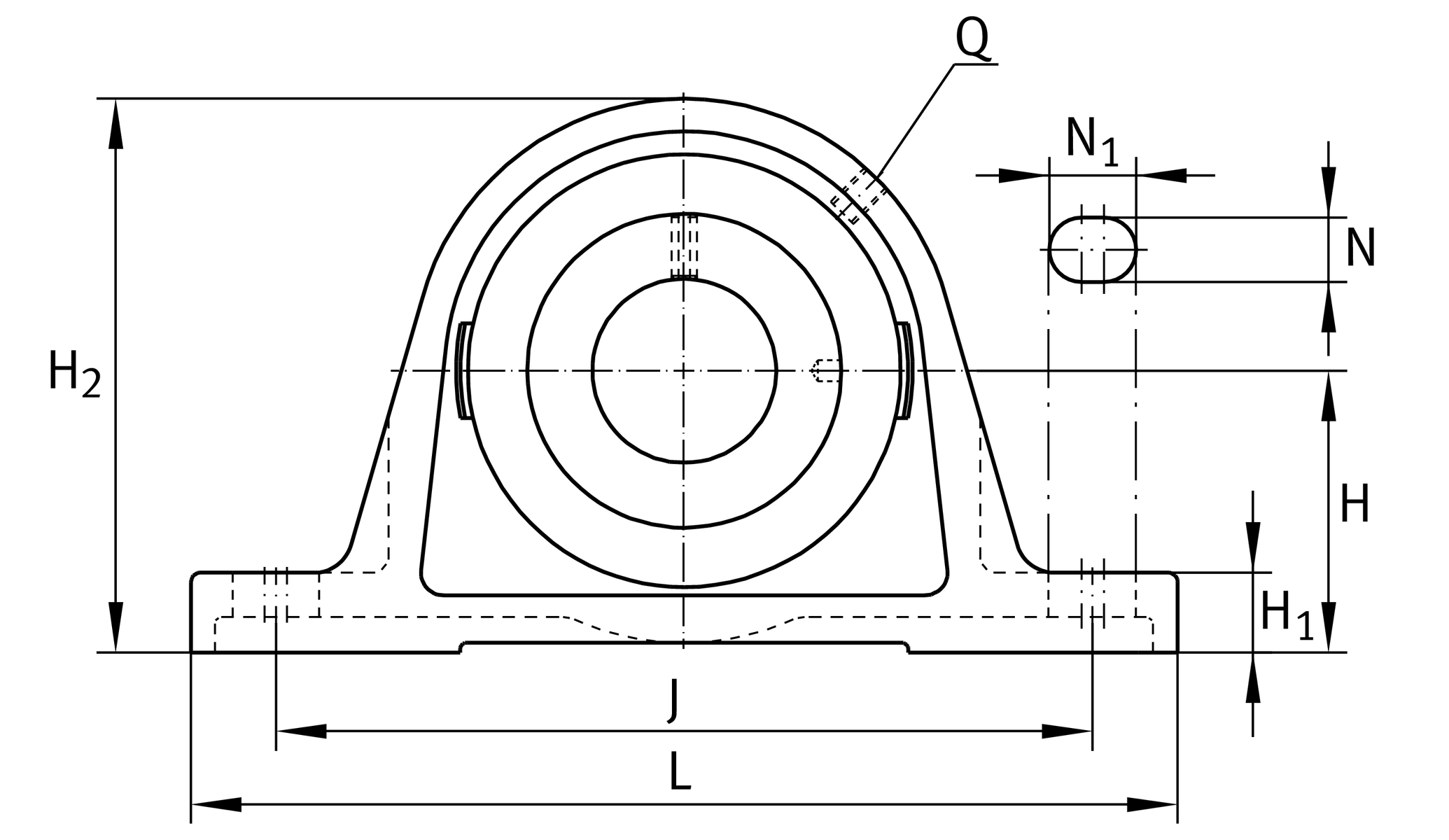

Main Dimensions & Performance Data
d
60 mm
Bore diameter
L
330 mm
Length total
H2
165 mm
Height
≈m
8.69 kg
Weight

Mounting dimensions
J
250 mm
Distance fixing bore
N
25 mm
Width (slot)
N1
38 mm
Length (slot)

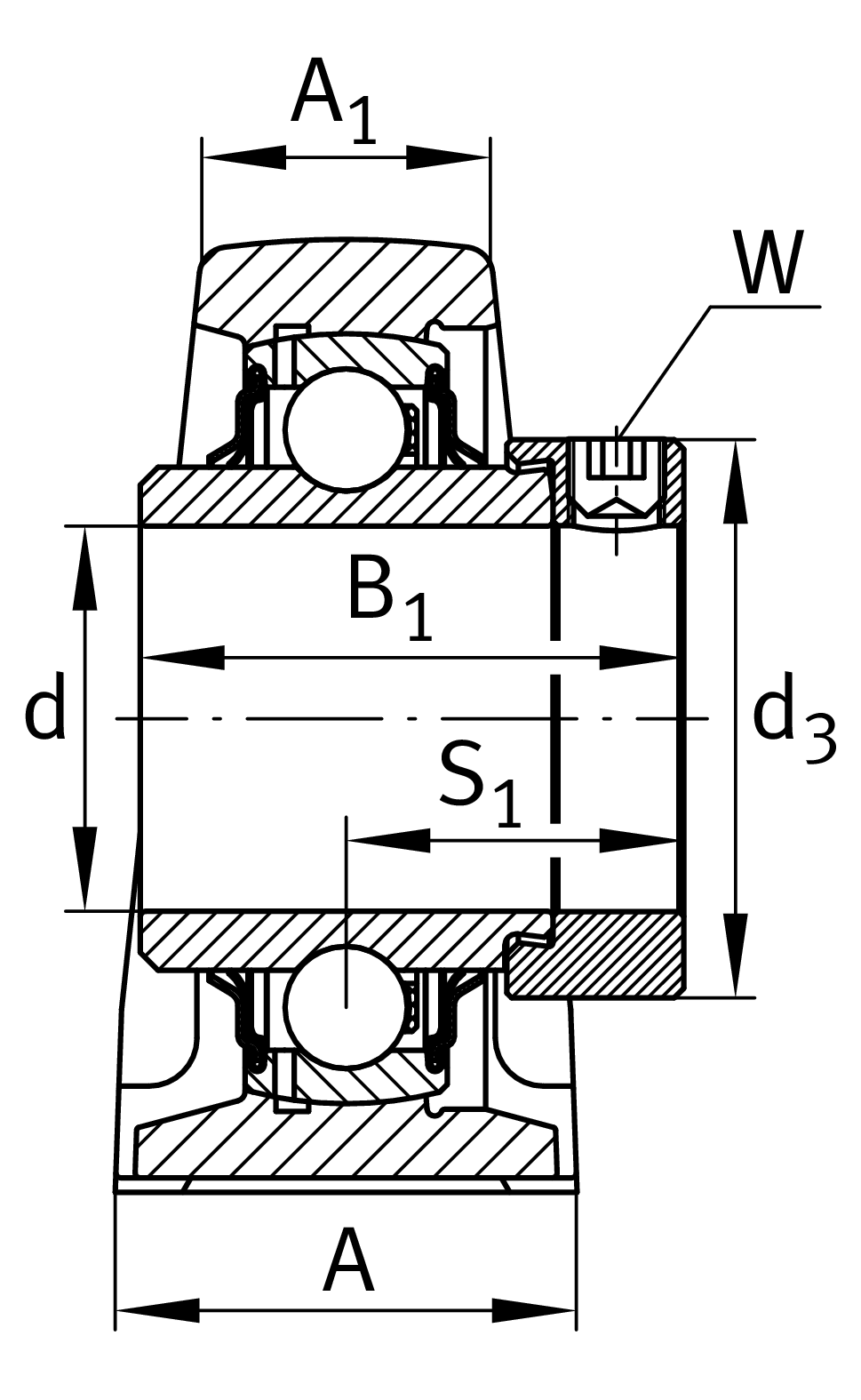

Dimensions
H
85 mm
Distance shaft axis
A
85 mm
Width (base)
A1
46 mm
Width (head)
H1
32 mm
Heigth (base)
B1
68 mm
Locking collar total width
S1
45 mm
Distance of raceway to locking collar
Q
M6
Connection thread for lubrication

Additional information
SAO12
Housing
GNE60-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
