RSAO70-XL
Plummer block housing unit RSAO70-XL
Thêm vào yêu cầu báo giá

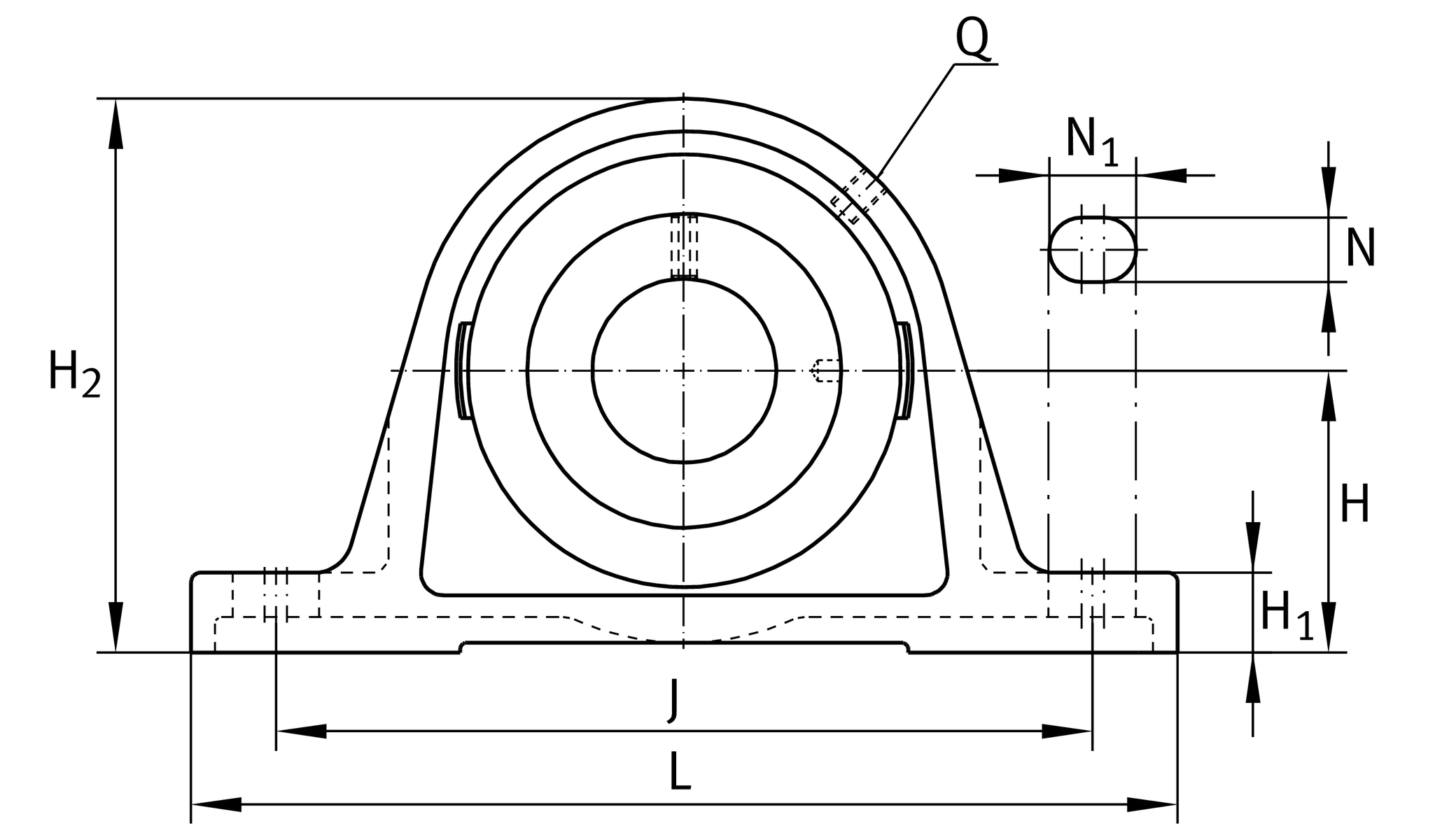

Main Dimensions & Performance Data
d
70 mm
Bore diameter
L
360 mm
Length total
H2
187 mm
Height
≈m
11.94 kg
Weight

Mounting dimensions
J
282 mm
Distance fixing bore
N
27 mm
Width (slot)
N1
42 mm
Length (slot)

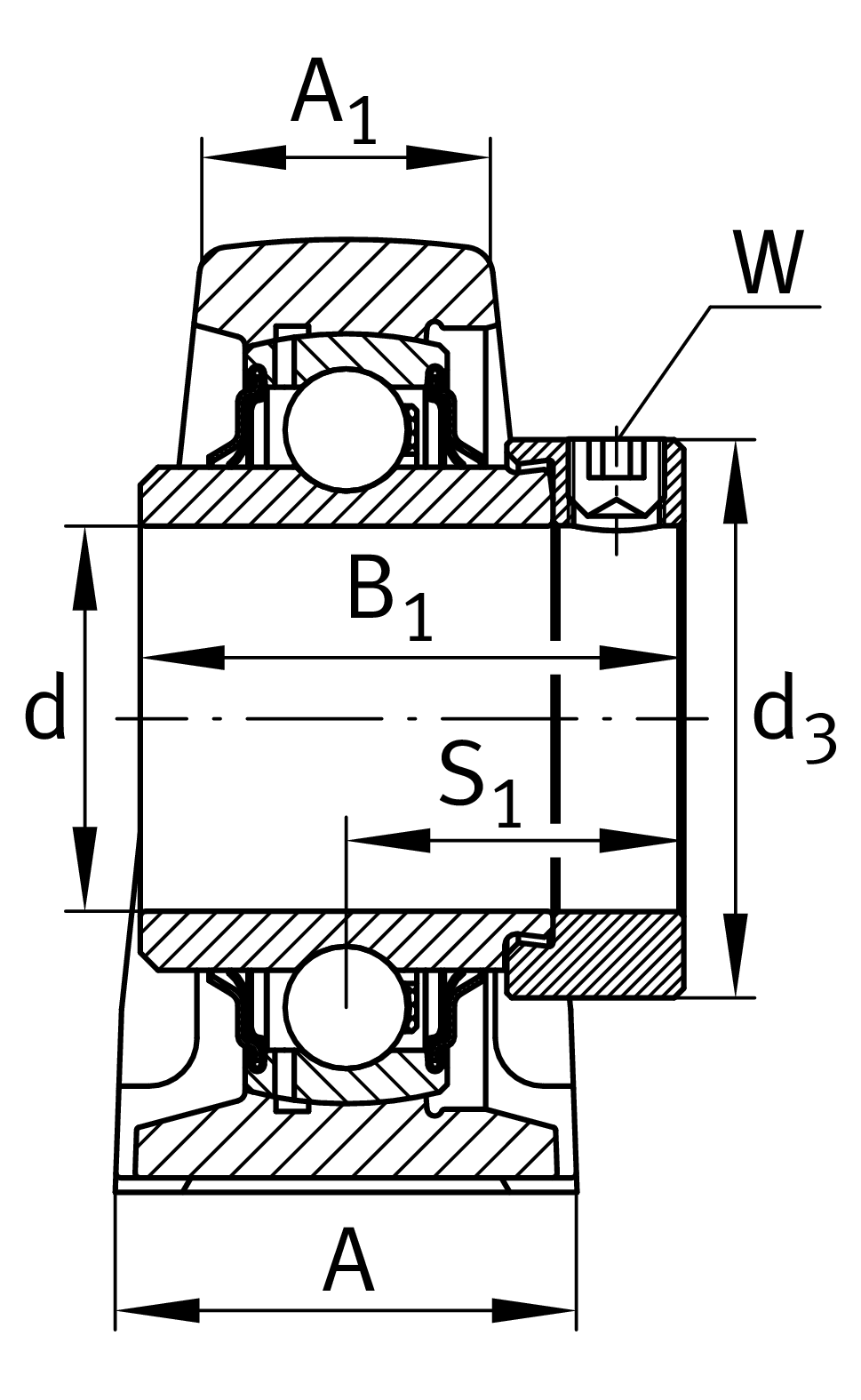

Dimensions
H
95 mm
Distance shaft axis
A
90 mm
Width (base)
A1
54 mm
Width (head)
H1
35 mm
Heigth (base)
B1
75.5 mm
Locking collar total width
S1
49.5 mm
Distance of raceway to locking collar
Q
M6
Connection thread for lubrication

Additional information
SAO14
Housing
GNE70-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
