FAG INA Schaeffler
INA
RSAO80-XL
Plummer block housing unit RSAO80-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
80 mm
Bore diameter
L
390 mm
Length total
H2
226 mm
Height
≈m
21.22 kg
Weight

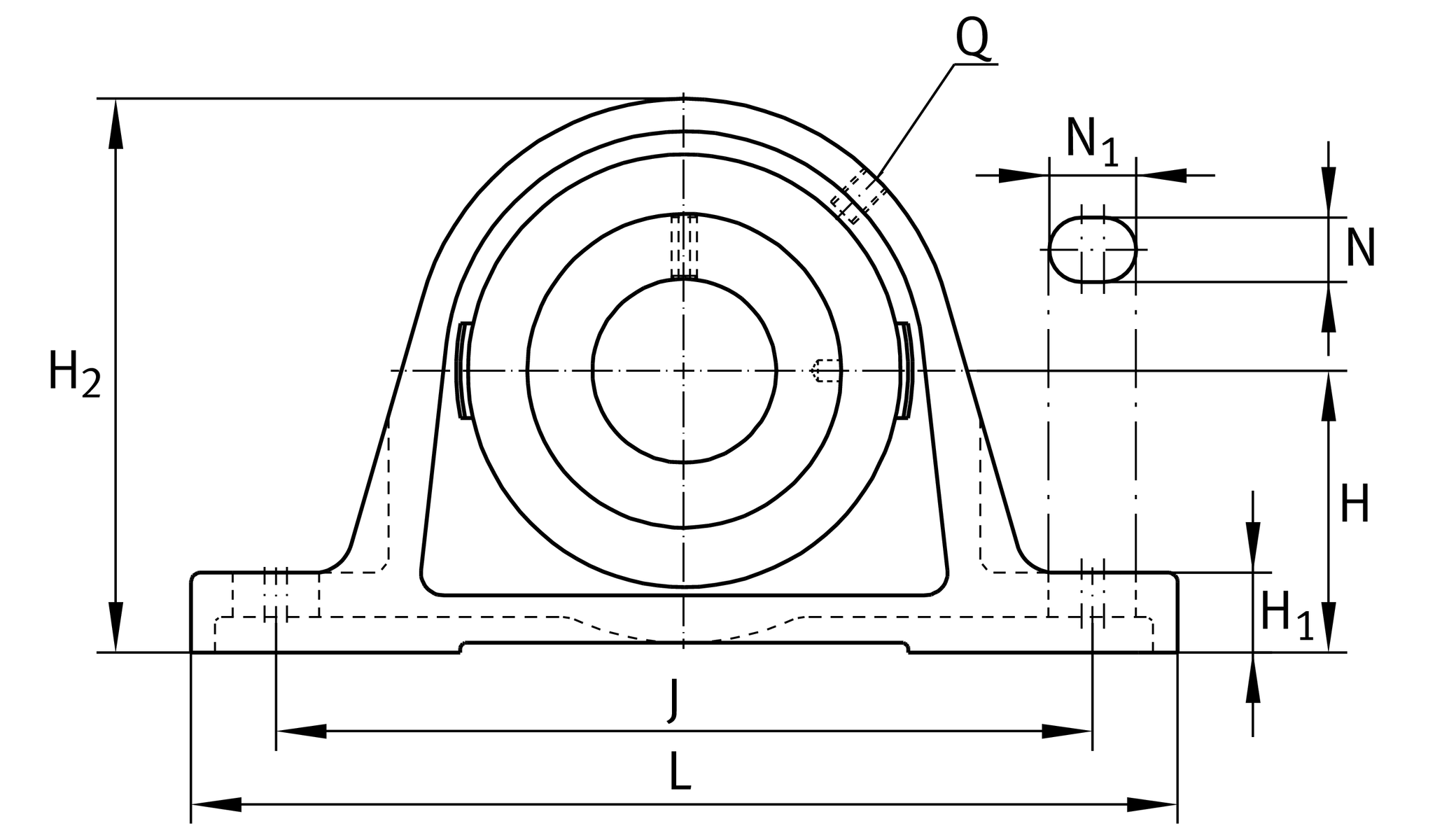

Mounting dimensions
J
315 mm
Distance fixing bore
N
25.5 mm
Width (slot)
N1
44.5 mm
Length (slot)

Dimensions
H
116 mm
Distance shaft axis
A
110 mm
Width (base)
A1
76 mm
Width (head)
H1
50 mm
Heigth (base)
B1
93.6 mm
Locking collar total width
S1
59.6 mm
Distance of raceway to locking collar
Q
M6
Connection thread for lubrication

Additional information
SAO16
Housing
GNE80-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
