RSAO90-XL
Plummer block housing unit RSAO90-XL
Thêm vào yêu cầu báo giá

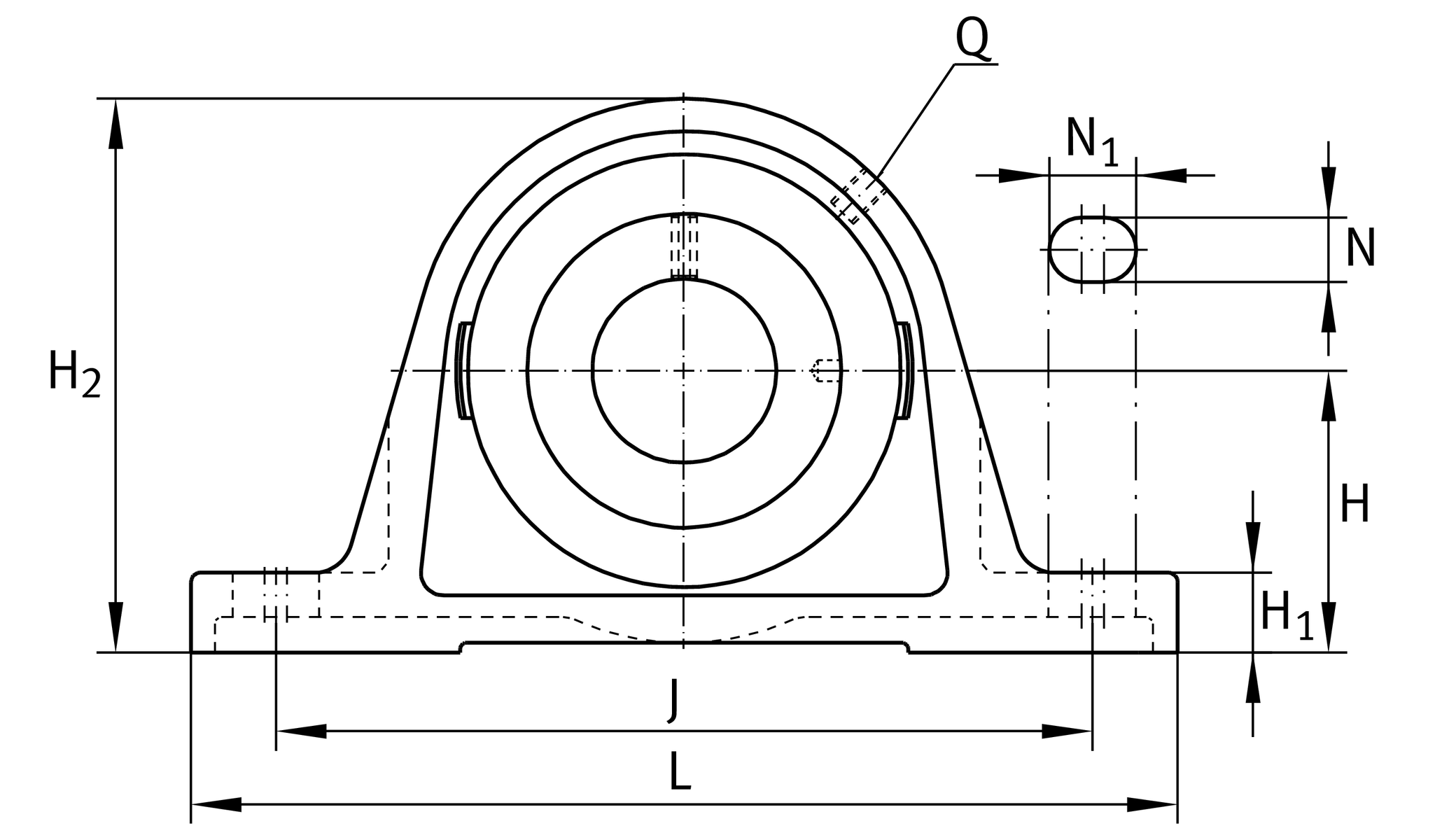

Main Dimensions & Performance Data
d
90 mm
Bore diameter
L
410 mm
Length total
H2
250 mm
Height
≈m
28.86 kg
Weight

Mounting dimensions
J
340 mm
Distance fixing bore
N
28 mm
Width (slot)
N1
54 mm
Length (slot)

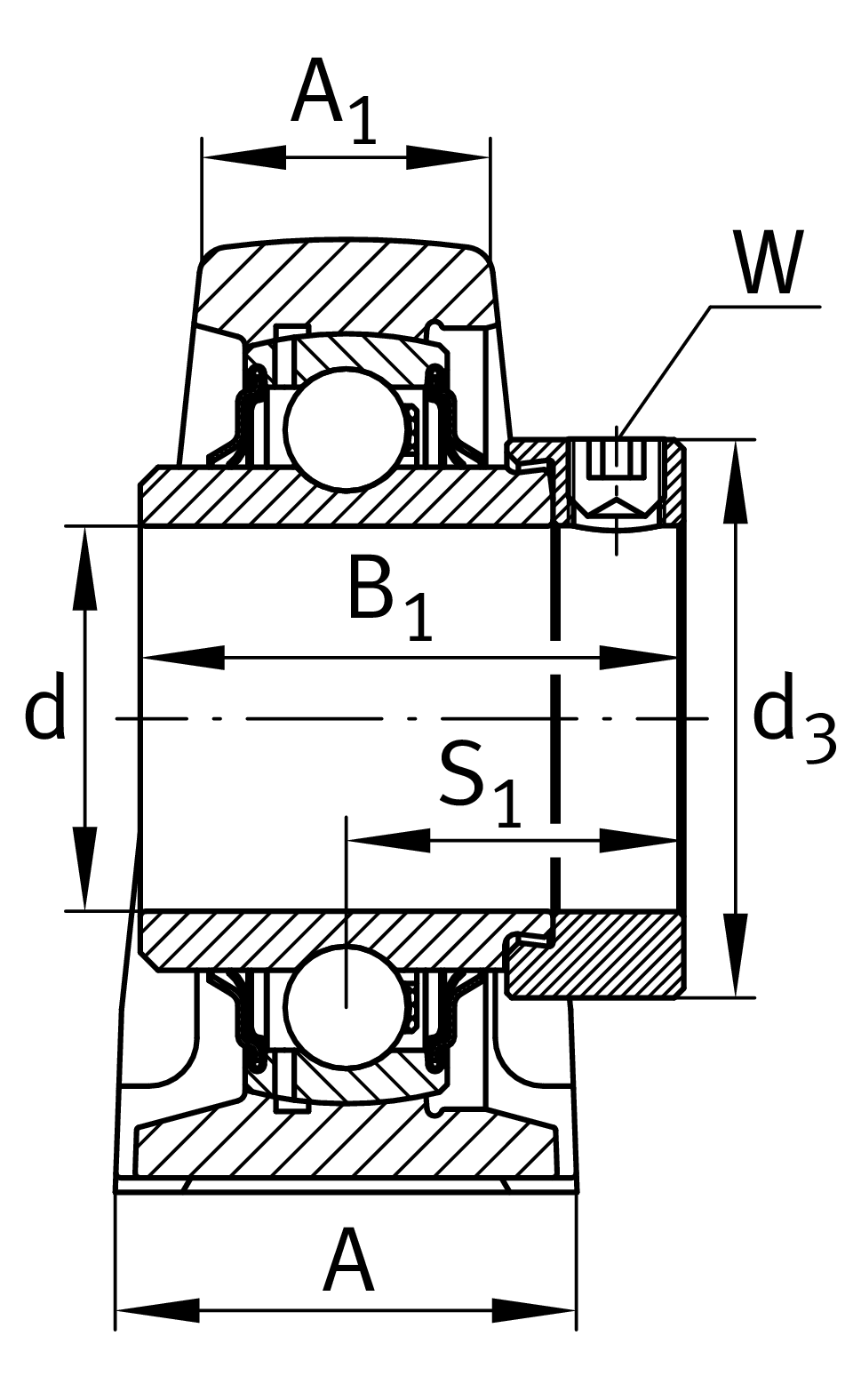

Dimensions
H
130 mm
Distance shaft axis
A
120 mm
Width (base)
A1
84 mm
Width (head)
H1
57 mm
Heigth (base)
B1
101 mm
Locking collar total width
S1
65.5 mm
Distance of raceway to locking collar
Q
M6
Connection thread for lubrication

Additional information
SAO18
Housing
GNE90-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
