RSHE17-XL
Plummer block housing unit RSHE17-XL
Thêm vào yêu cầu báo giá

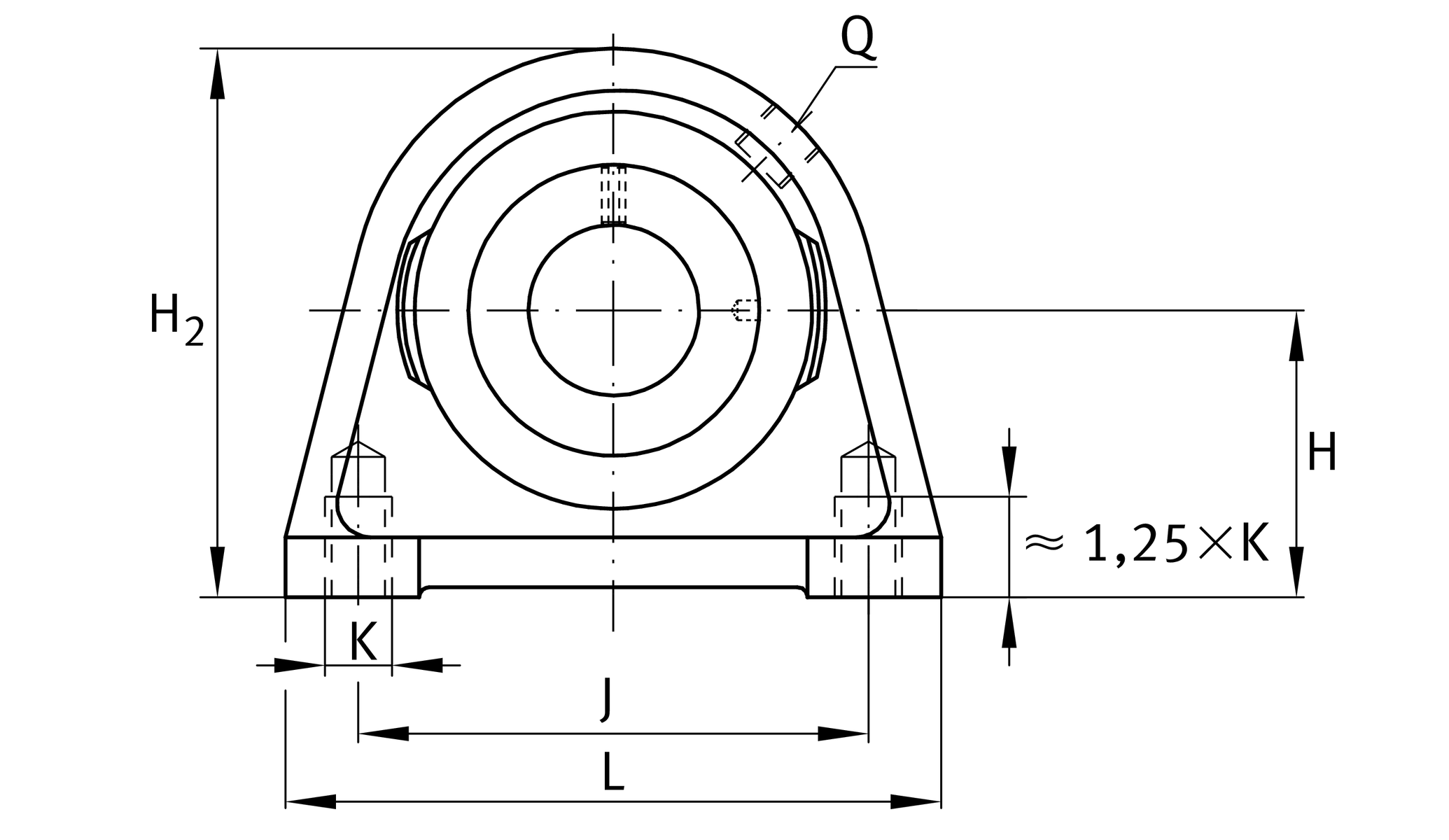

Main Dimensions & Performance Data
d
17 mm
Bore diameter
L
63 mm
Length total
H2
57 mm
Height
≈m
0.39 kg
Weight

Mounting dimensions
J
47 mm
Distance fixing bore
K
M8
Thread fixing bore

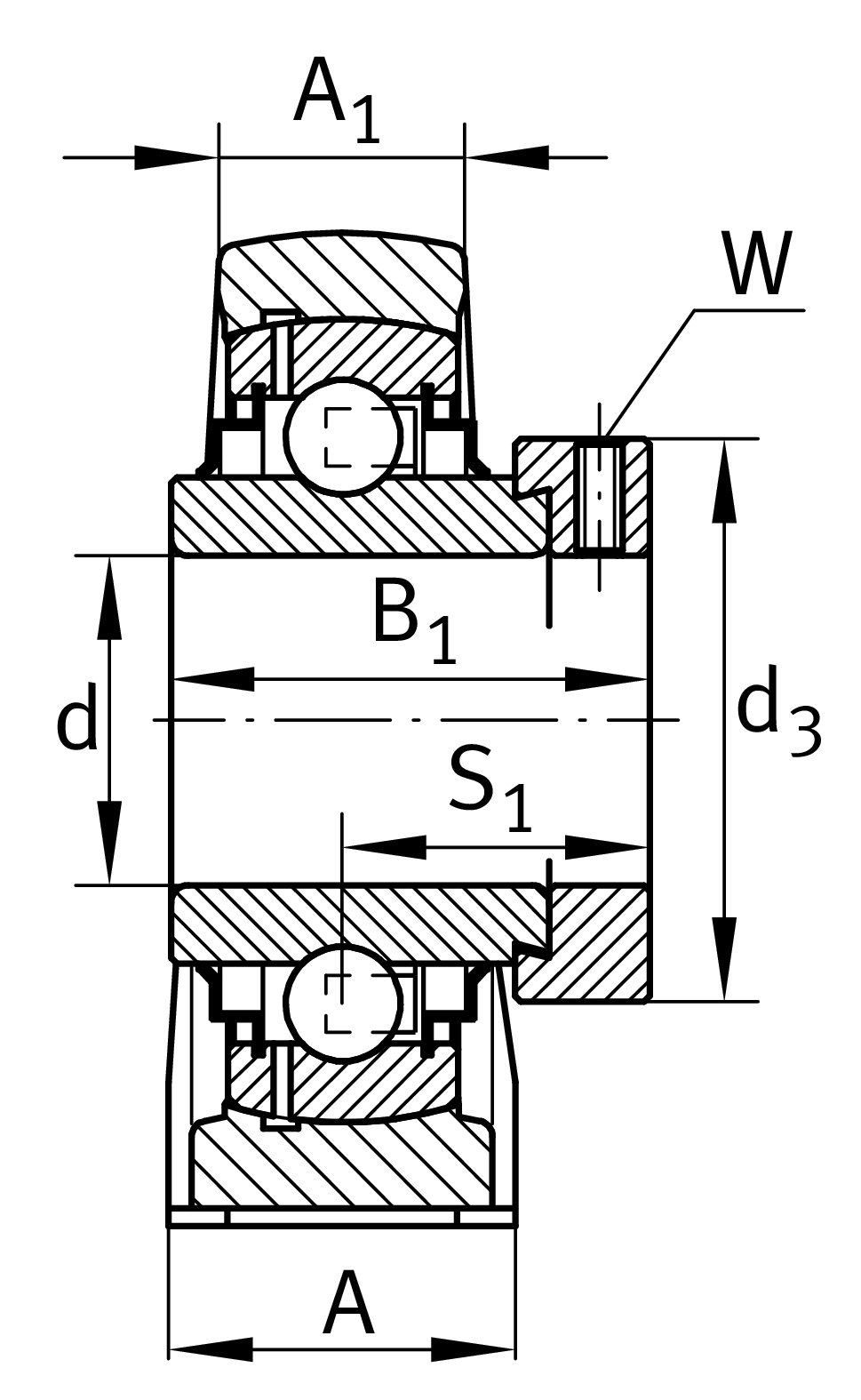

Dimensions
H
30.2 mm
Distance shaft axis
A
30 mm
Width (base)
A1
18 mm
Width (head)
Q
M6
Connection thread for lubrication

Additional information
SHE03
Housing
GE17-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
