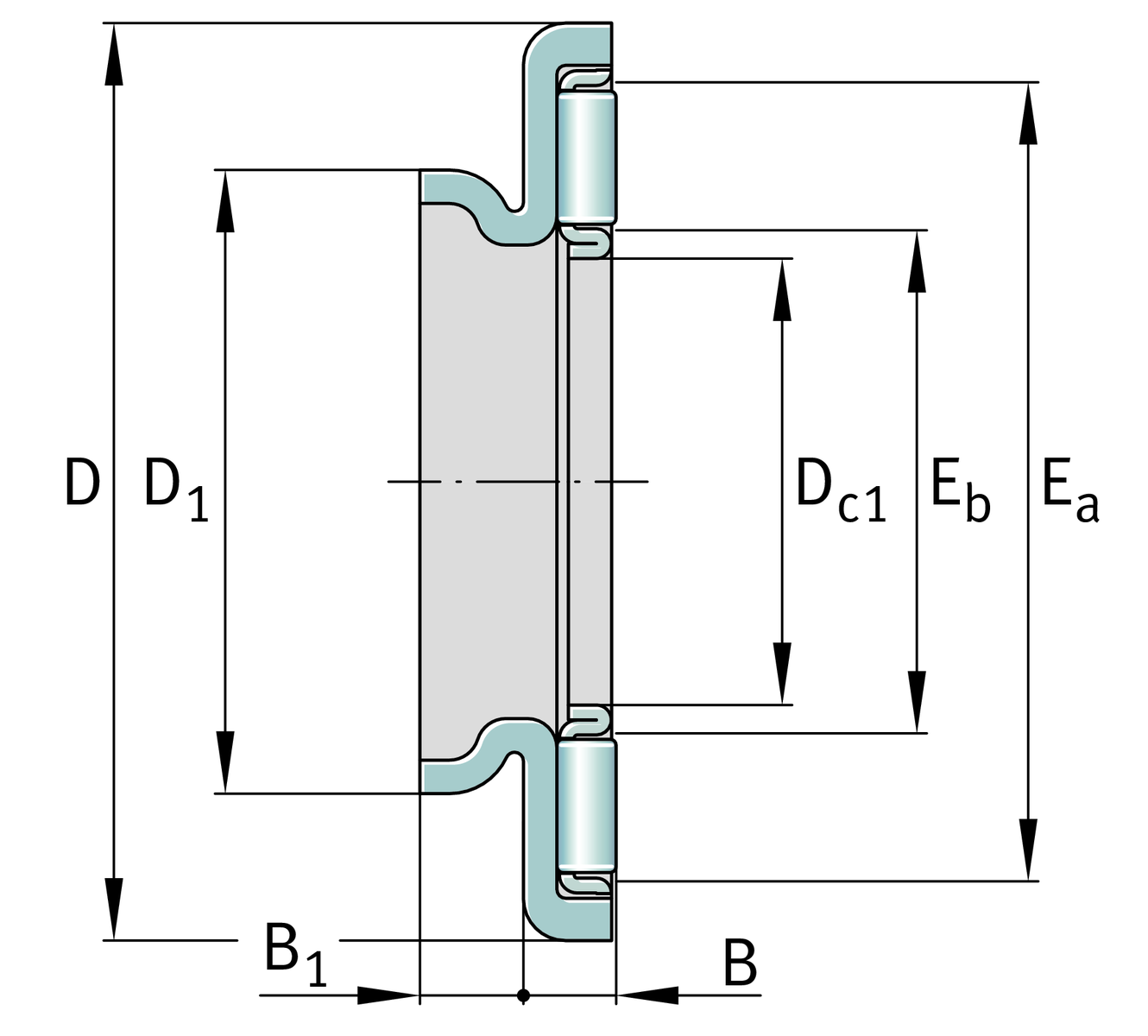

Main Dimensions & Performance Data
| Dc1 | 50 mm | Bore diameter cage |
| D | 73 mm | Outside diameter bearing washer |
| B | 4.2 mm | Height bearing |
| B1 | 4.5 mm | Height centering collar |
| D1 | 58 mm | Outside diameter centering collar |
| Ea | 68 mm | Raceway dimension |
| Eb | 55 mm | Raceway dimension |
| C | 32,000 N | Basic dynamic load rating, axial |
| C0a | 143,000 N | Basic static load rating, axial |
| cua | 15,100 N | Fatigue load limit, axial |
| nG | 4,800 1/min | Limiting speed |
| n ϑr | 2,230 1/min | Reference speed |
| ≈m | 48.94 g | Weight |
Additional information
AS5070 | Axial bearing washer | |
HK5022-RS | Drawn cup needle roller bearings turned | |
HK5025 | Drawn cup needle roller bearings | |
HK5020 | Drawn cup needle roller bearings for radial bearing arrangement | |
NKIS35 | Needle roller bearings with inner ring | |
NKS43 | Needle roller bearings with out inner ring |
