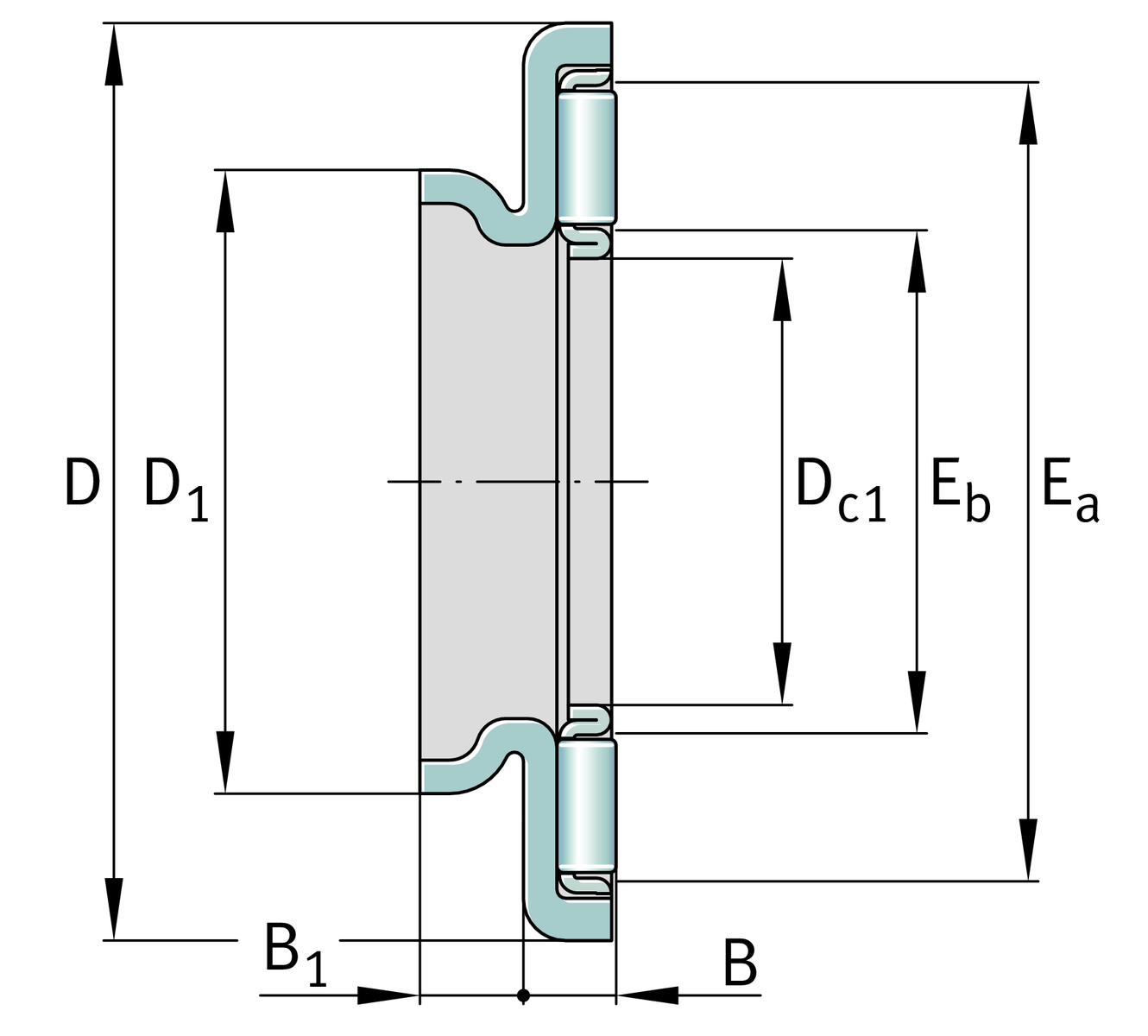

Main Dimensions & Performance Data
| Dc1 | 45 mm | Bore diameter cage |
| D | 68 mm | Outside diameter bearing washer |
| B | 4.2 mm | Height bearing |
| B1 | 4 mm | Height centering collar |
| D1 | 52 mm | Outside diameter centering collar |
| Ea | 63 mm | Raceway dimension |
| Eb | 50 mm | Raceway dimension |
| C | 30,000 N | Basic dynamic load rating, axial |
| C0a | 128,000 N | Basic static load rating, axial |
| cua | 13,600 N | Fatigue load limit, axial |
| nG | 5,200 1/min | Limiting speed |
| n ϑr | 2,490 1/min | Reference speed |
| ≈m | 43.38 g | Weight |
Additional information
AS4565 | Axial bearing washer | |
HK4518-RS | Drawn cup needle roller bearings turned | |
HK4520 | Drawn cup needle roller bearings | |
HK4516 | Drawn cup needle roller bearings for radial bearing arrangement | |
BK4520 | Needle bush | |
NKIS30 | Needle roller bearings with inner ring | |
NA49/32 | Needle roller bearings with inner ring | |
NA69/32-ZW | Needle roller bearings with inner ring | |
NK42/20 | Needle roller bearings with out inner ring | |
NK42/30 | Needle roller bearings with out inner ring | |
NKS37 | Needle roller bearings with out inner ring | |
RNA49/32 | Needle roller bearings with out inner ring | |
RNA69/32-ZW | Needle roller bearings with out inner ring |
