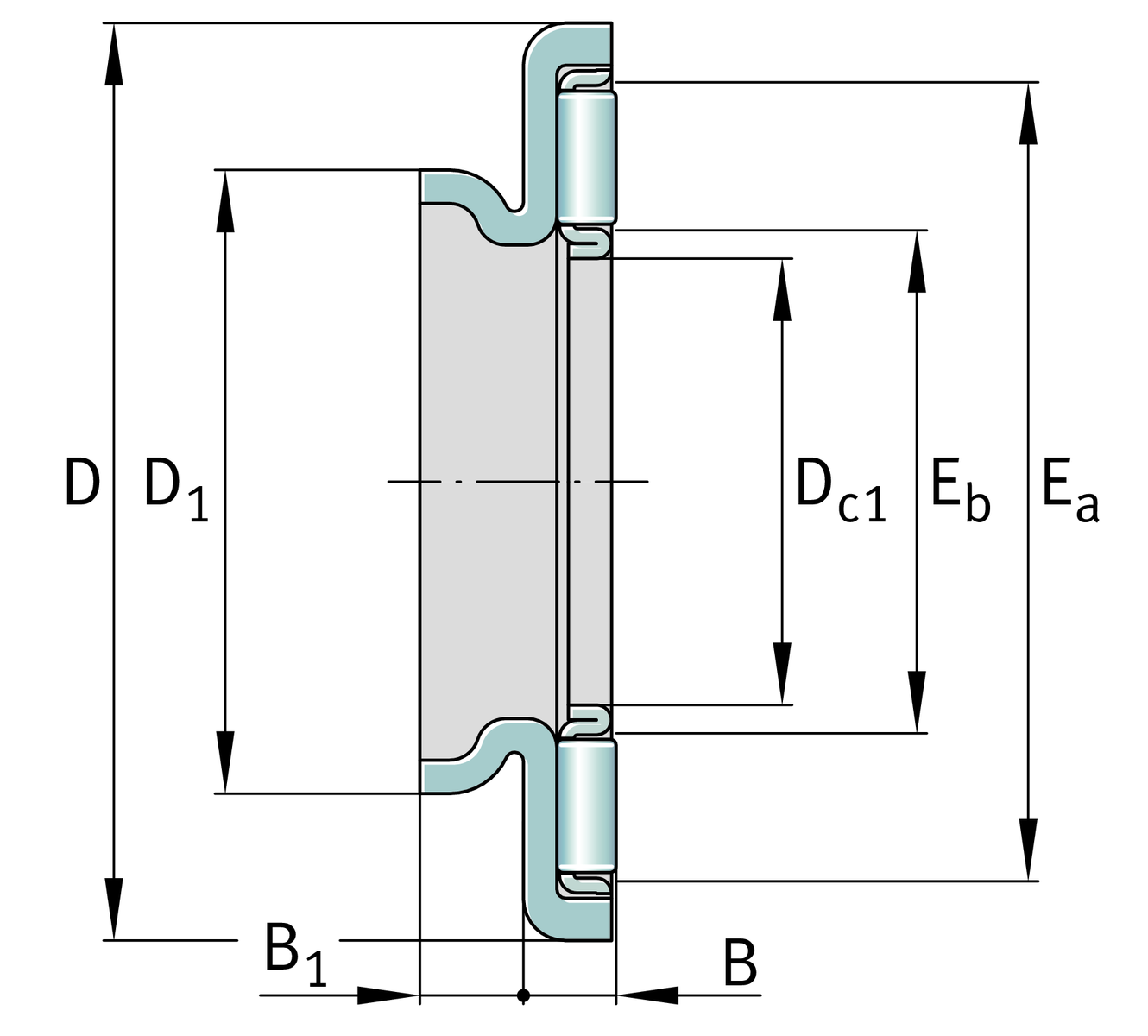

Main Dimensions & Performance Data
| Dc1 | 40 mm | Bore diameter cage |
| D | 63 mm | Outside diameter bearing washer |
| B | 4.2 mm | Height bearing |
| B1 | 4 mm | Height centering collar |
| D1 | 47 mm | Outside diameter centering collar |
| Ea | 58 mm | Raceway dimension |
| Eb | 45 mm | Raceway dimension |
| C | 28,000 N | Basic dynamic load rating, axial |
| C0a | 114,000 N | Basic static load rating, axial |
| cua | 12,100 N | Fatigue load limit, axial |
| nG | 5,800 1/min | Limiting speed |
| n ϑr | 2,800 1/min | Reference speed |
| ≈m | 40 g | Weight |
Additional information
AS4060 | Axial bearing washer | |
HK4018-RS | Drawn cup needle roller bearings turned | |
HK4016 | Drawn cup needle roller bearings | |
HK4020 | Drawn cup needle roller bearings | |
HK4012 | Drawn cup needle roller bearings for radial bearing arrangement | |
BK4020 | Needle bush | |
NKIS25 | Needle roller bearings with inner ring | |
NA4906 | Needle roller bearings with inner ring | |
NA6906 | Needle roller bearings with inner ring | |
NKI32/20 | Needle roller bearings with inner ring | |
NKI32/30 | Needle roller bearings with inner ring | |
NK37/20 | Needle roller bearings with out inner ring | |
NK37/30 | Needle roller bearings with out inner ring | |
NKS32 | Needle roller bearings with out inner ring | |
RNA4906 | Needle roller bearings with out inner ring | |
RNA6906 | Needle roller bearings with out inner ring |
