RGLCTEA40-XL
Flanged housing unit RGLCTEA40-XL
Thêm vào yêu cầu báo giá

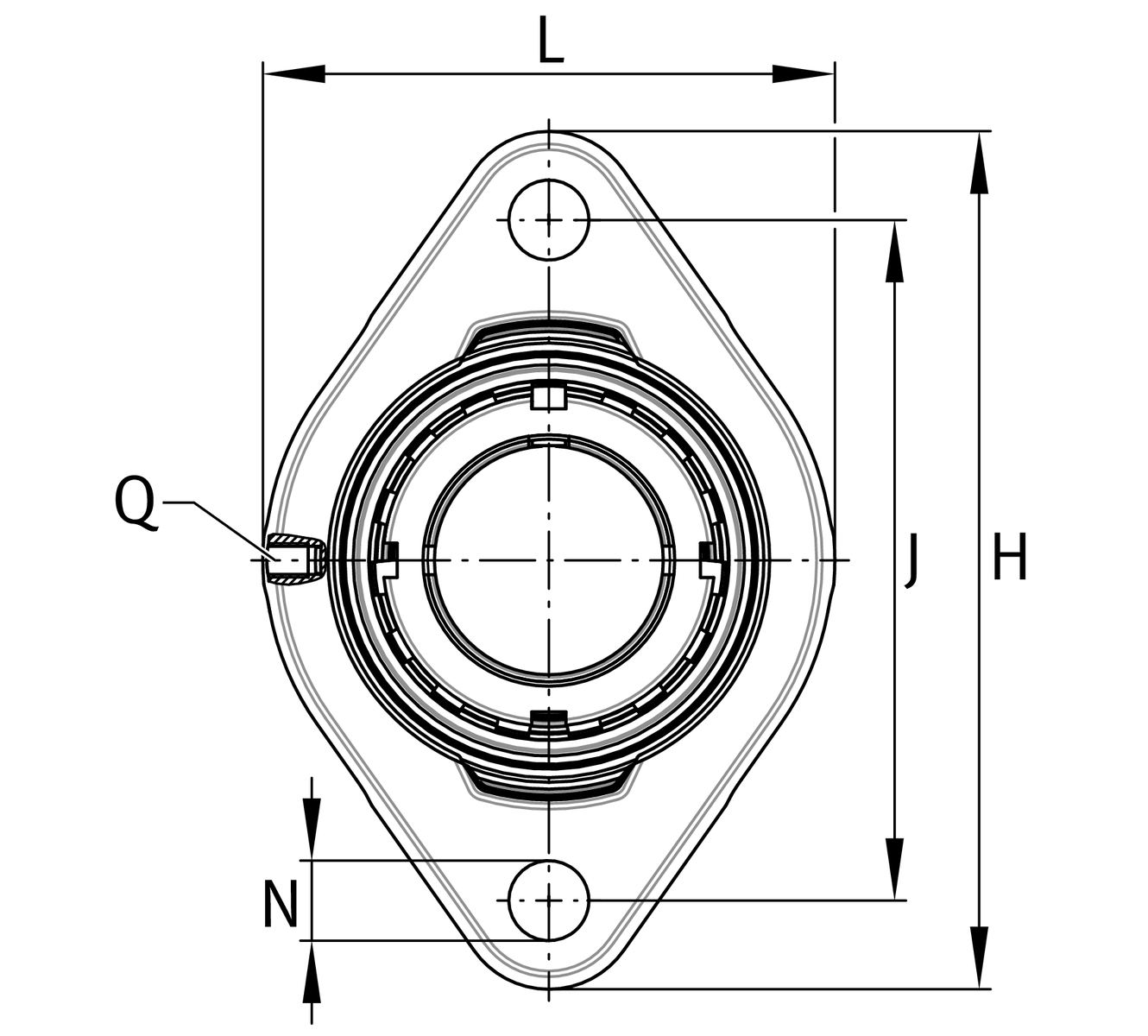

Main Dimensions & Performance Data
d
40 mm
Bore diameter
L
100 mm
Flange width
H
150 mm
Height flange
U
44.3 mm
Total height unit
Cr
31,000 N
Basic dynamic load rating, radial
C0r
19,700 N
Basic static load rating, radial
≈m
1.32 kg
Weight

Mounting dimensions
J
119 mm
Distance fixing bore
N
14 mm
Fixing bore

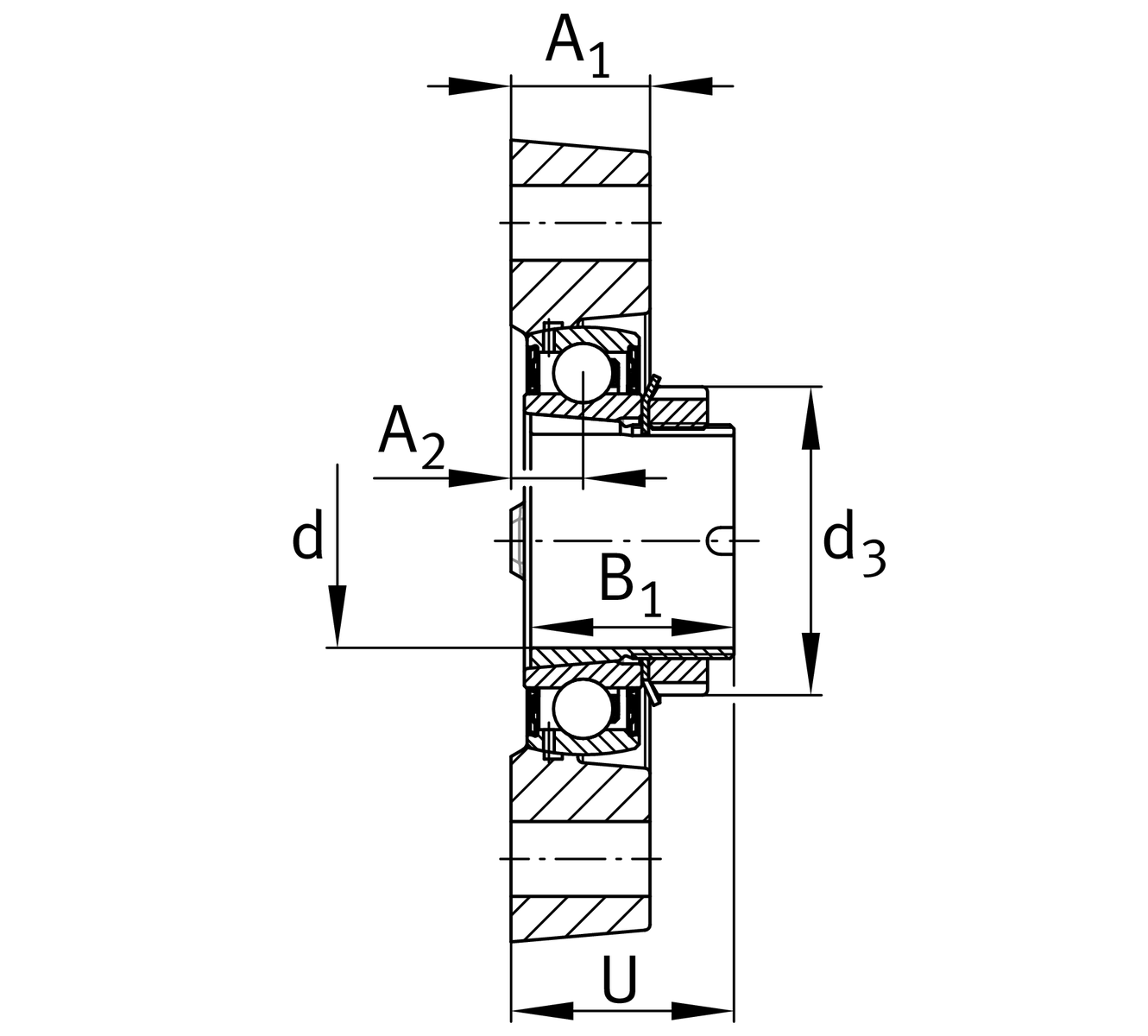

Dimensions
A1
26 mm
Thickness of flange
A2
13.5 mm
Distance raceway
B1
38 mm
Locking collar total width
Q
M6
Connection thread for lubrication
d3
58 mm
Outside diameter eccentric locking collar

Additional information
GEHGLCTE08-GG
Housing
GSH40-XL-2RSR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
