RGLCTEA30-N
Flanged housing unit RGLCTEA30-N
Thêm vào yêu cầu báo giá

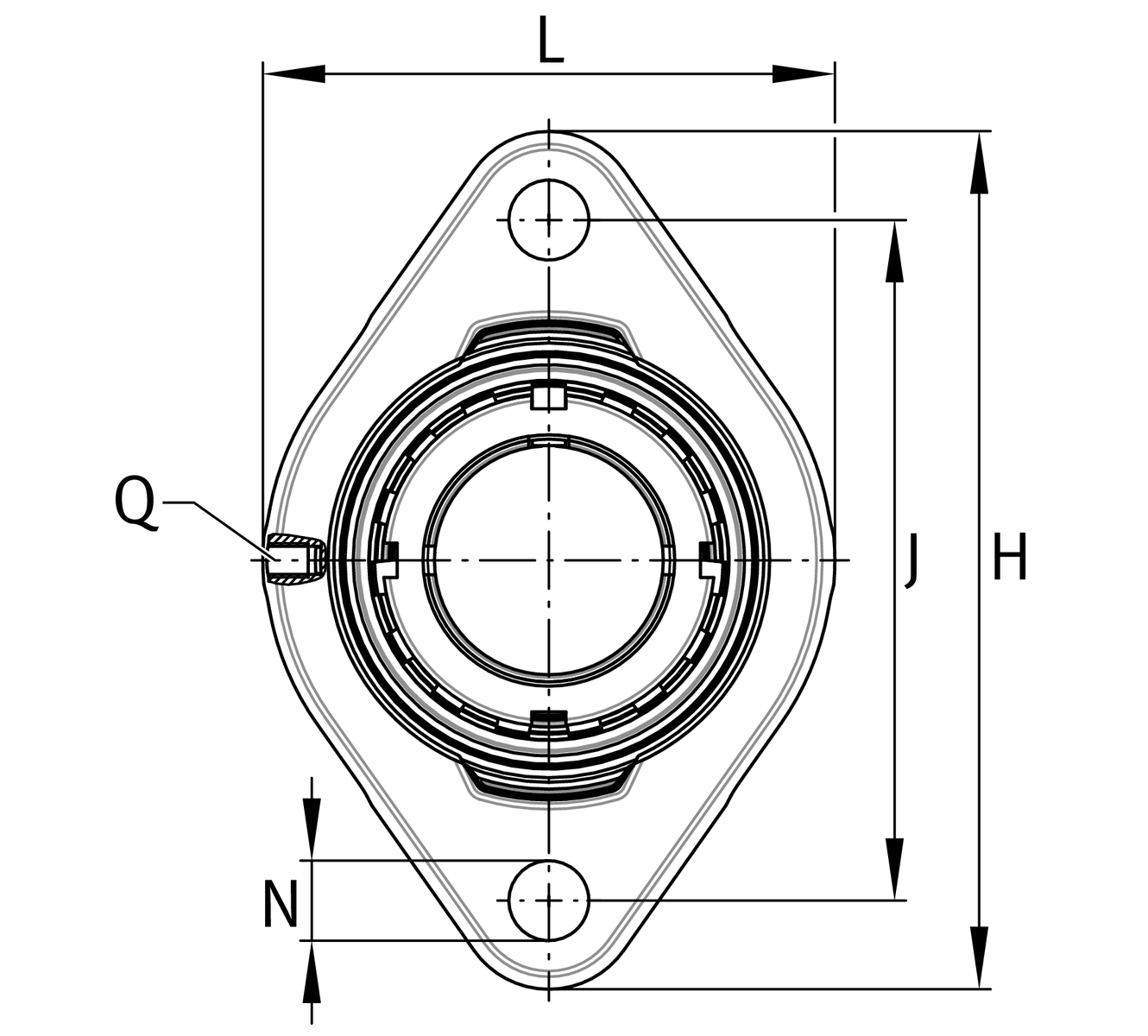

Main Dimensions & Performance Data
d
30 mm
Bore diameter
L
84 mm
Flange width
H
112.5 mm
Height flange
U
36.7 mm
Total height unit
Cr
18,900 N
Basic dynamic load rating, radial
C0r
11,300 N
Basic static load rating, radial
Cur
600 N
Fatigue load limit, radial
≈m
0.7 kg
Weight

Mounting dimensions
J
90.5 mm
Distance fixing bore
N
11.5 mm
Fixing bore
n
2
Number of screwing holes

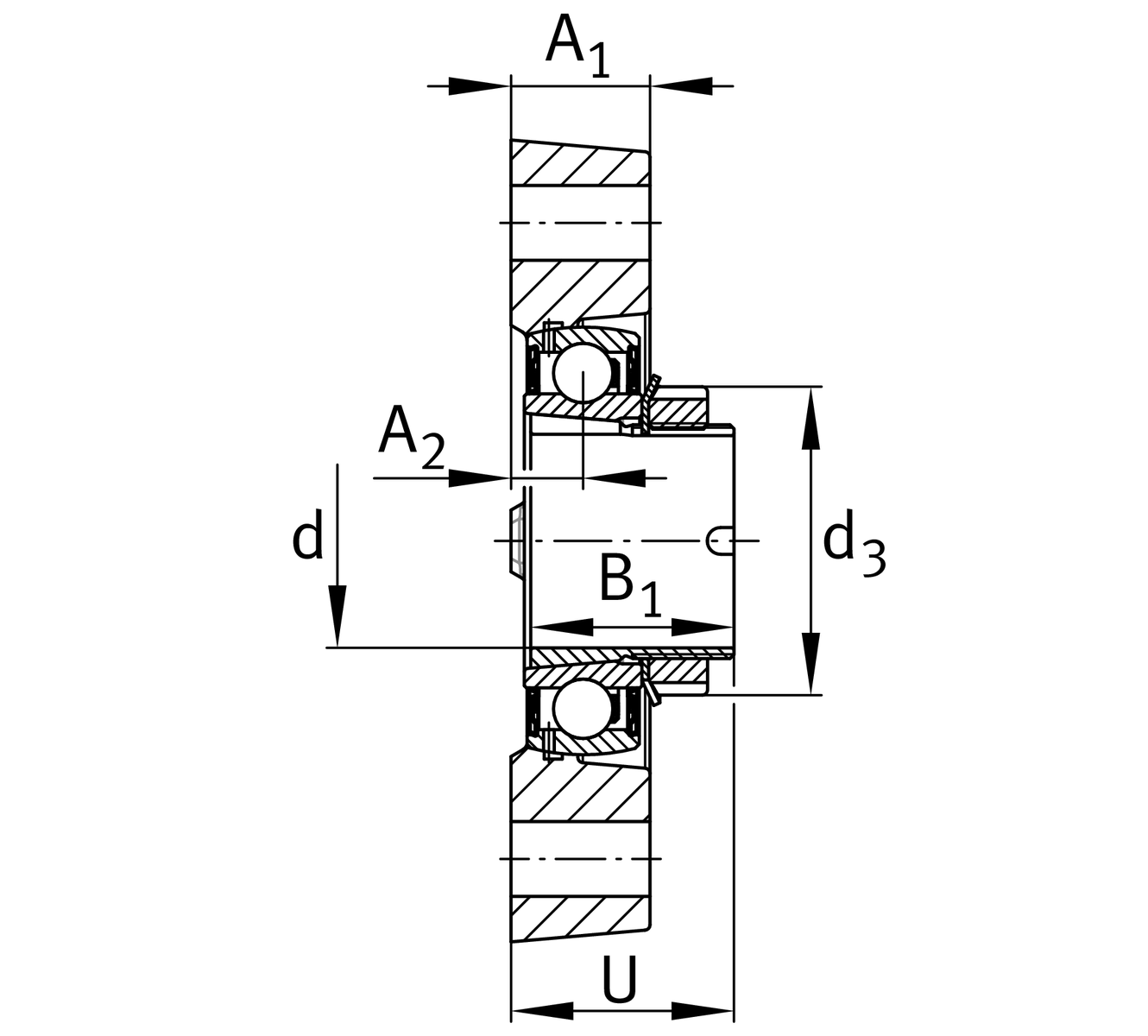

Dimensions
A1
22.5 mm
Thickness of flange
A2
12.75 mm
Distance raceway
B1
32 mm
Locking collar total width
Q
M6
Connection thread for lubrication

Additional information
GEHGLCTE06-GG-N
Housing
GSH30-XL-2RSR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
