RGLCTEA25-XL-FA125-SML
Flanged housing unit RGLCTEA25-XL-FA125-SML
Thêm vào yêu cầu báo giá

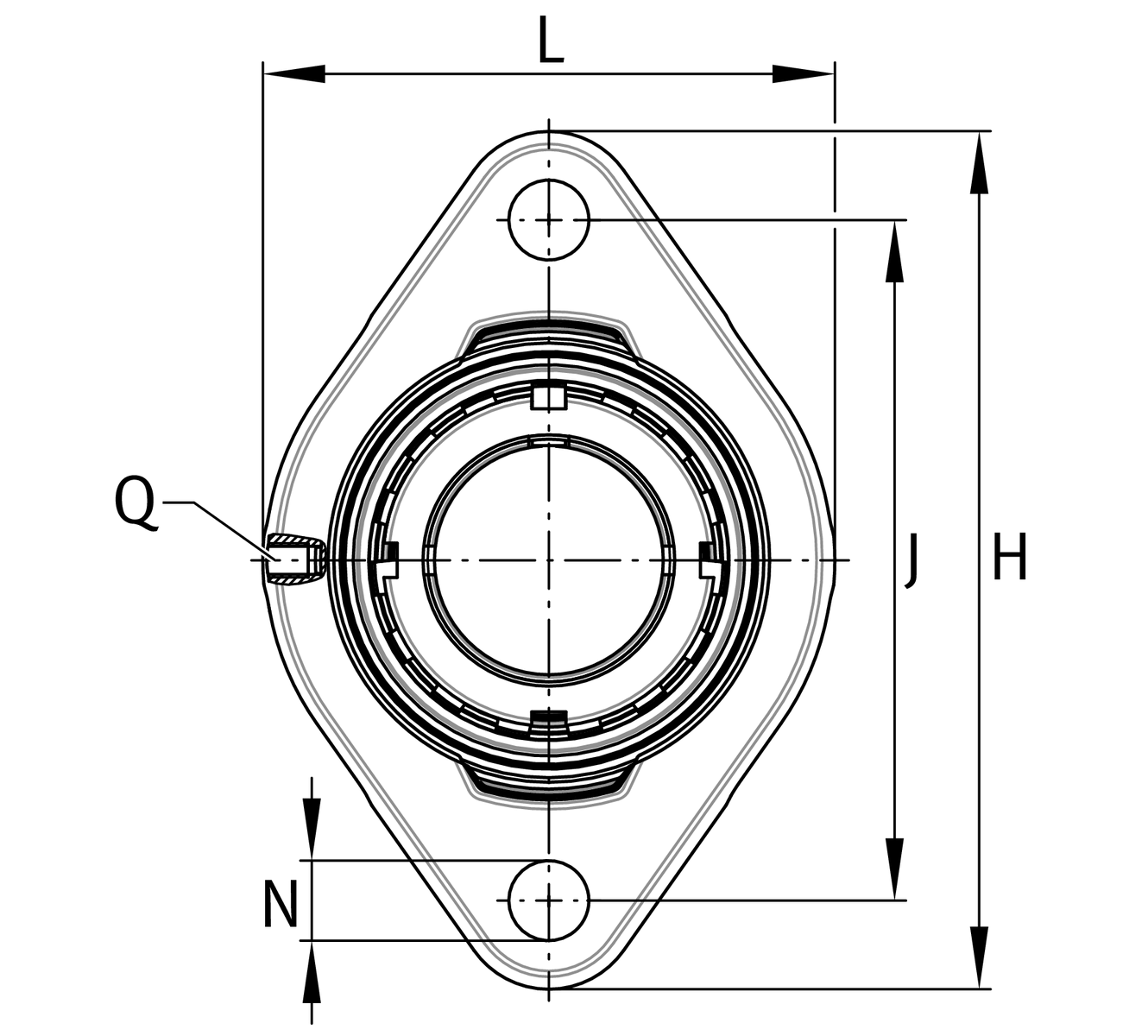

Main Dimensions & Performance Data
d
25 mm
Bore diameter
L
71 mm
Flange width
H
97 mm
Height flange
U
30.7 mm
Total height unit
Cr
14,400 N
Basic dynamic load rating, radial
C0r
8,100 N
Basic static load rating, radial
Cur
410 N
Fatigue load limit, radial
≈m
0.44 kg
Weight

Mounting dimensions
J
76.2 mm
Distance fixing bore
N
9 mm
Fixing bore
n
2
Number of screwing holes

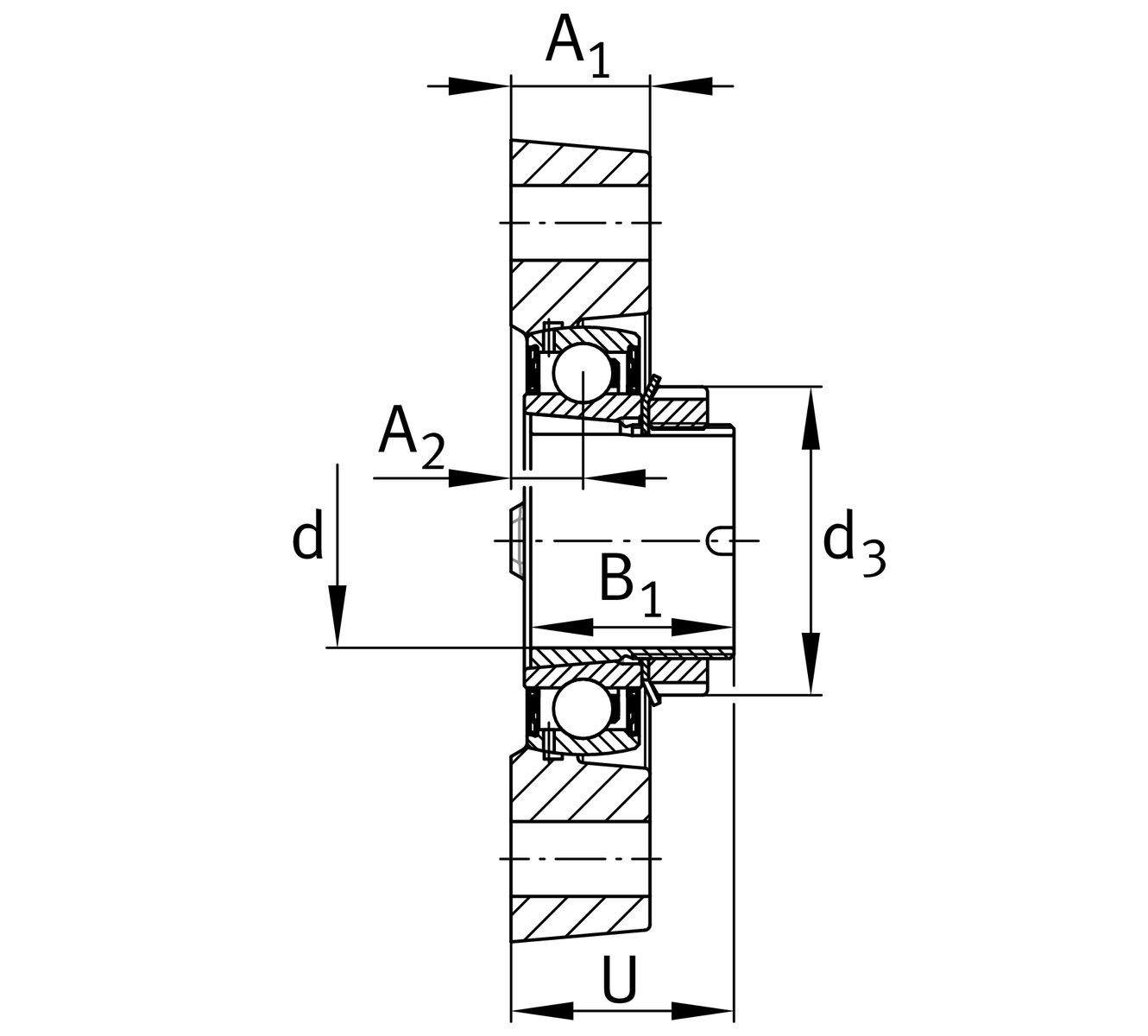

Dimensions
A1
19.5 mm
Thickness of flange
A2
9.9 mm
Distance raceway
B1
28 mm
Locking collar total width
Q
M6
Connection thread for lubrication
d3
38 mm
Outside diameter eccentric locking collar

Additional information
GEHGLCTE05-GG-FA125.1-SML
Housing
GSH25-XL-2RSR-B-FA125
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
Manufacturing instructionFA125Unit with Corrotect coating, corrosion-resistant
Swivel torqueSMLLow swivel torque
