RHE20-XL

Take-up housing unit RHE20-XL

Thêm vào yêu cầu báo giá

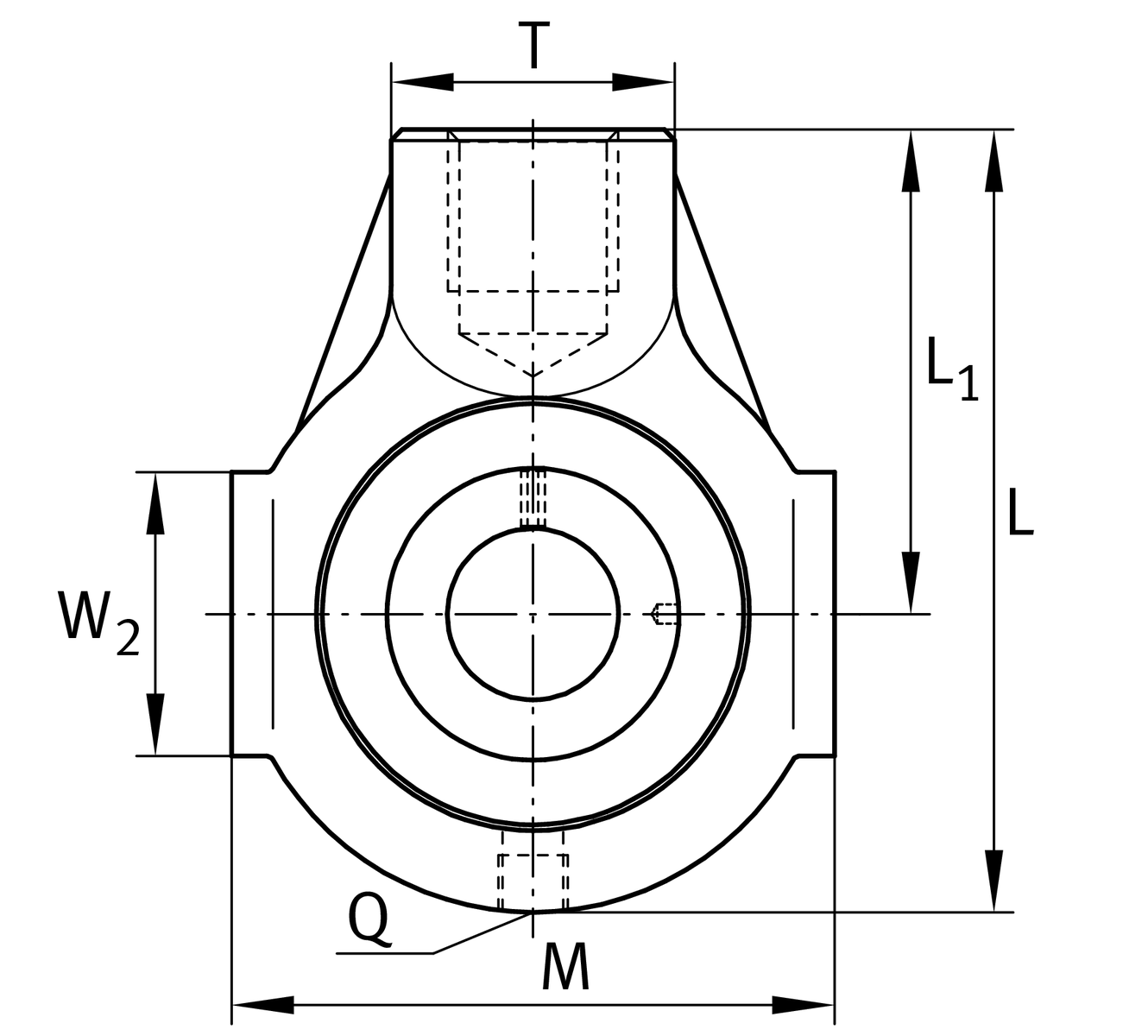

Main Dimensions & Performance Data

d	20 mm	Bore diameter
L	91 mm	Length total
M	65 mm	Housing total width
A₂	25 mm	Width housing
≈m	0.6 kg	Weight

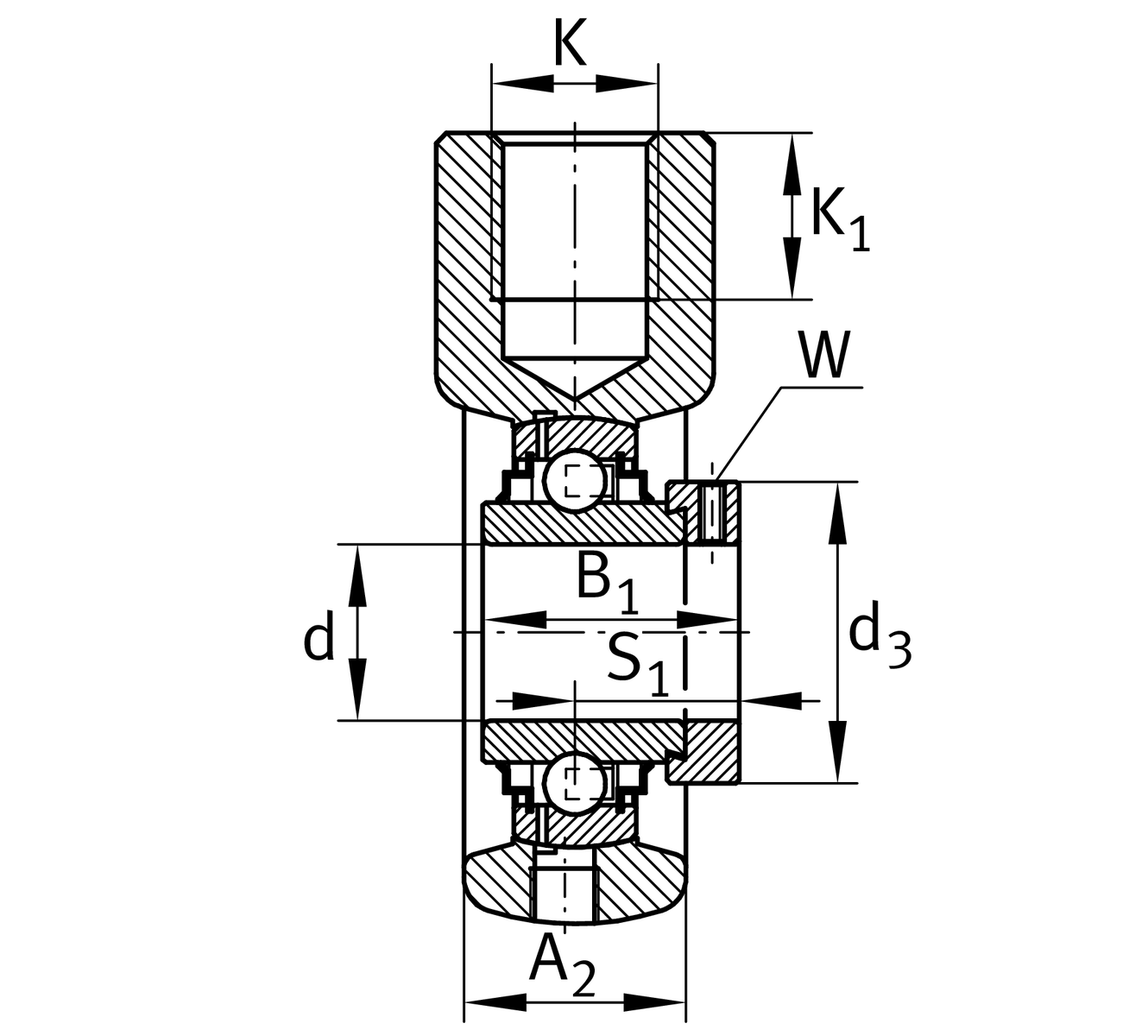

Mounting dimensions

K	M16	Thread fixing bore
K₁	21 mm	Thread depth

Dimensions

L₁	58 mm	Distance shaft axis
T	30 mm	Height housing fixing side
W₂	38 mm	Length of guidance face
Q	M6	Connection thread for lubrication

Additional information

	HE04	Housing
	GE20-XL-KRR-B	Bearing designation

Temperature range

T_min	-20 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.

Your current product variant

Material	GG	Grey cast iron
