H10
Flat cage H10
Thêm vào yêu cầu báo giá

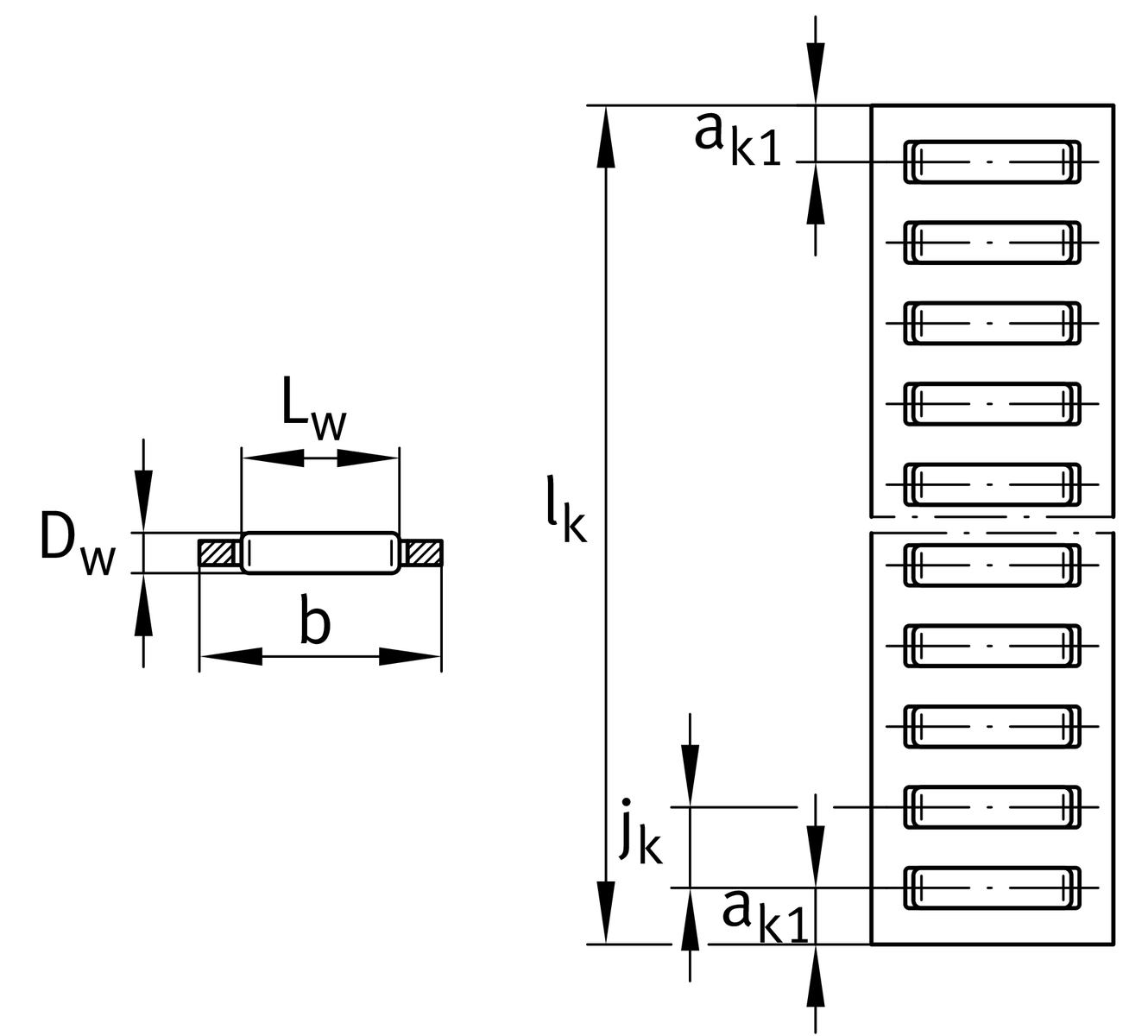

Main Dimensions & Performance Data
lk max
4,000 mm
Max. length 1
DW
2 mm
Rolling element diameter
b
10 mm
C
21,600 N
Load capacity dyn. 2
C0
62,800 N
Load capacity stat. 2
≈m
63 g/m
Weight

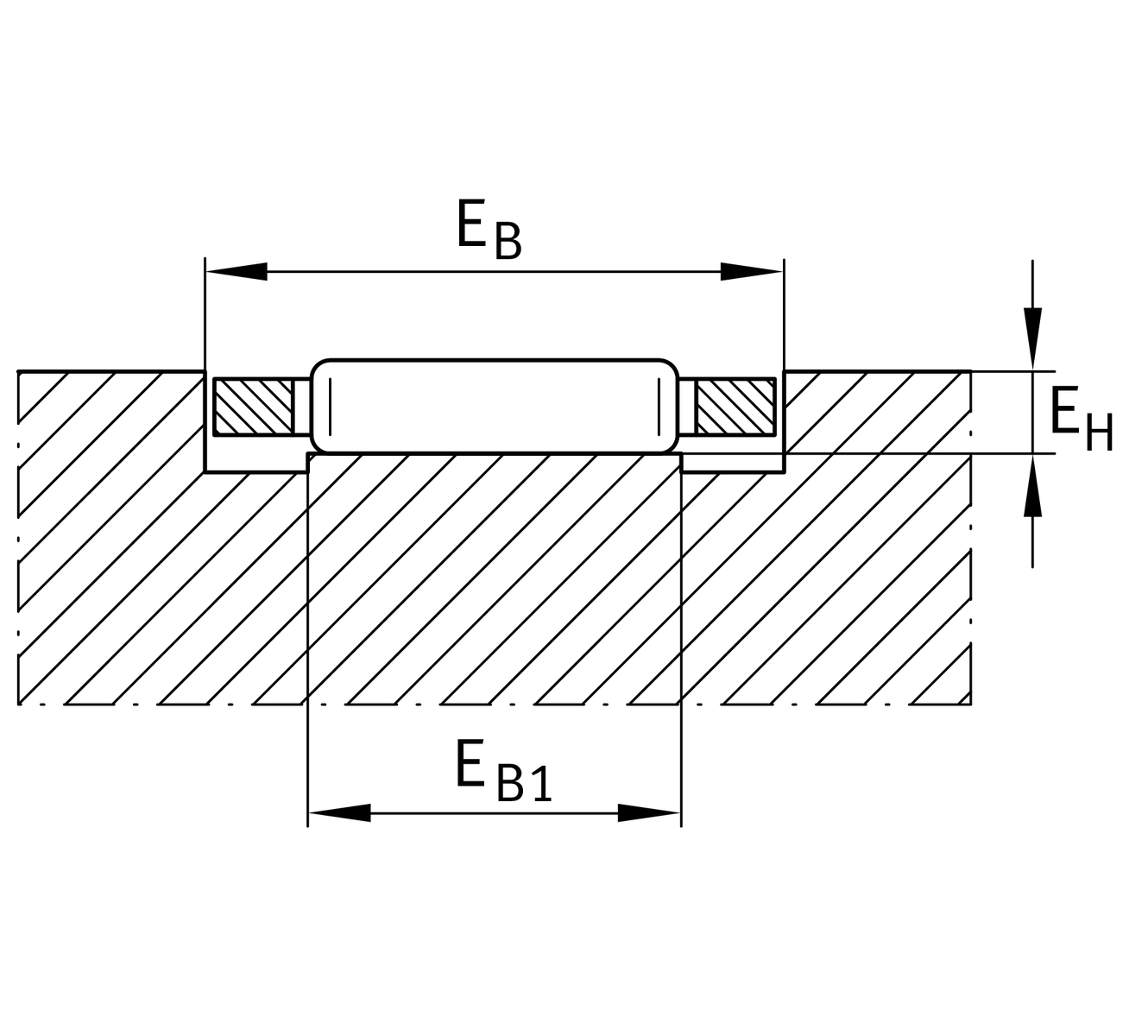

Mounting dimensions
EB
10.3 mm
Tol EB
+0,2
tolerance
EB1
7 mm
min.
EH
1.7 mm

Dimensions
LW
6.8 mm
Length rolling element
jk
4.5 mm
ak1
3.5 mm

Related products
J3525, S3525
Associated rail

Your current product variant
Size code10
