GYE90-XL-KRR-B
Radial insert ball bearing GYE90-XL-KRR-B
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
90 mm
Bore diameter
DSP
160 mm
Outside diameter
B
96 mm
Width
Cur
2,700 N
Fatigue load limit, radial
Cr
106,000 N
Basic dynamic load rating, radial
C0r
72,000 N
Basic static load rating, radial
≈m
3.73 kg
Weight

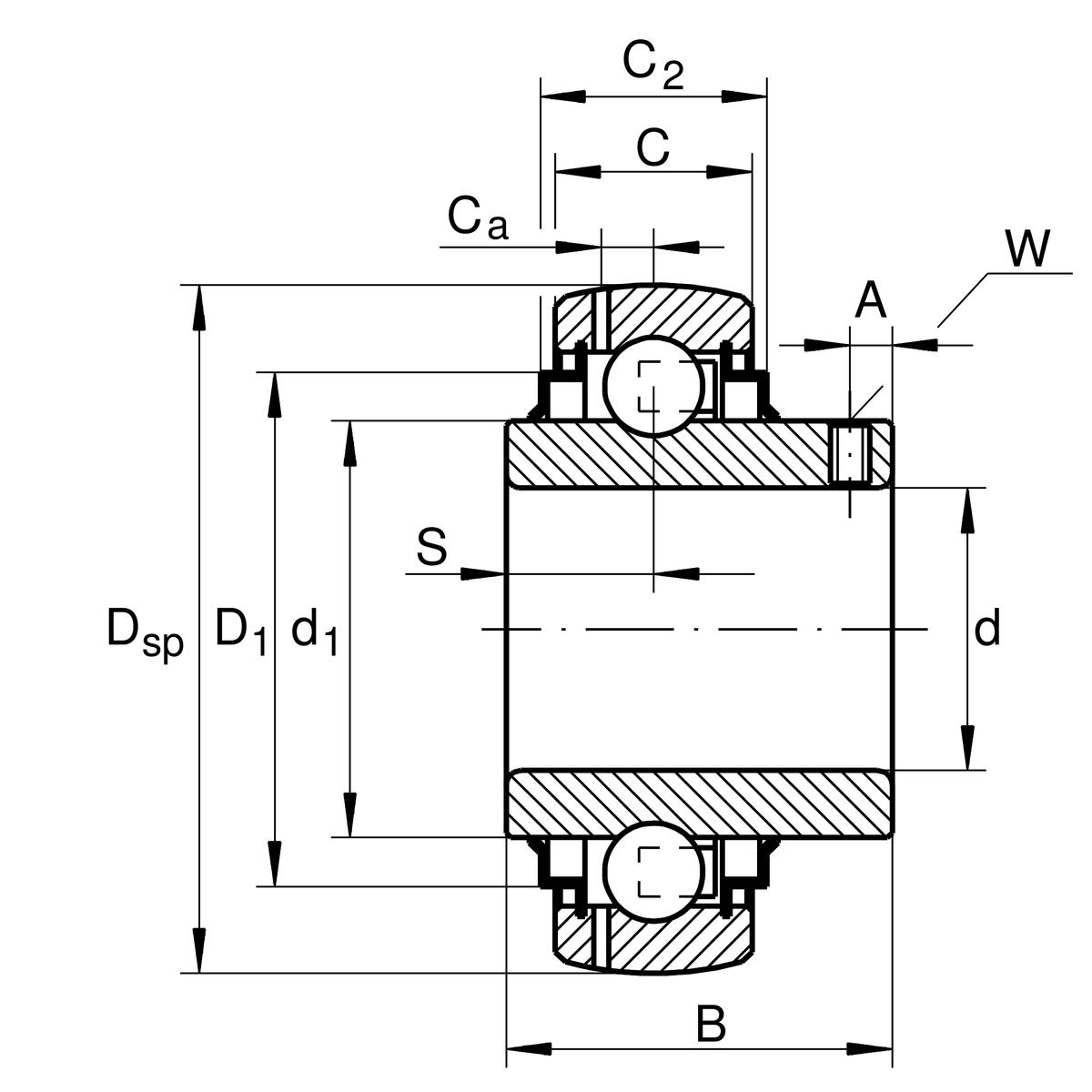

Dimensions
C
32 mm
Width, outer ring
C2
35.5 mm
Sealing total width
S
39.7 mm
Distance raceway
d1
109.4 mm
Rib diameter inner ring
D1
138 mm
Outside diameter seal
Ca
10 mm
Distance to lubrication hole
A
12 mm
Distance thread
W
6 mm
Width of flats

Calculation factors
f0
14.6
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
