FAG INA Schaeffler
INA
H15
Flat cage H15
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
lk max
4,000 mm
Max. length 1
DW
2.5 mm
Rolling element diameter
b
15 mm

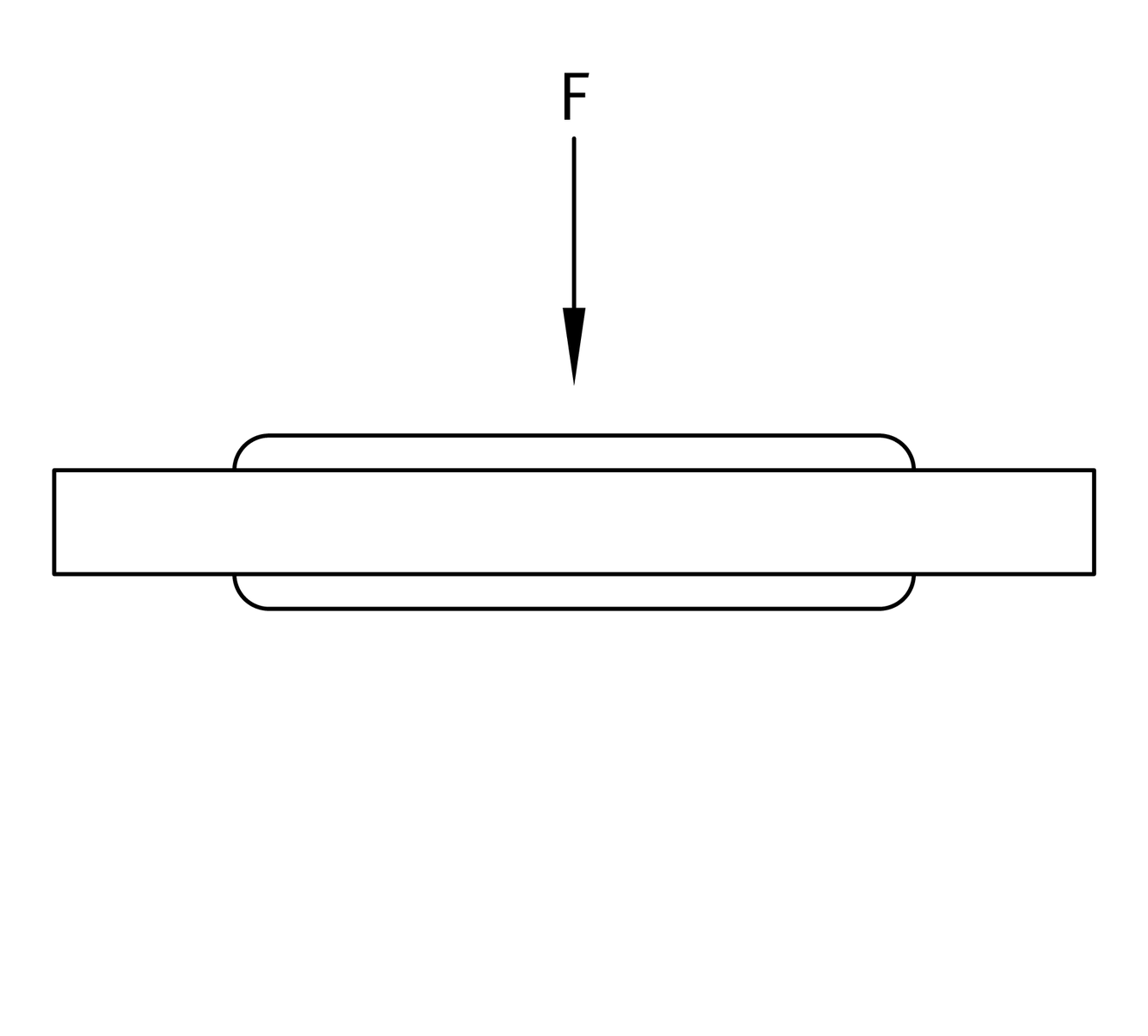

C
35,800 N
Load capacity dyn. 2
C0
103,800 N
Load capacity stat. 2
≈m
120 g/m
Weight

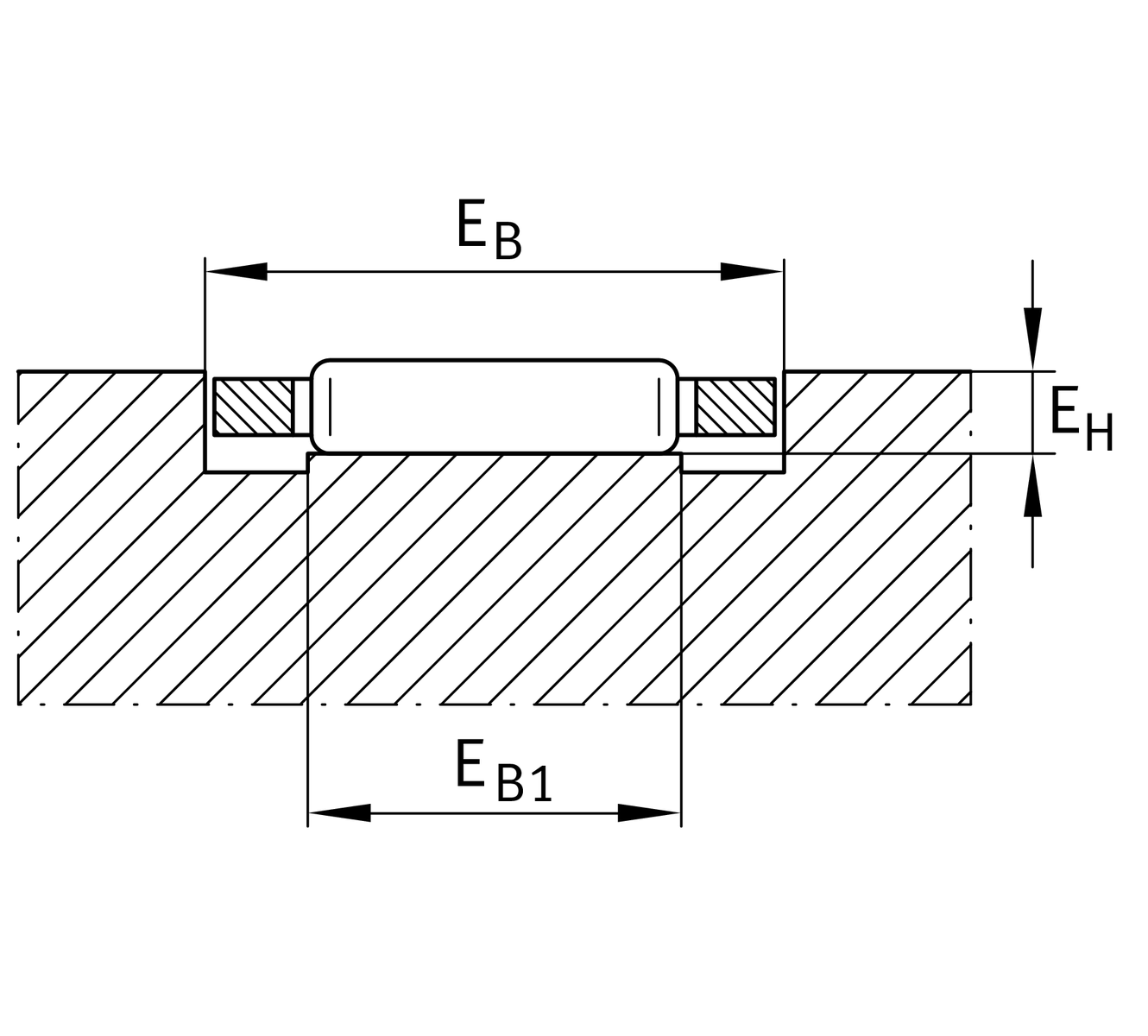

Mounting dimensions
EB
15.3 mm
Tol EB
+0,2
tolerance
EB1
10 mm
min.
EH
2.2 mm

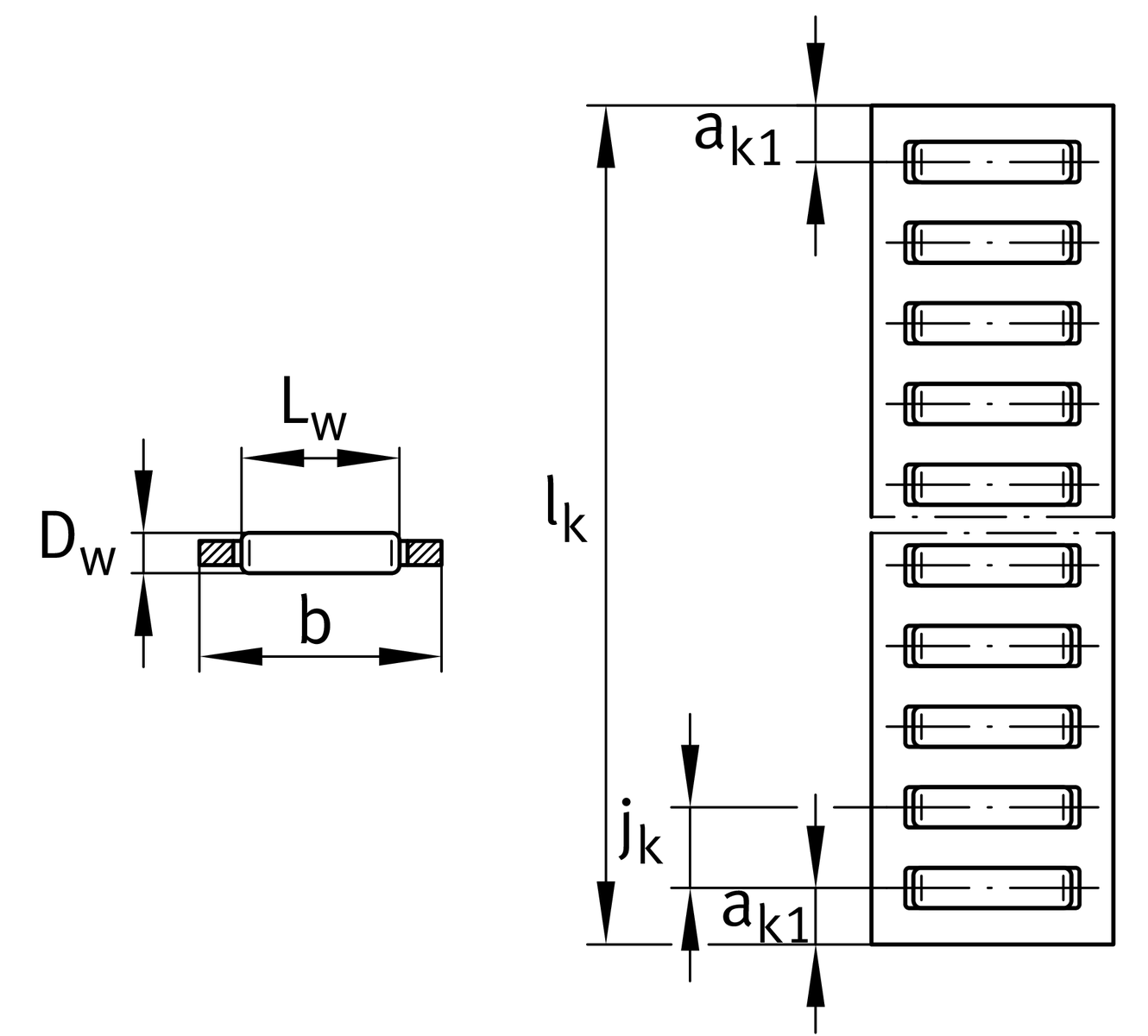

Dimensions
LW
9.8 mm
Length rolling element
jk
5 mm
ak1
3.5 mm

Related products
J4025, S4025, J5025, S5025
Associated rail

Your current product variant
Size code15
