BE35-XL
Radial insert ball bearing BE35-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
35 mm
Bore diameter
D
80 mm
Outside diameter
Cr
25,500 N
Basic dynamic load rating, radial
C0r
15,300 N
Basic static load rating, radial
Cur
800 N
Fatigue load limit, radial
≈m
0.43 kg
Weight

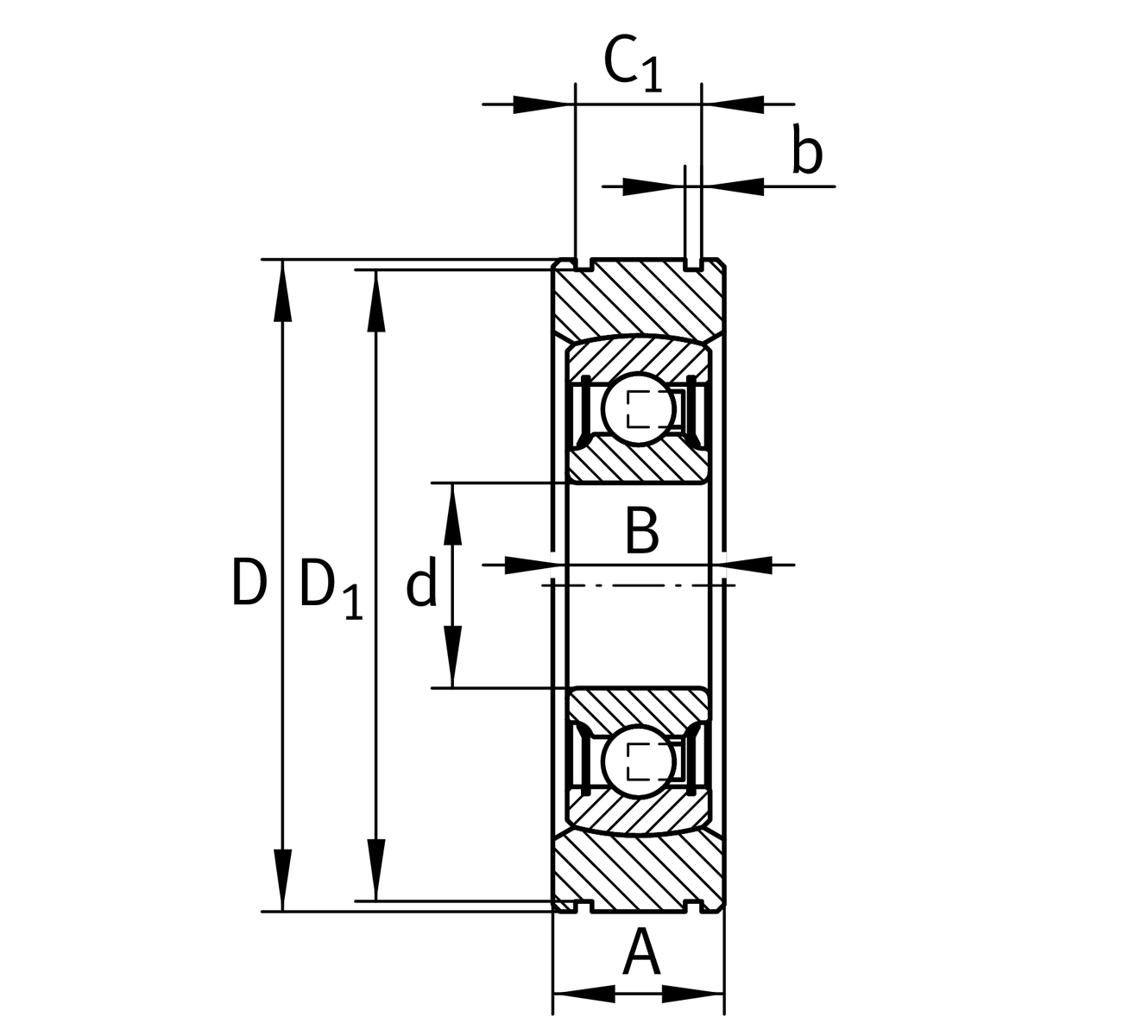

Dimensions
A
21 mm
Width, outer ring
C1
14.4 mm
Distance ring grooves
0.2 mm
Upper distance ring groove tolerance
b
1.9 mm
Width retaining slot
0.3 mm
Nut width upper tolerance
D1
76.8 mm
Diameter of groove
-0.5 mm
Nut diameter lower tolerance

Calculation factors
f0
13.8
Calculation factor

Additional information
207-XL-NPP-B
Bearing designation
