Radial insert ball bearing BE30-XL-SML

Thêm vào yêu cầu báo giá

Main Dimensions & Performance Data

d	30 mm	Bore diameter
D	72 mm	Outside diameter
C_r	19,500 N	Basic dynamic load rating, radial
C_0r	11,300 N	Basic static load rating, radial
C_ur	590 N	Fatigue load limit, radial
≈m	0.36 kg	Weight

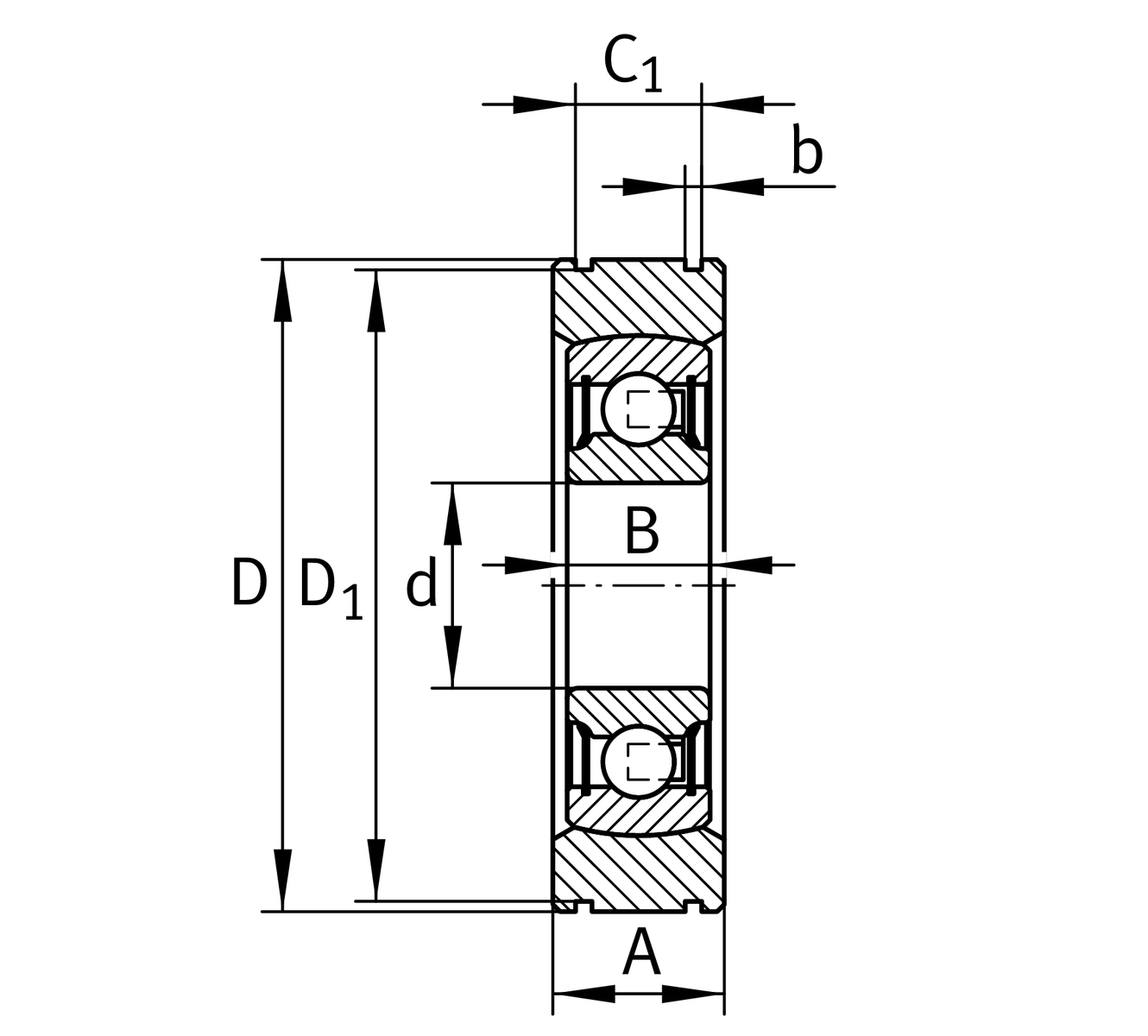

Dimensions

A	21 mm	Width, outer ring
C₁	14.4 mm	Distance ring grooves
	0.2 mm	Upper distance ring groove tolerance
b	1.9 mm	Width retaining slot
	0.3 mm	Nut width upper tolerance
D₁	68.8 mm	Diameter of groove
	-0.5 mm	Nut diameter lower tolerance

Calculation factors

f₀	13.8	Calculation factor

Additional information

	206-XL-NPP-B	Bearing designation
