BE40-XL
Radial insert ball bearing BE40-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
40 mm
Bore diameter
D
90 mm
Outside diameter
Cr
32,500 N
Basic dynamic load rating, radial
C0r
19,800 N
Basic static load rating, radial
Cur
1,030 N
Fatigue load limit, radial
≈m
0.6 kg
Weight

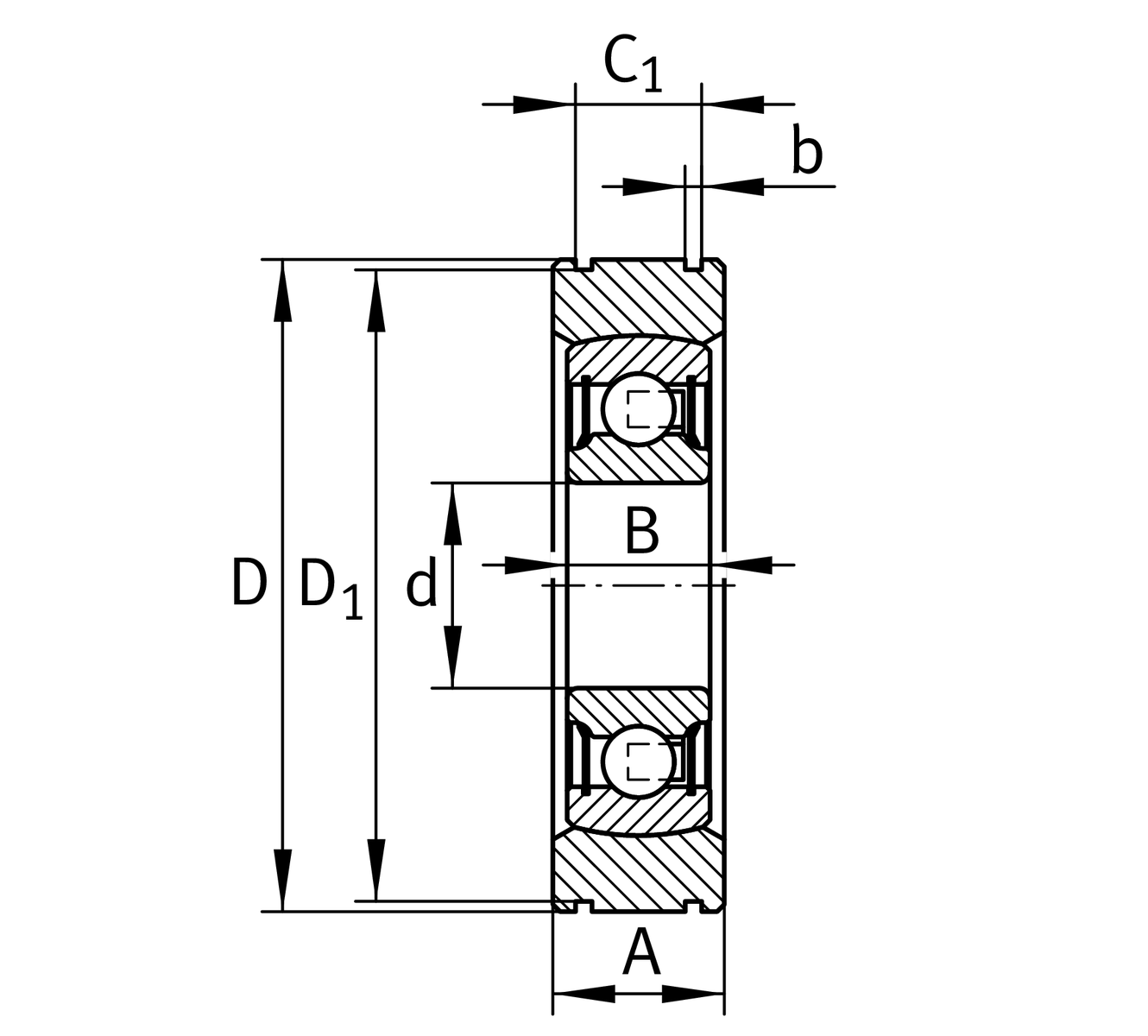

Dimensions
A
25 mm
Width, outer ring
C1
15.4 mm
Distance ring grooves
0.2 mm
Upper distance ring groove tolerance
b
2.7 mm
Width retaining slot
0.3 mm
Nut width upper tolerance
D1
86.8 mm
Diameter of groove
-0.5 mm
Nut diameter lower tolerance

Calculation factors
f0
13.6
Calculation factor

Additional information
208-XL-NPP-B
Bearing designation
