Flanged housing unit RMEO35-XL

Thêm vào yêu cầu báo giá

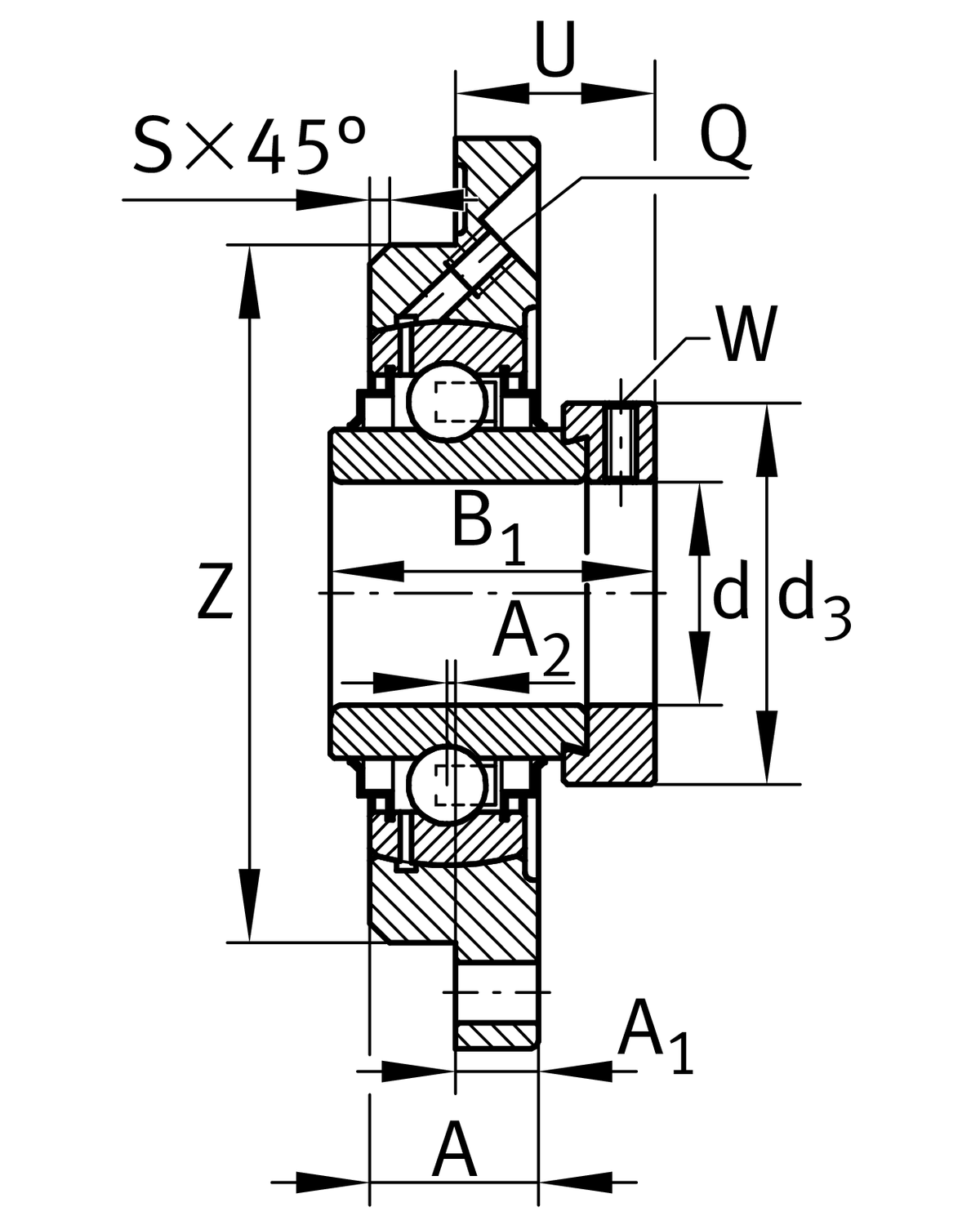

Main Dimensions & Performance Data

d	35 mm	Bore diameter
H	174 mm	Height flange
B₁	51.6 mm	Locking collar total width
U	35.35 mm	Total height unit
C_r	39,000 N	Basic dynamic load rating, radial
C_0r	20,900 N	Basic static load rating, radial
C_ur	1,090 N	Fatigue load limit, radial
≈m	2.5 kg	Weight

Mounting dimensions

J	141 mm	Pitch circle diameter (holes)
N	19 mm	Fixing bore
Z	100 mm	Diameter spigot
	h8	Diameter spigot clearance
n	4	Number of screwing holes

Dimensions

A	25 mm	Height housing
A₁	16 mm	Thickness of flange
A₂	-2 mm	Distance raceway
S	2 mm	Chamfer width
Q	M6	Connection thread for lubrication

Additional information

	1	Number of housings
	MEO07	Housing
	GNE35-XL-KRR-B	Bearing designation

Temperature range

T_min	-20 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.

Your current product variant

Material	GG	Grey cast iron
