RMEO40-XL
Flanged housing unit RMEO40-XL
Thêm vào yêu cầu báo giá

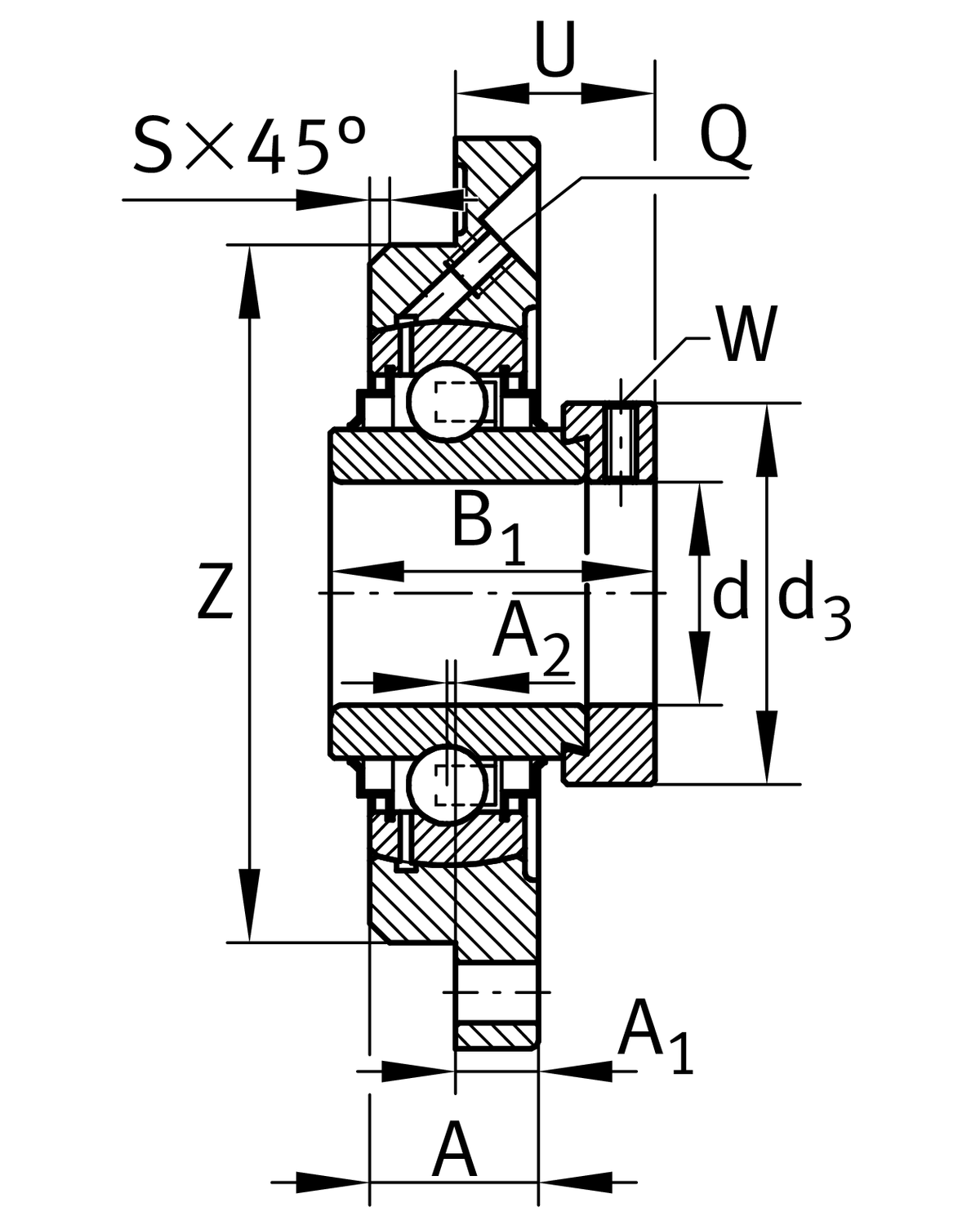

Main Dimensions & Performance Data
d
40 mm
Bore diameter
H
194 mm
Height flange
B1
54.6 mm
Locking collar total width
U
39.1 mm
Total height unit
Cr
47,000 N
Basic dynamic load rating, radial
C0r
26,000 N
Basic static load rating, radial
Cur
1,360 N
Fatigue load limit, radial
≈m
3.38 kg
Weight

Mounting dimensions
J
158 mm
Pitch circle diameter (holes)
N
19 mm
Fixing bore
Z
115 mm
Diameter spigot
h8
Diameter spigot clearance
n
4
Number of screwing holes

Dimensions
A
27 mm
Height housing
A1
17 mm
Thickness of flange
A2
-2.5 mm
Distance raceway
S
2 mm
Chamfer width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
MEO08
Housing
GNE40-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
