RMEO100-XL
Flanged housing unit RMEO100-XL
Thêm vào yêu cầu báo giá

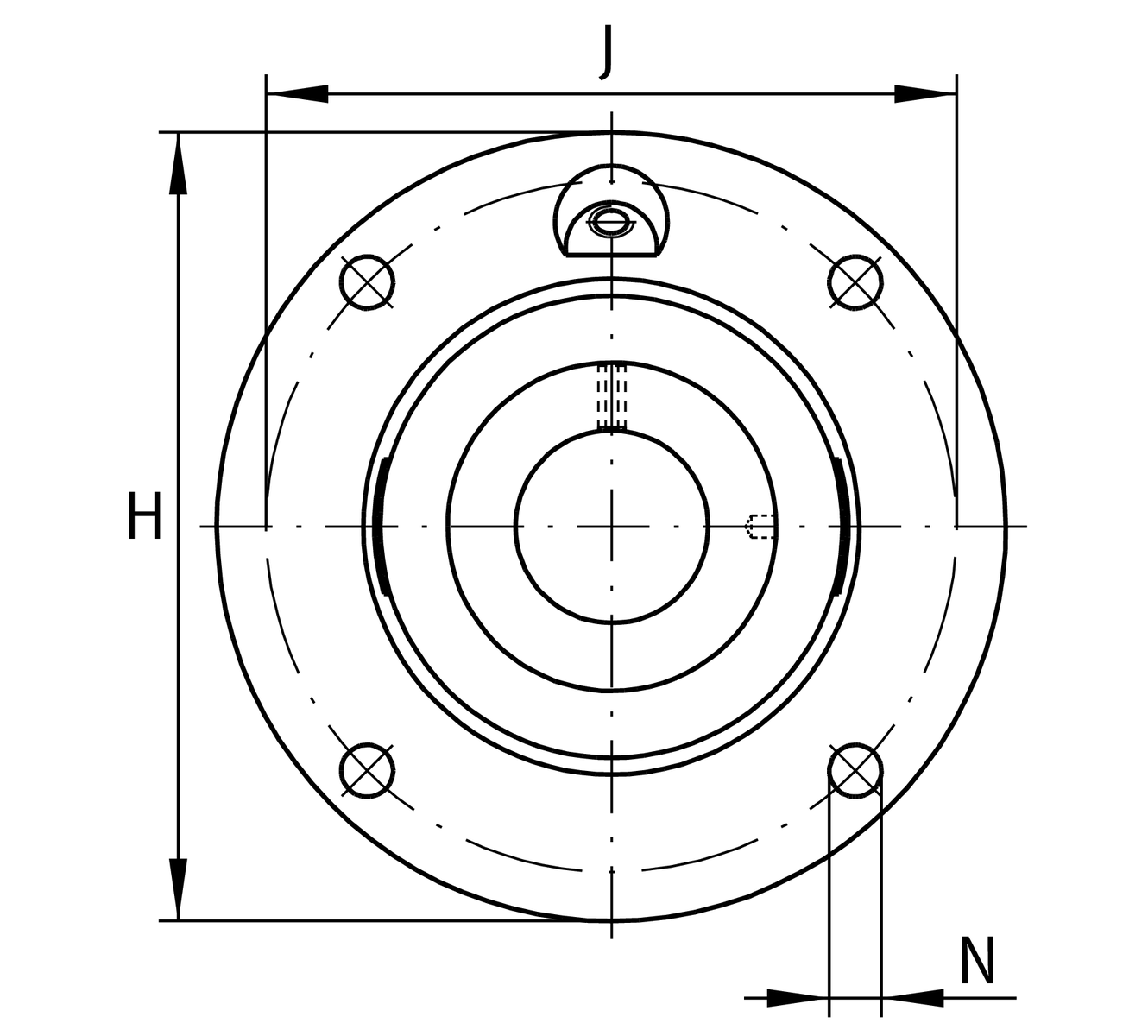

Main Dimensions & Performance Data
d
100 mm
Bore diameter
H
340 mm
Height flange
B1
109.4 mm
Locking collar total width
U
68.5 mm
Total height unit
Cr
184,000 N
Basic dynamic load rating, radial
C0r
141,000 N
Basic static load rating, radial
Cur
5,800 N
Fatigue load limit, radial
≈m
21.5 kg
Weight

Mounting dimensions
J
295 mm
Pitch circle diameter (holes)
N
26 mm
Fixing bore
Z
250 mm
Diameter spigot
h8
Diameter spigot clearance
W
6 mm
Width across flats
n
4
Number of screwing holes

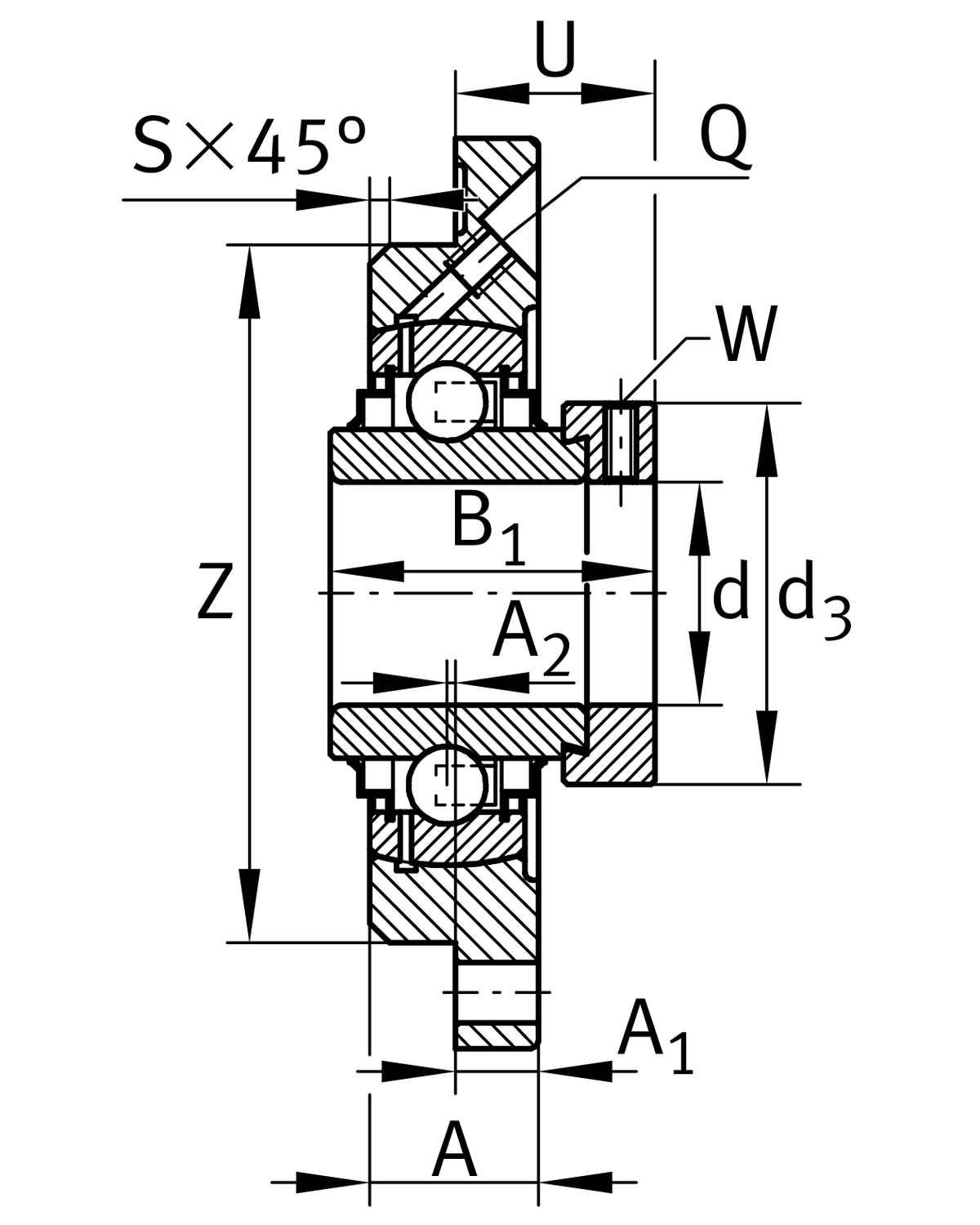

Dimensions
A
57 mm
Height housing
A1
27 mm
Thickness of flange
A2
1.5 mm
Distance raceway
S
8 mm
Chamfer width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
MEO20
Housing
GNE100-XL-KRR-B-FA107
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
