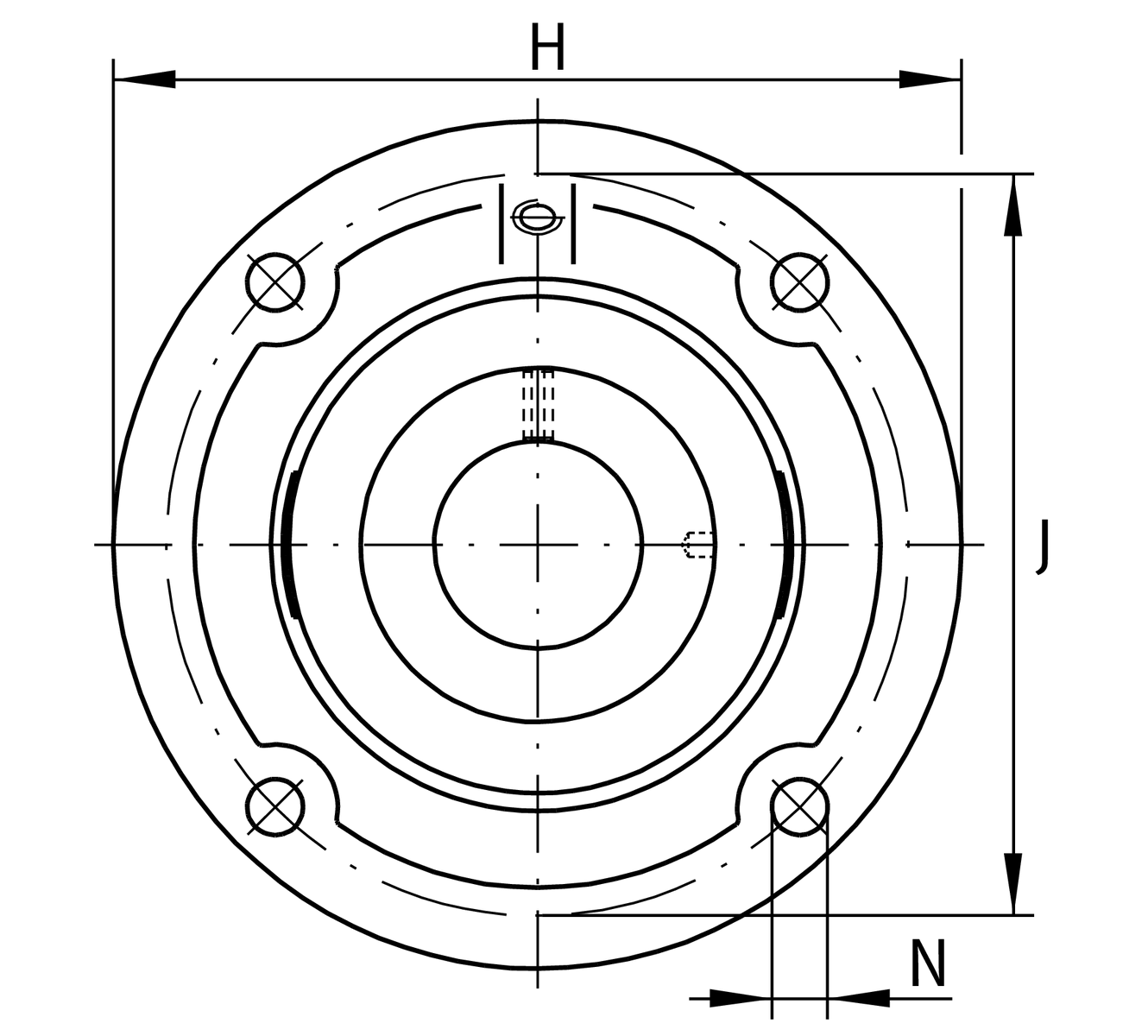

Main Dimensions & Performance Data
| d | 35 mm | Bore diameter |
| H | 135 mm | Height flange |
| H | 135 mm | Flange width |
| U | 41.3 mm | Total height unit |
| Cr | 27,500 N | Basic dynamic load rating, radial |
| C0r | 15,300 N | Basic static load rating, radial |
| Cur | 800 N | Fatigue load limit, radial |
| ≈m | 1.33 kg | Weight |
Mounting dimensions
| J | 110 mm | Pitch circle diameter (holes) |
| N | 11.5 mm | Fixing bore |
| T1 | 4 mm | Height spigot |
| Z | 90 mm | Diameter spigot |
h8 | Diameter spigot clearance | |
| W | 5 mm | Width across flats |
| n | 4 | Number of screwing holes |

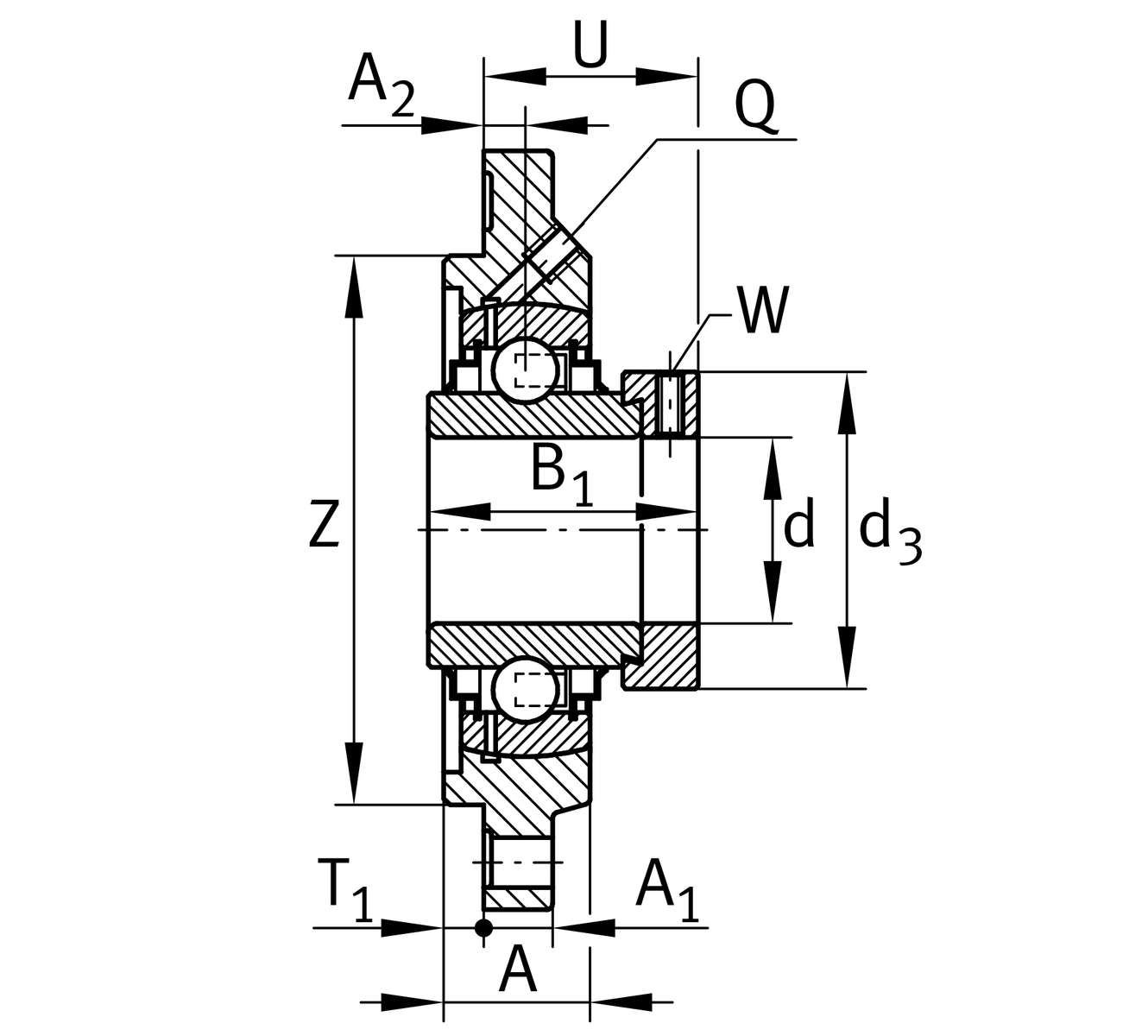

Dimensions
| A | 24.5 mm | Height housing |
| A1 | 10 mm | Thickness of flange |
| A2 | 9 mm | Distance raceway |
| B1 | 51.3 mm | Locking collar total width |
| Q | M6 | Connection thread for lubrication |
| d3 | 55 mm | Outer diameter locking collar |
Additional information
GEHFE07-GG-N | Housing | |
GE35-XL-KRR-B | Bearing designation |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Your current product variant
| Groove | N | Cast iron housing with undercut slot for end caps |
| Material | GG | Grey cast iron |
