FAG INA Schaeffler
INA
RFE35-XL
Flanged housing unit RFE35-XL
Thêm vào yêu cầu báo giá

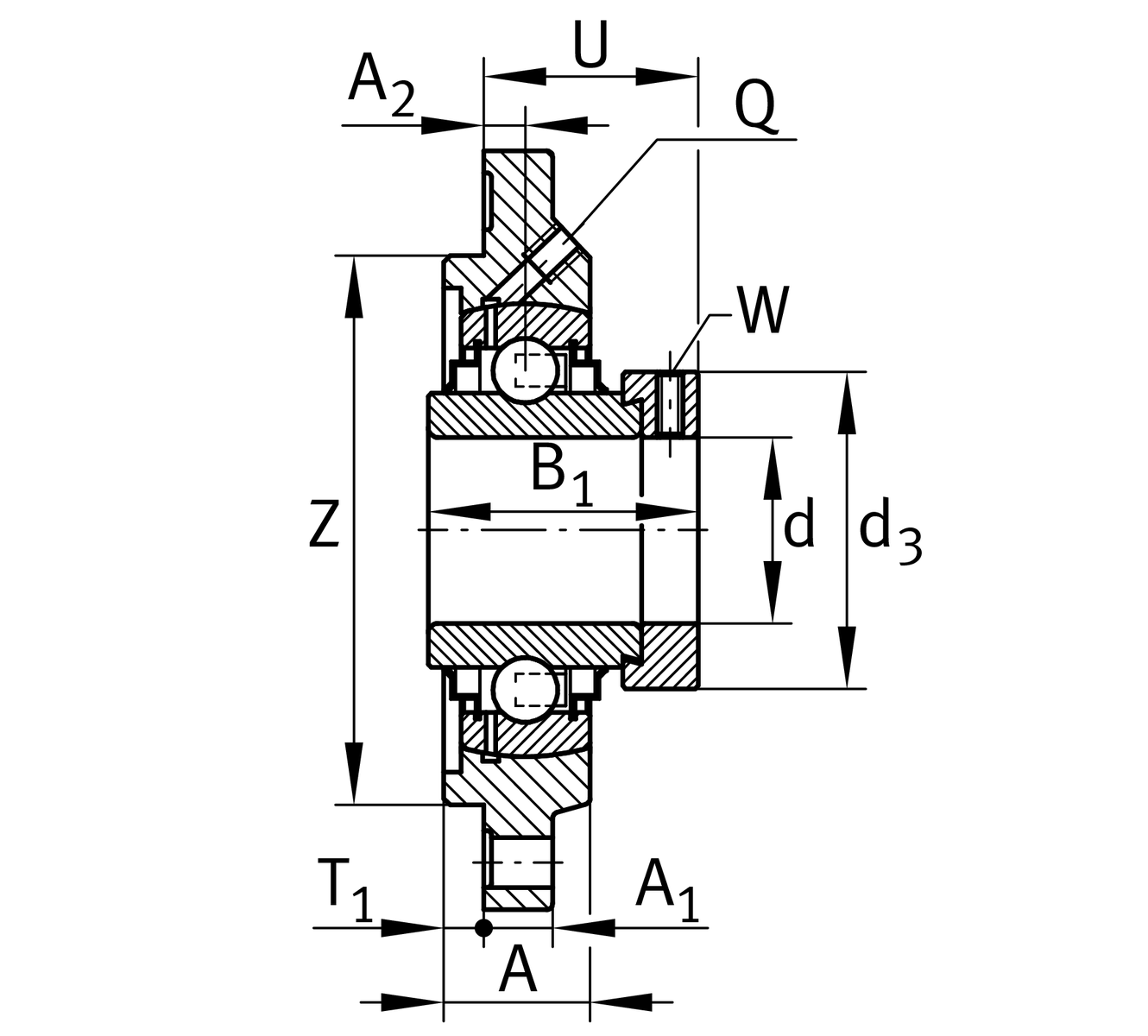

Main Dimensions & Performance Data
d
35 mm
Bore diameter
H
135 mm
Flange width
U
41.7 mm
Total height unit
Cr
25,500 N
Basic dynamic load rating, radial
C0r
15,300 N
Basic static load rating, radial
Cur
800 N
Fatigue load limit, radial
≈m
1.3 kg
Weight

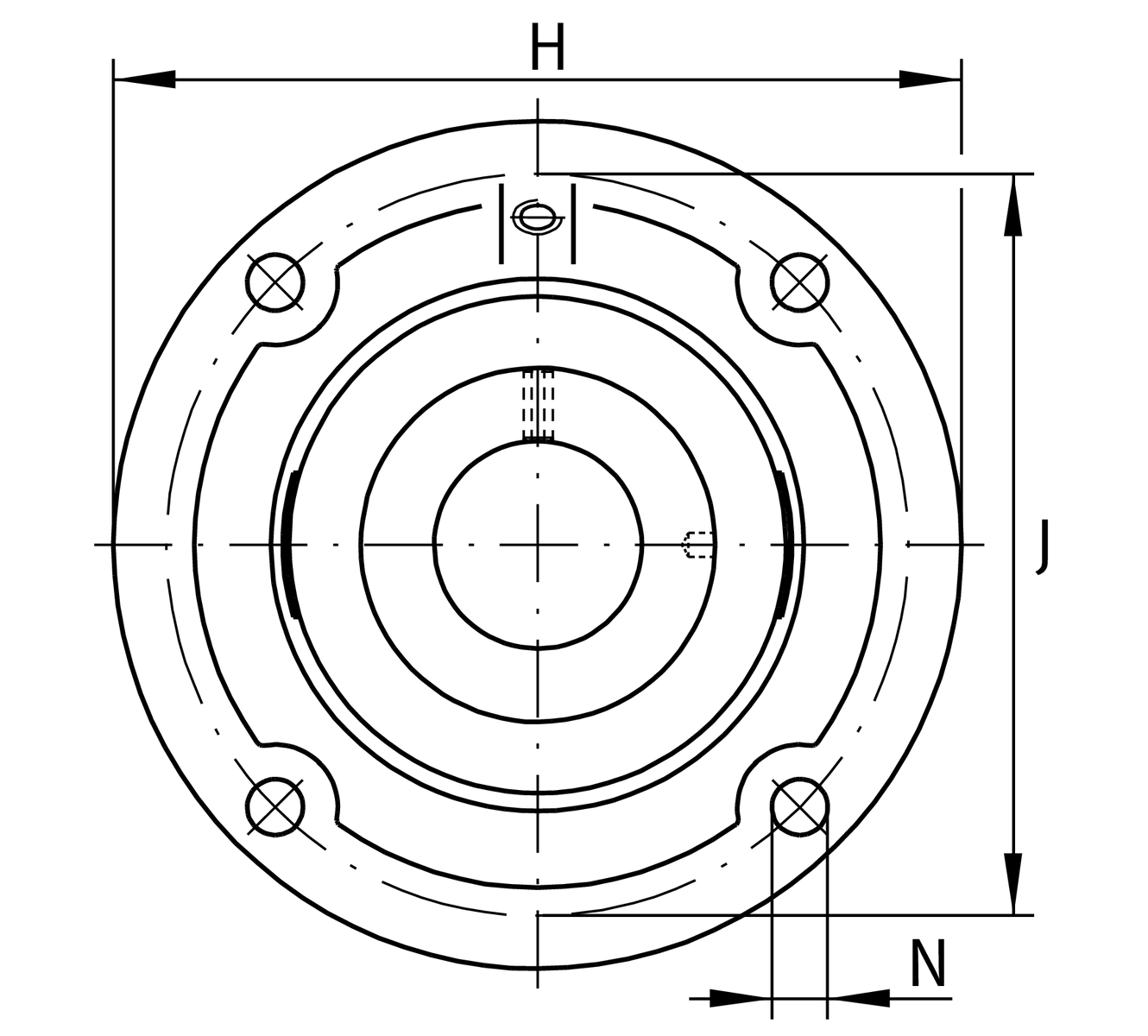

Mounting dimensions
J
110 mm
Pitch circle diameter (holes)
N
11.5 mm
Fixing bore
T1
4 mm
Height spigot
Z
90 mm
Diameter spigot
h8
Diameter spigot clearance
W
5 mm
Width across flats
n
4
Number of screwing holes

Dimensions
A
24.5 mm
Height housing
A1
10 mm
Thickness of flange
A2
9 mm
Distance raceway
B1
51.3 mm
Locking collar total width
Q
M6
Connection thread for lubrication
d3
55 mm
Outer diameter locking collar

Additional information
1
Number of housings
FE07
Housing
GE35-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
