Main Dimensions & Performance Data
| d | 40 mm | Bore diameter |
| H | 145 mm | Height flange |
| H | 145 mm | Flange width |
| U | 46.4 mm | Total height unit |
| Cr | 34,500 N | Basic dynamic load rating, radial |
| C0r | 19,800 N | Basic static load rating, radial |
| Cur | 840 N | Fatigue load limit, radial |
| ≈m | 1.69 kg | Weight |

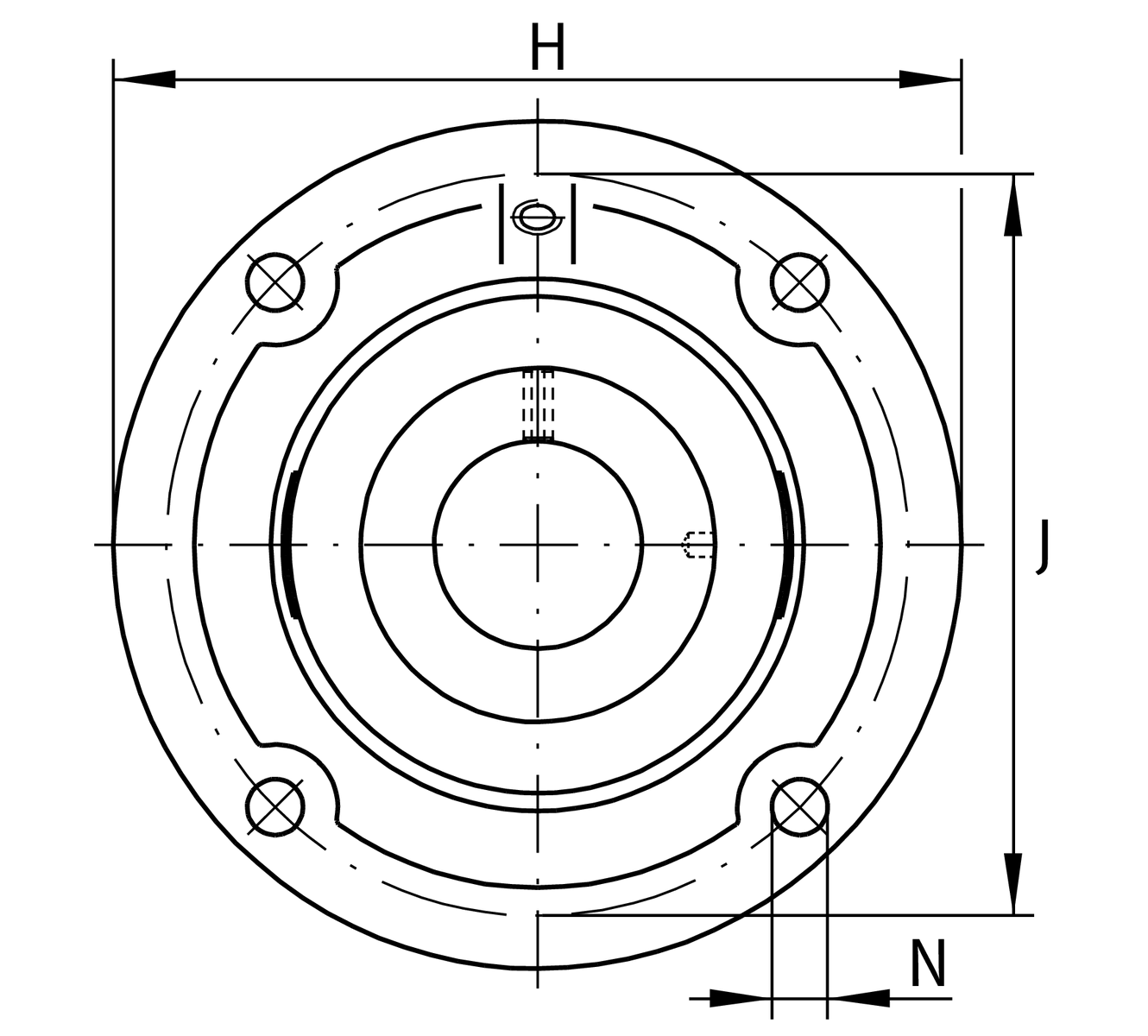

Mounting dimensions
| J | 120 mm | Distance fixing bore |
| J | 120 mm | Pitch circle diameter (holes) |
| N | 11.5 mm | Fixing bore |
| T1 | 4 mm | Height spigot |
| Z | 100 mm | Diameter spigot |
h8 | Diameter spigot clearance | |
| n | 4 | Number of screwing holes |

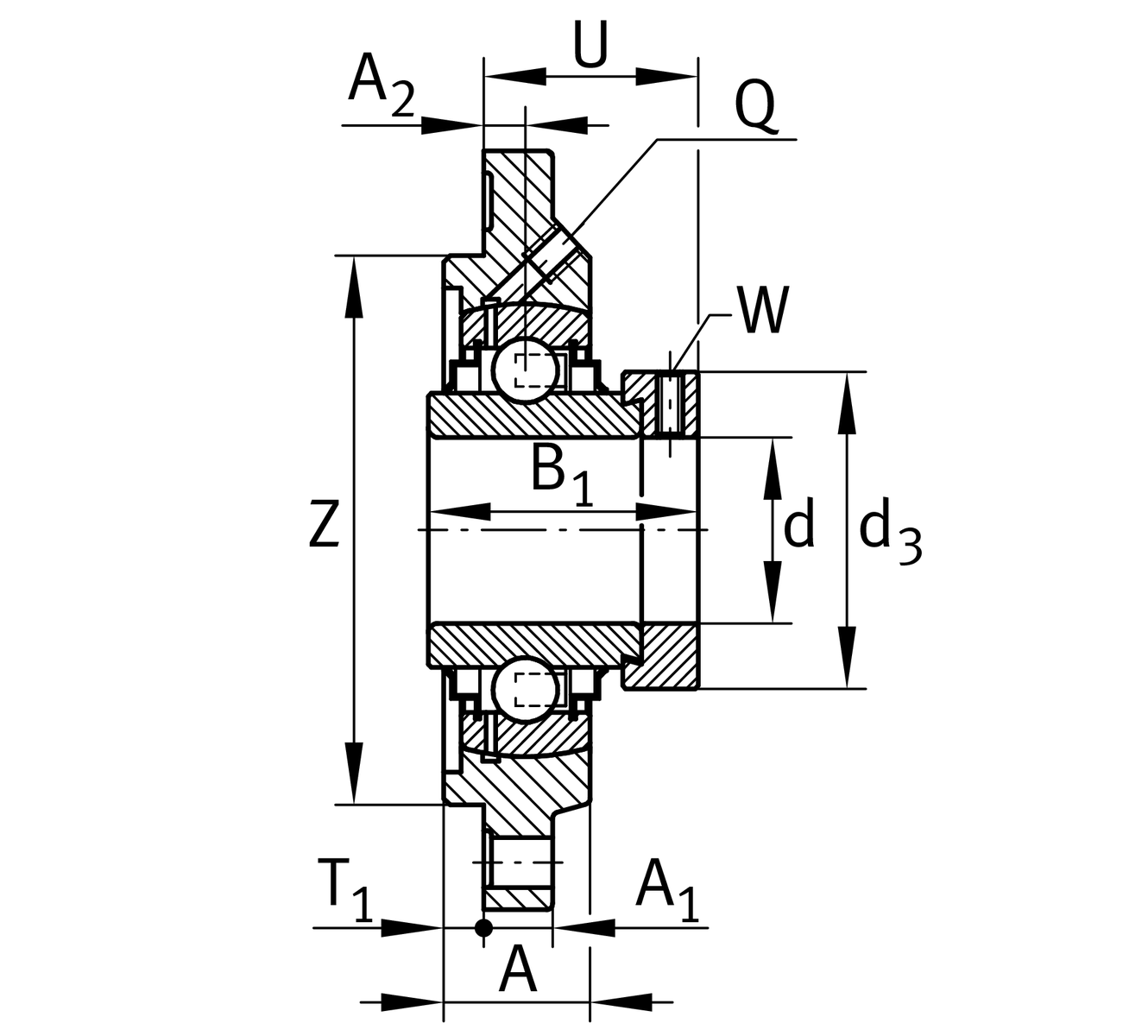

Dimensions
| A | 26 mm | Height housing |
| A1 | 11.5 mm | Thickness of flange |
| A2 | 11.5 mm | Distance raceway |
| B1 | 56.5 mm | Locking collar total width |
| Q | M6 | Connection thread for lubrication |
Additional information
1 | Number of housings | |
FE08 | Housing | |
GE40-XL-KRR-B | Bearing designation |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Material | GG | Grey cast iron |
