RFE45-XL
Flanged housing unit RFE45-XL
Thêm vào yêu cầu báo giá

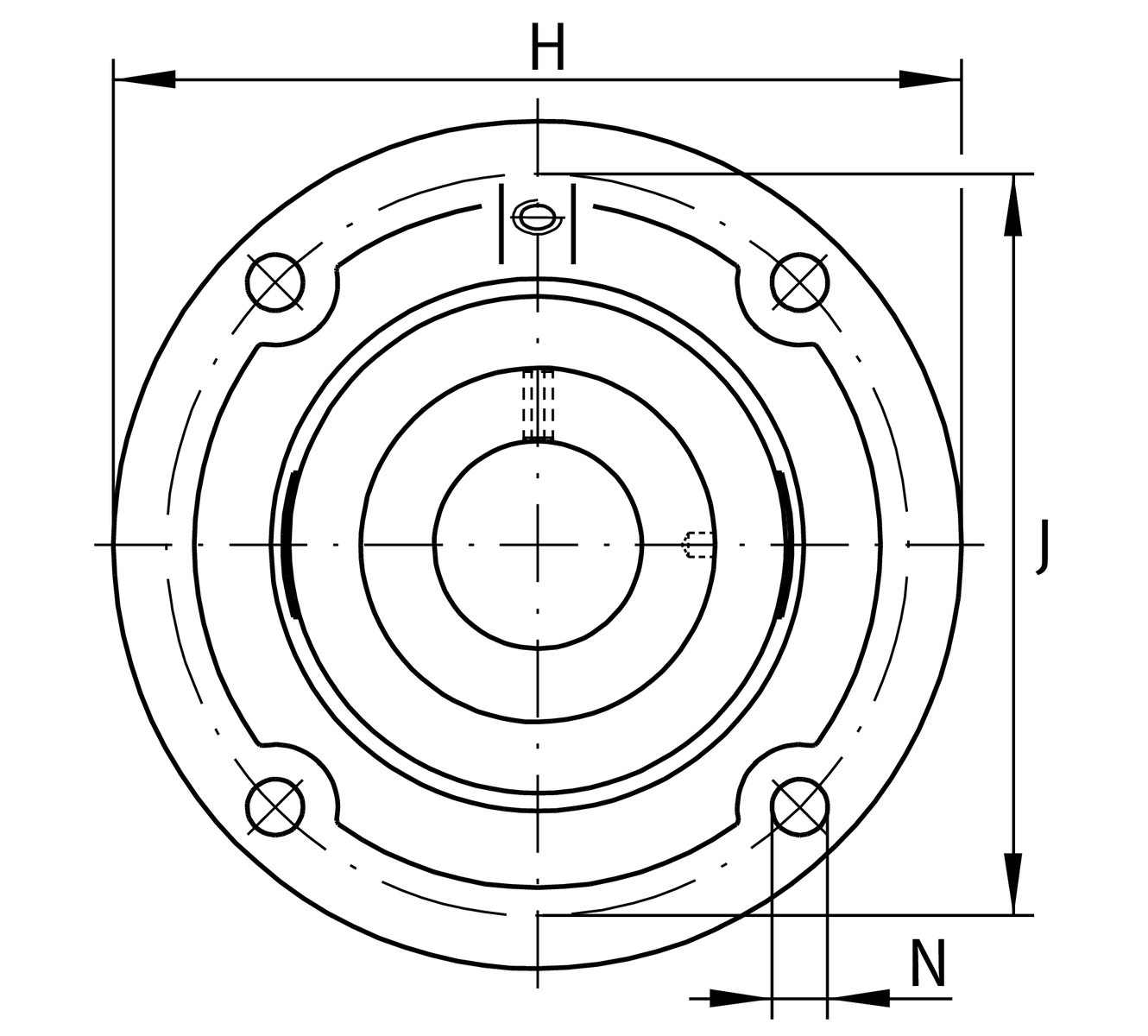

Main Dimensions & Performance Data
d
45 mm
Bore diameter
H
155 mm
Height flange
H
155 mm
Flange width
U
46.4 mm
Total height unit
Cr
32,500 N
Basic dynamic load rating, radial
C0r
20,400 N
Basic static load rating, radial
Cur
970 N
Fatigue load limit, radial
≈m
2.01 kg
Weight

Mounting dimensions
J
130 mm
Distance fixing bore
J
130 mm
Pitch circle diameter (holes)
N
14 mm
Fixing bore
T1
4 mm
Height spigot
Z
105 mm
Diameter spigot
h8
Diameter spigot clearance
n
4
Number of screwing holes

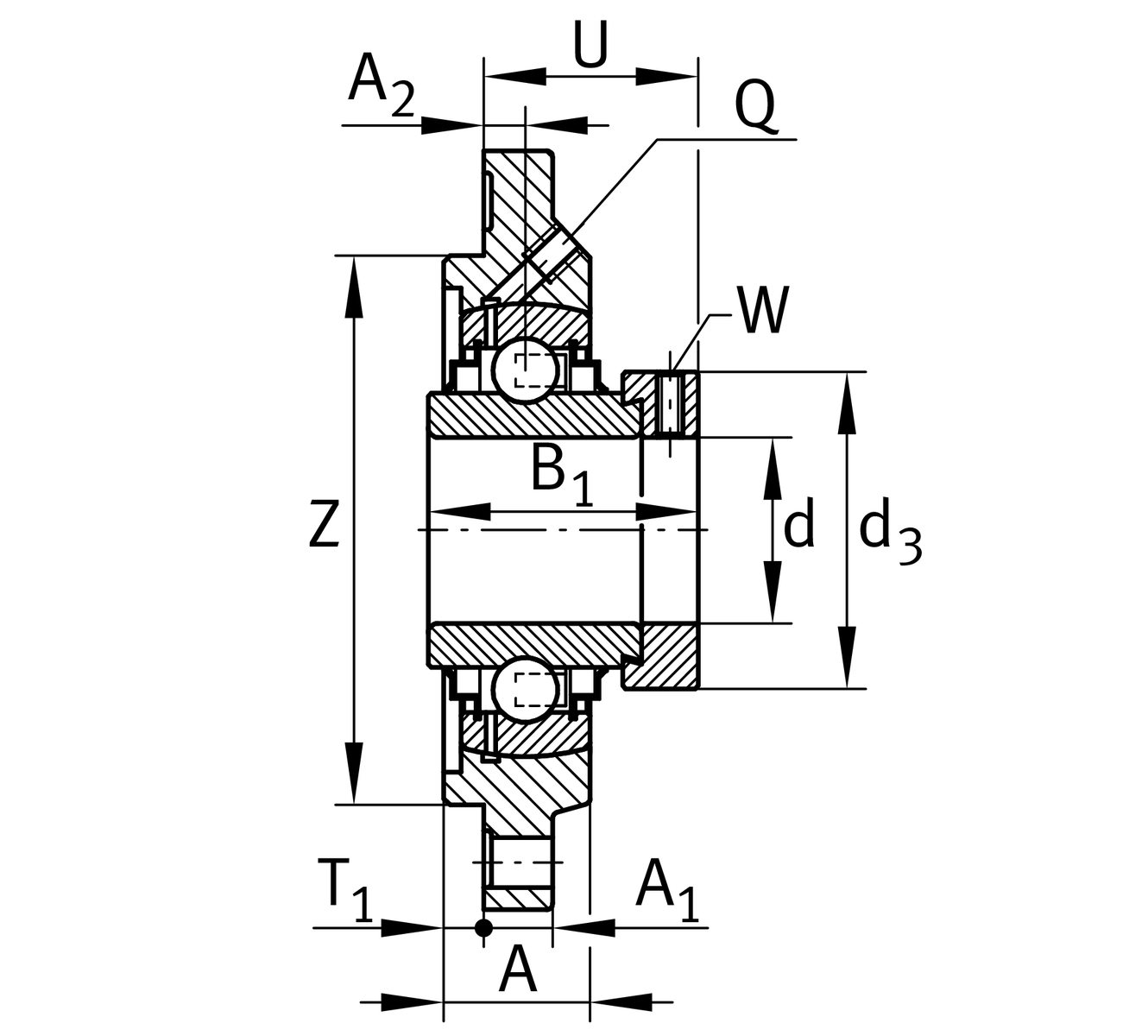

Dimensions
A
26.5 mm
Height housing
A1
12 mm
Thickness of flange
A2
11.5 mm
Distance raceway
B1
56.5 mm
Locking collar total width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
GG.FE09
Housing
GE45-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
