GSH30-XL-2RSR-B
Radial insert ball bearing GSH30-XL-2RSR-B
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
30 mm
Bore diameter
DSP
62 mm
Outside diameter
B
18 mm
Width
Cur
600 N
Fatigue load limit, radial
B1
32 mm
Locking collar total width
Cr
18,900 N
Basic dynamic load rating, radial
C0r
11,300 N
Basic static load rating, radial
≈m
0.28 kg
Weight

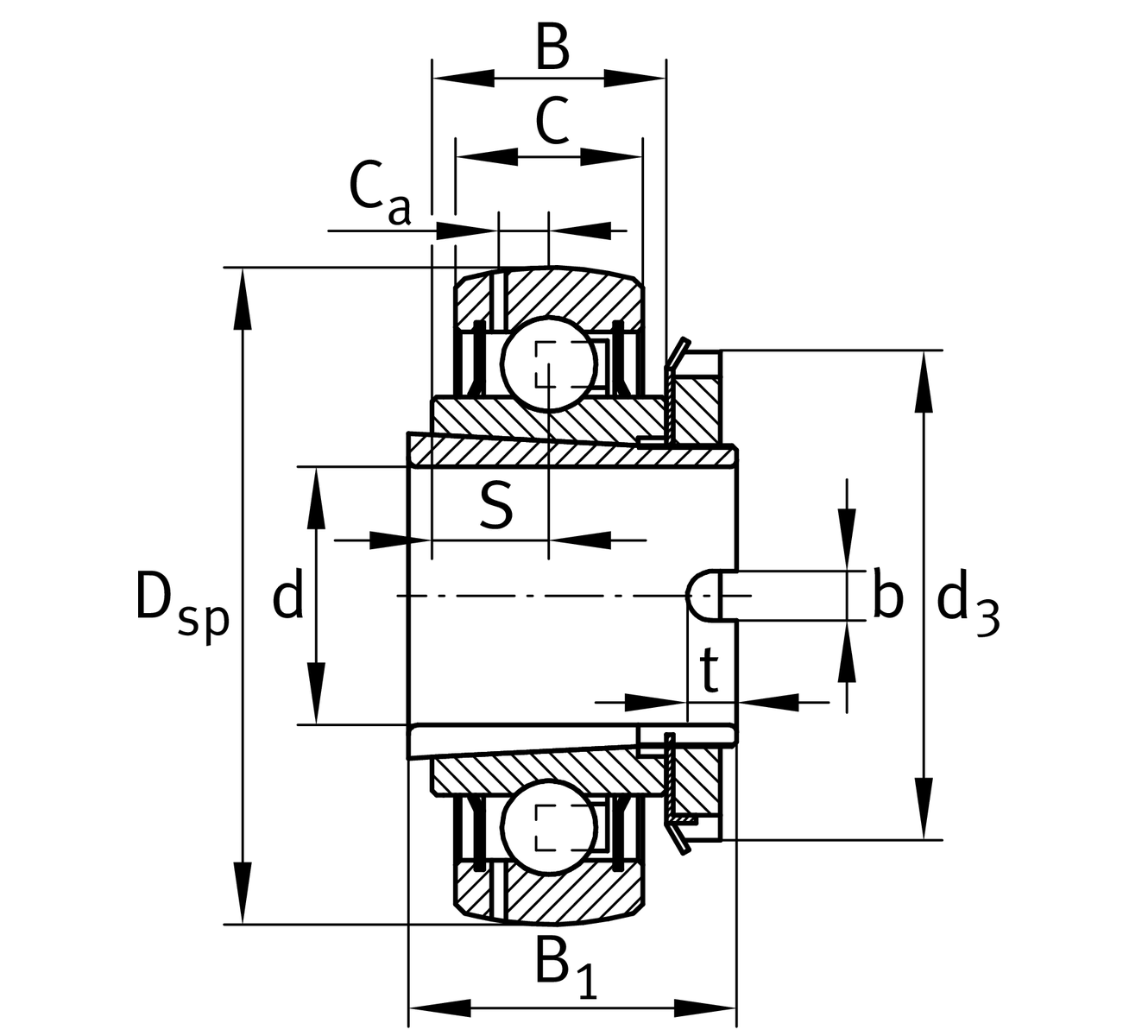

Dimensions
C
18 mm
Width, outer ring
S
9 mm
Distance raceway
Ca
4.7 mm
Distance to lubrication hole
b
5 mm
Width retaining slot
t
5 mm
Hight retaining slot adapter sleeve
d3
45 mm
Outside diameter locking collar/locknut

Calculation factors
f0
14
Calculation factor

Additional information
HUESH.SH30-ZN-0100-HLA
Adapter sleeve

Your current product variant
Sealing2RSRLip seal on both sides (vulcanised)
Shape of outer surfaceB
