GSH25-XL-2RSR-B
Radial insert ball bearing GSH25-XL-2RSR-B
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
25 mm
Bore diameter
DSP
52 mm
Outside diameter
B
15 mm
Width
Cur
420 N
Fatigue load limit, radial
B1
28 mm
Locking collar total width
Cr
13,600 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
≈m
0.16 kg
Weight

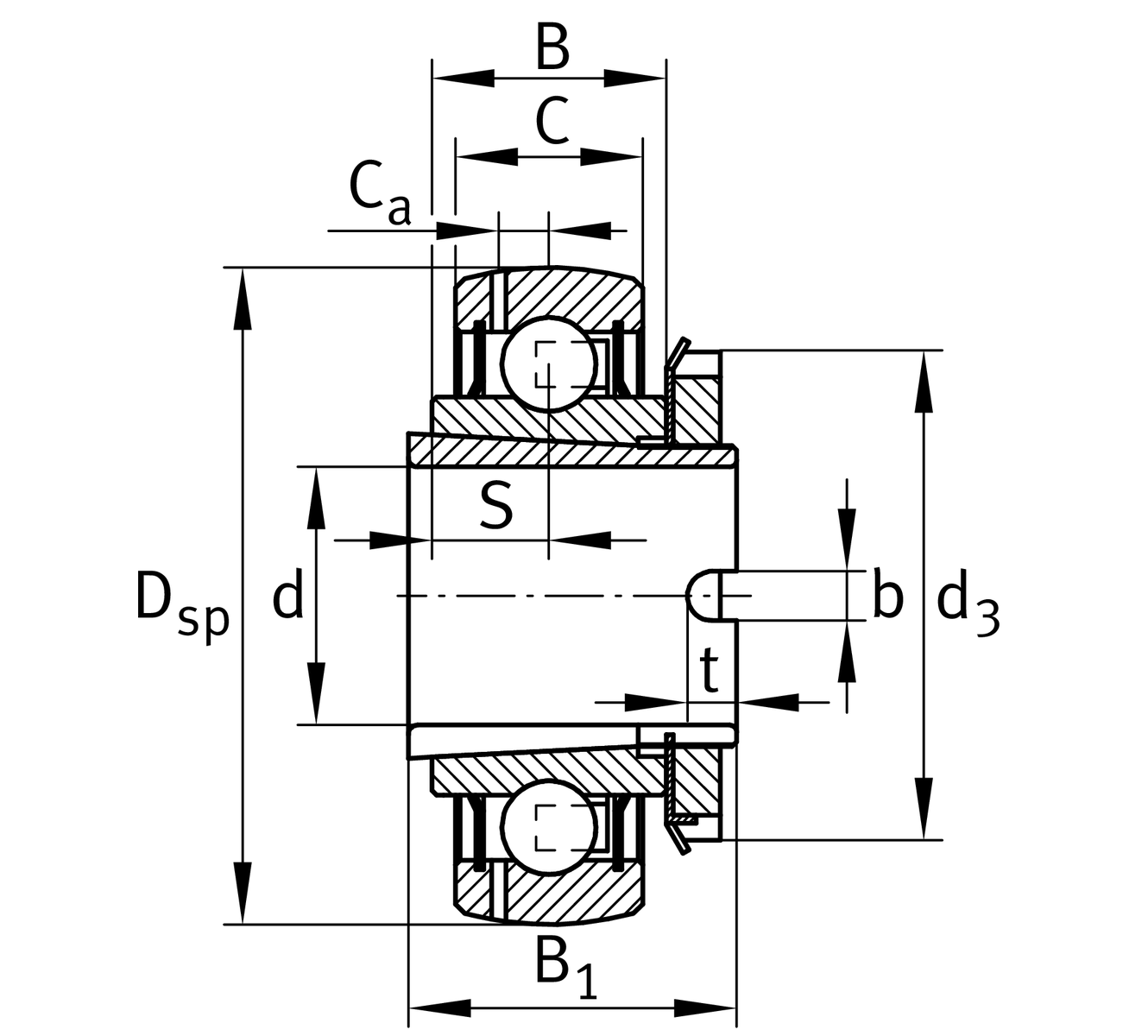

Dimensions
C
15 mm
Width, outer ring
S
7.5 mm
Distance raceway
Ca
3.9 mm
Distance to lubrication hole
b
5 mm
Width retaining slot
t
5 mm
Hight retaining slot adapter sleeve
d3
38 mm
Outside diameter locking collar/locknut

Calculation factors
f0
13.9
Calculation factor

Additional information
HUESH.SH25-ZN-0100-HLA
Adapter sleeve

Your current product variant
Sealing2RSRLip seal on both sides (vulcanised)
Shape of outer surfaceB
