Radial insert ball bearing GSH20-XL-2RSR-B

Thêm vào yêu cầu báo giá

Main Dimensions & Performance Data

d	20 mm	Bore diameter
D_SP	47 mm	Outside diameter
B	15 mm	Width
C_ur	365 N	Fatigue load limit, radial
B₁	28 mm	Locking collar total width
C_r	12,700 N	Basic dynamic load rating, radial
C_0r	6,600 N	Basic static load rating, radial
≈m	0.15 kg	Weight

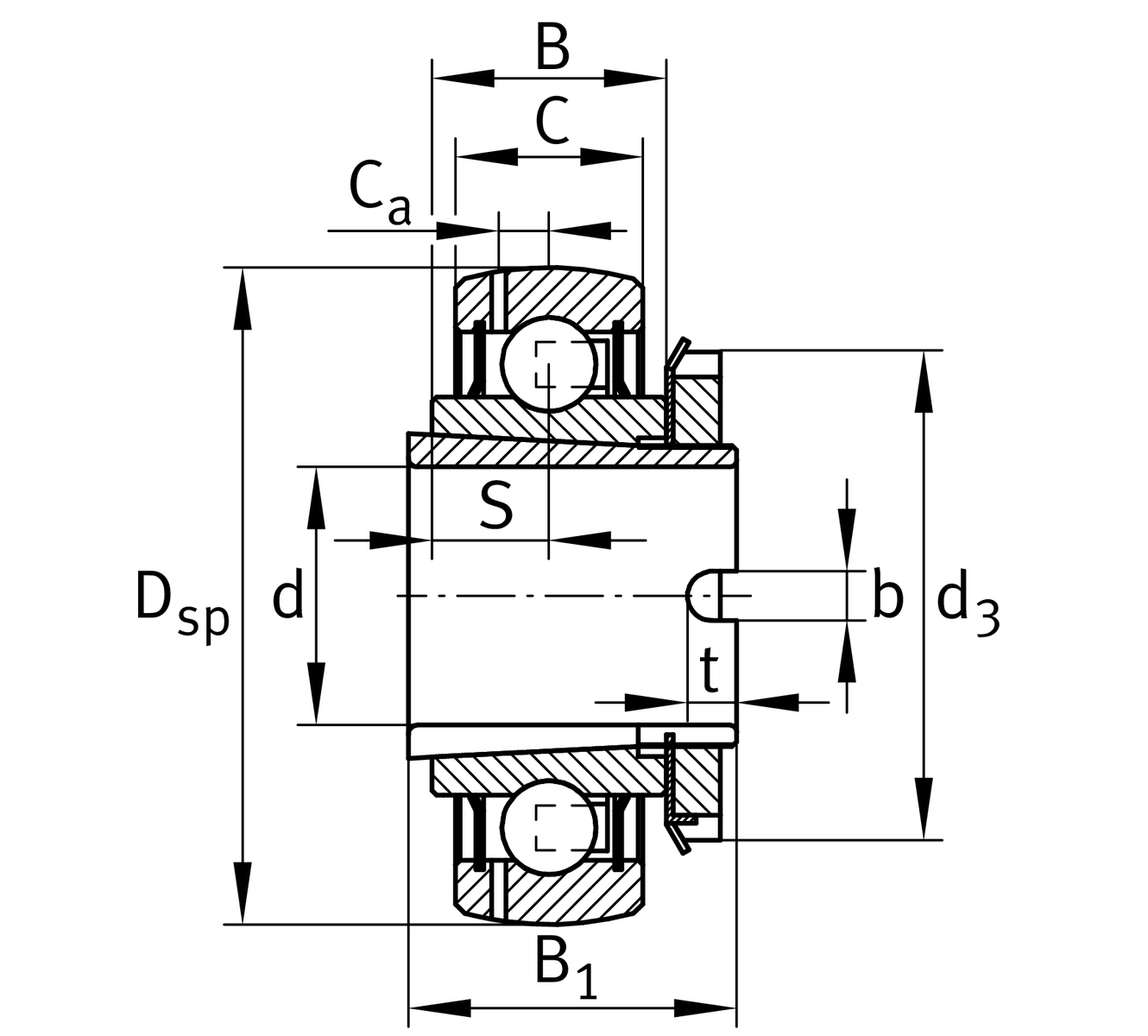

Dimensions

C	14 mm	Width, outer ring
S	7.5 mm	Distance raceway
C_a	4 mm	Distance to lubrication hole
b	5 mm	Width retaining slot
t	5 mm	Hight retaining slot adapter sleeve
d₃	32 mm	Outside diameter locking collar/locknut

Calculation factors

f₀	13	Calculation factor

Additional information

	HUESH.SH20-ZN-0100-HLA	Adapter sleeve

Your current product variant

Sealing	2RSR	Lip seal on both sides (vulcanised)
Shape of outer surface	B
