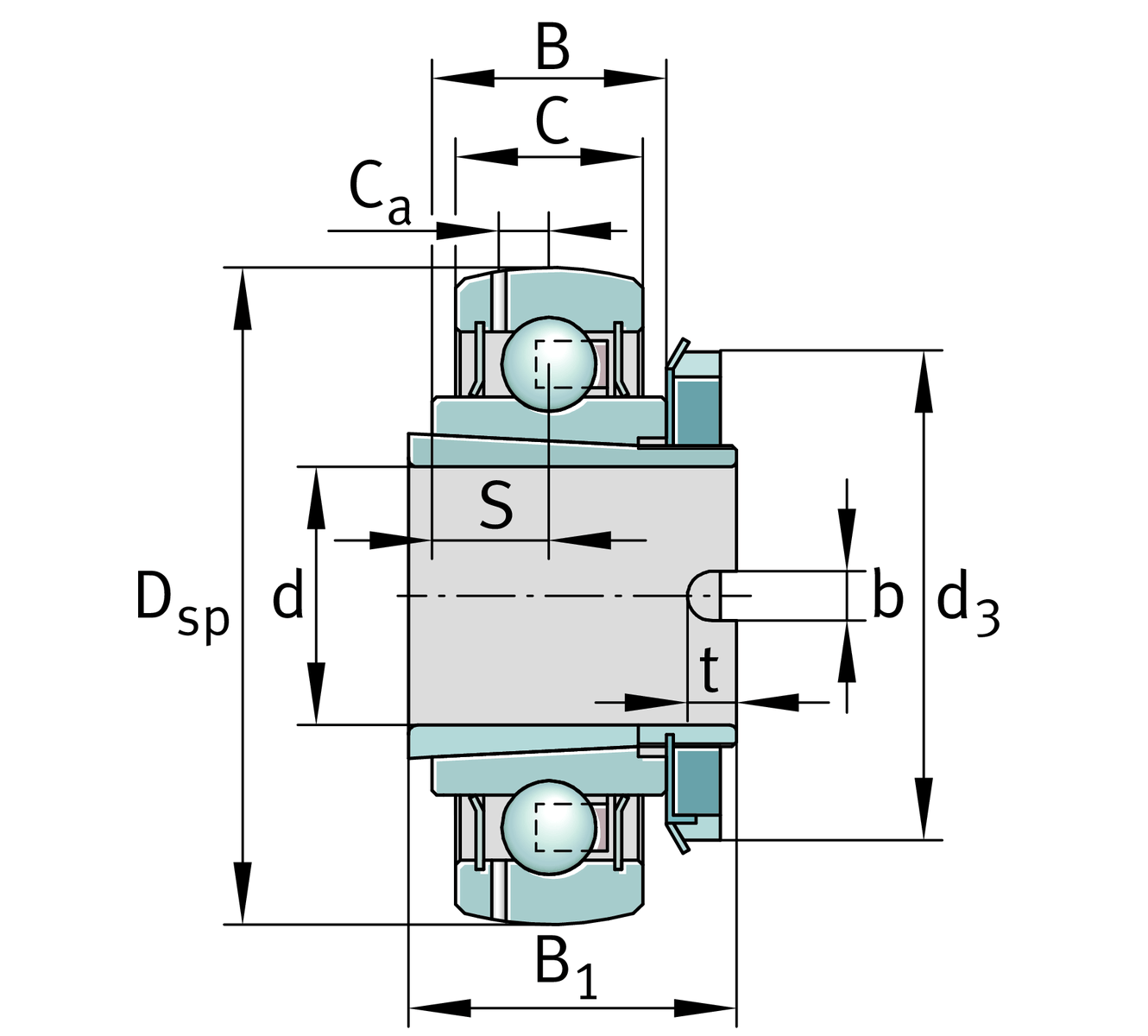

Main Dimensions & Performance Data
| d | 35 mm | Bore diameter |
| DSP | 72 mm | Outside diameter |
| B | 19 mm | Width |
| B1 | 34.7 mm | Locking collar total width |
| Cr | 24,900 N | Basic dynamic load rating, radial |
| C0r | 15,300 N | Basic static load rating, radial |
| ≈m | 400 g | Weight |
Dimensions
| C | 19 mm | Width, outer ring |
| S | 9.5 mm | Distance raceway |
| Ca | 5.8 mm | Distance to lubrication hole |
| b | 5 mm | Width retaining slot |
| t | 5 mm | Hight retaining slot adapter sleeve |
| d3 | 52 mm | Outside diameter locking collar/locknut |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Your current product variant
| Sealing | 2RSR | Lip seal on both sides (vulcanised) |
| Shape of outer surface | B | |
| Lubricant | L406/50 | Lubricant L406/50 |
