GU25-DO
Rod end GU25-DO
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
25 mm
Bore diameter bearing
D
42 mm
Outside diameter bearing
B
20 mm
Width inner ring,
Cr
60,500 N
Basic dynamic load rating, radial
C0r
88,300 N
Basic static load rating, radial
≈m
0.85 kg
Weight

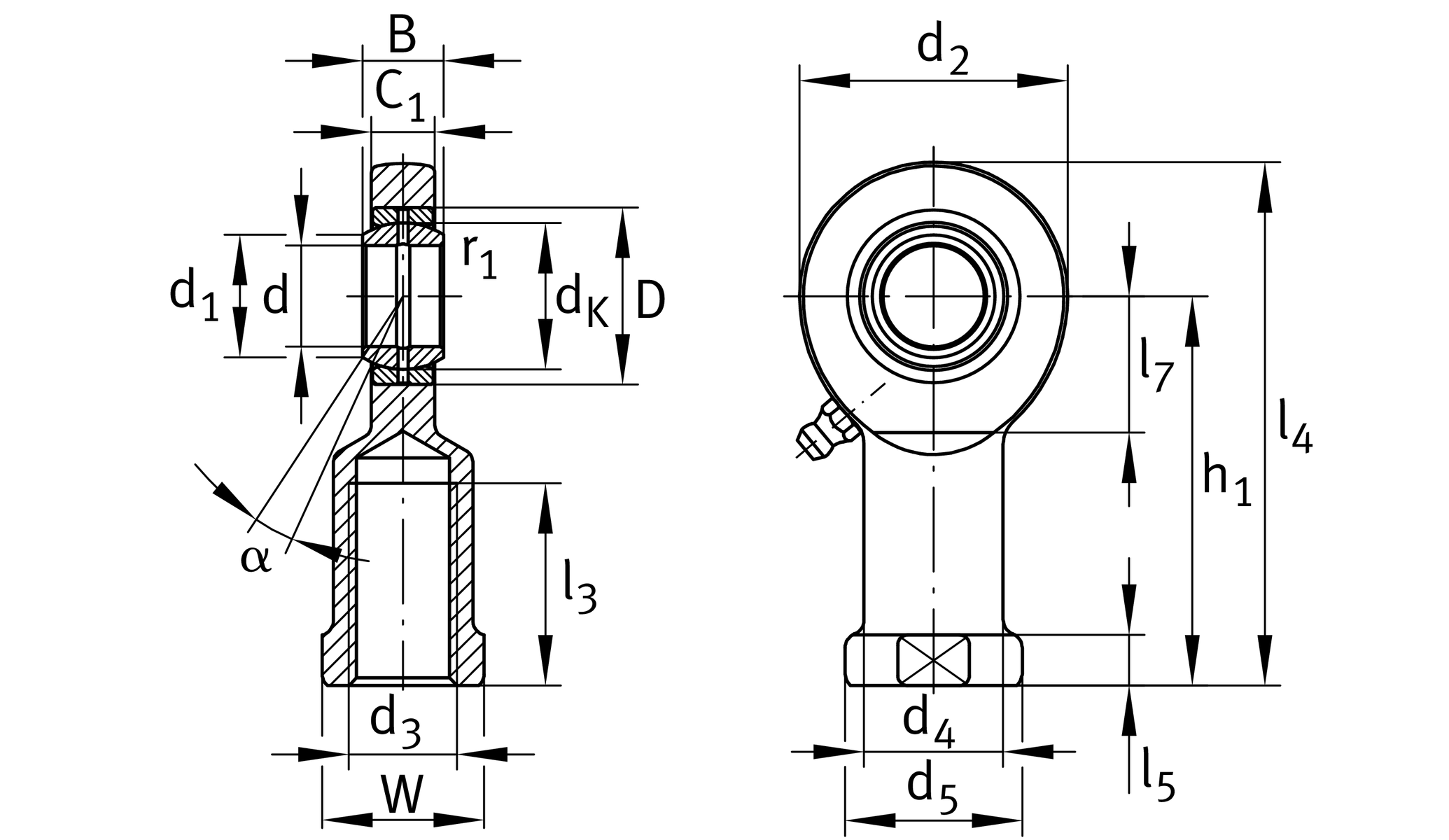

Dimensions
dK
35.5 mm
Ball diameter
d1
29.3 mm
Outer flange diameter inner ring
d2
64 mm
Outer eye diameter
d4
33.5 mm
Shank diameter
h1
95.5 mm
Shank Length Internal thread head
C1
17 mm
Width of the rod end
α
7 °
Tilt angle
l4
127.5 mm
Total length internal thread head
l7
32 mm
Distance drilling with/shaft start
d5
42 mm
Shank diameter, large
r1smin
0.6 mm
Edge Spacing
Gr
0,037 - 0,100
Radial Clearance
dOT
0 mm
Bore diameter bearing, upper tolerance
dUT
-0.01 mm
Bore diameter bearing, lower tolerance
BOT
0 mm
Width inner ring, upper tolerance
BUT
-0.12 mm
Width inner ring, lower tolerance
Grmax
0.1 mm
Radial clearance, maximum
Grmin
0.037 mm
Radial clearance, minimum

Temperature range
Tmin
-60 °C
Operating temperature min.
Tmax
200 °C
Operating temperature max.

Your current product variant
SealingWithout
