Main Dimensions & Performance Data
| d | 20 mm | Bore diameter bearing |
| D | 35 mm | Outside diameter bearing |
| B | 16 mm | Width inner ring, |
| Cr | 35,400 N | Basic dynamic load rating, radial |
| C0r | 55,400 N | Basic static load rating, radial |
| ≈m | 0.47 kg | Weight |

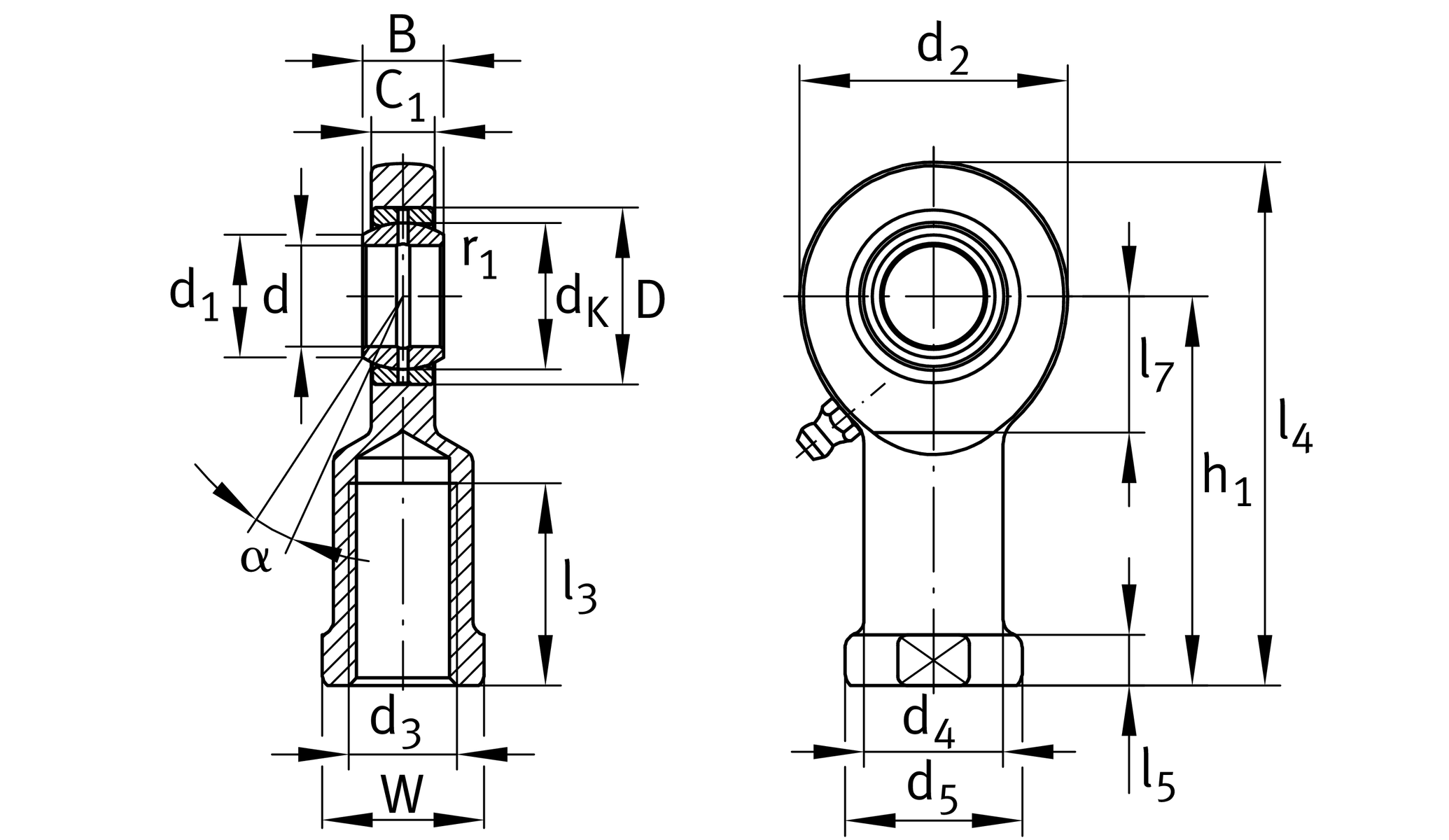

Dimensions
| dK | 29 mm | Ball diameter |
| d1 | 24.2 mm | Outer flange diameter inner ring |
| d2 | 53 mm | Outer eye diameter |
| d4 | 27.5 mm | Shank diameter |
| h1 | 78.5 mm | Shank Length Internal thread head |
| C1 | 13 mm | Width of the rod end |
| α | 9 ° | Tilt angle |
| l4 | 105 mm | Total length internal thread head |
| l7 | 27 mm | Distance drilling with/shaft start |
| d5 | 35 mm | Shank diameter, large |
| r1smin | 0.3 mm | Edge Spacing |
| Gr | 0,03 - 0,082 | Radial Clearance |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| dUT | -0.01 mm | Bore diameter bearing, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| BUT | -0.12 mm | Width inner ring, lower tolerance |
| Grmax | 0.082 mm | Radial clearance, maximum |
| Grmin | 0.03 mm | Radial clearance, minimum |
Temperature range
| Tmin | -60 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Your current product variant
| Sealing | Without |
