GU30-DO
Rod end GU30-DO
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
30 mm
Bore diameter bearing
D
47 mm
Outside diameter bearing
B
22 mm
Width inner ring,
Cr
78,300 N
Basic dynamic load rating, radial
C0r
117,000 N
Basic static load rating, radial
≈m
1.3 kg
Weight

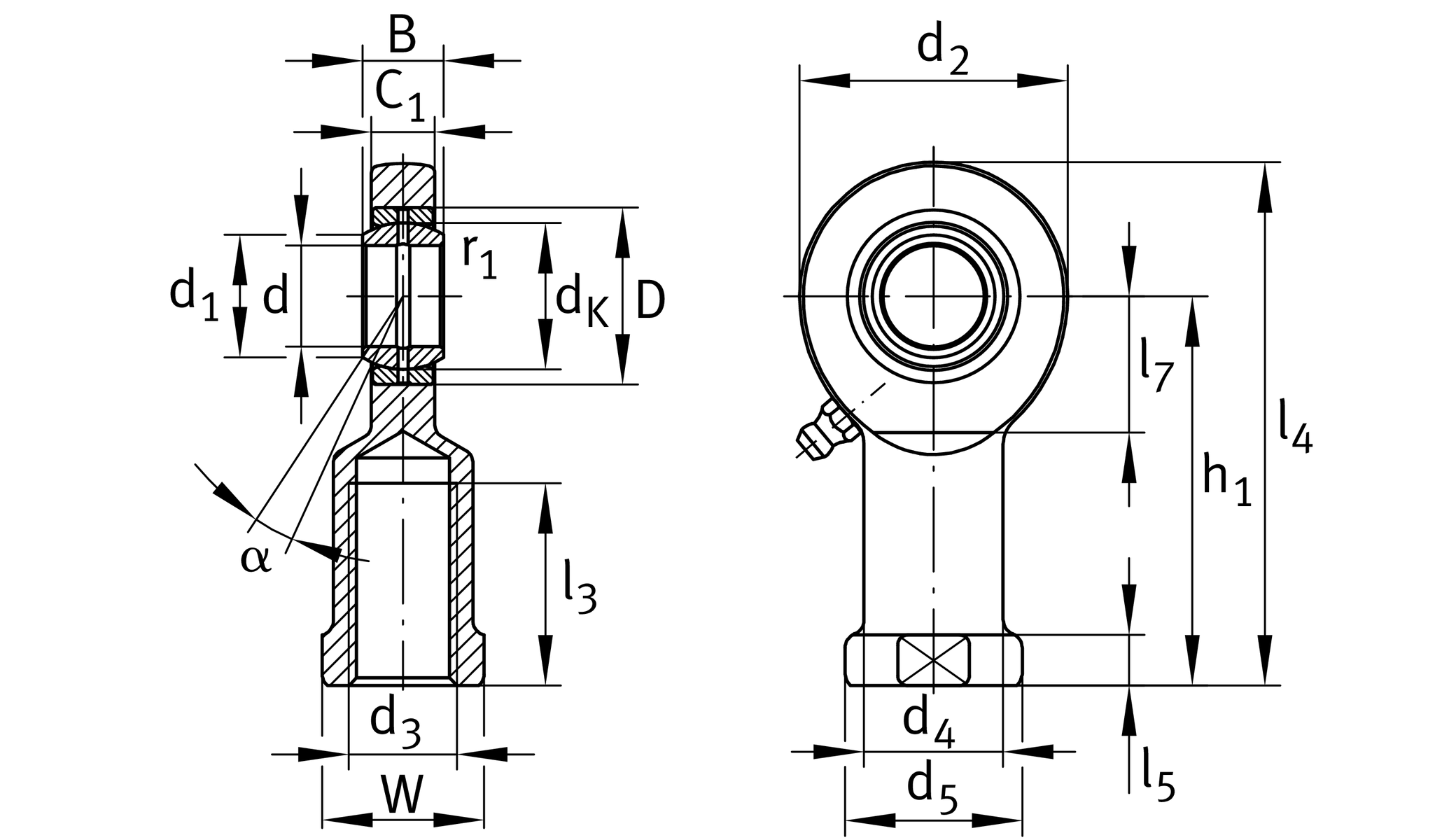

Dimensions
dK
40.7 mm
Ball diameter
d1
34.2 mm
Outer flange diameter inner ring
d2
73 mm
Outer eye diameter
d4
40 mm
Shank diameter
h1
111.5 mm
Shank Length Internal thread head
C1
19 mm
Width of the rod end
α
6 °
Tilt angle
l4
148 mm
Total length internal thread head
l7
37 mm
Distance drilling with/shaft start
d5
50 mm
Shank diameter, large
r1smin
0.6 mm
Edge Spacing
Gr
0,037 - 0,100
Radial Clearance
dOT
0 mm
Bore diameter bearing, upper tolerance
dUT
-0.01 mm
Bore diameter bearing, lower tolerance
BOT
0 mm
Width inner ring, upper tolerance
BUT
-0.12 mm
Width inner ring, lower tolerance
Grmax
0.1 mm
Radial clearance, maximum
Grmin
0.037 mm
Radial clearance, minimum

Temperature range
Tmin
-60 °C
Operating temperature min.
Tmax
200 °C
Operating temperature max.
