FAG INA Schaeffler
INA
GWN50-B
Shaft support block GWN50-B
Thêm vào yêu cầu báo giá

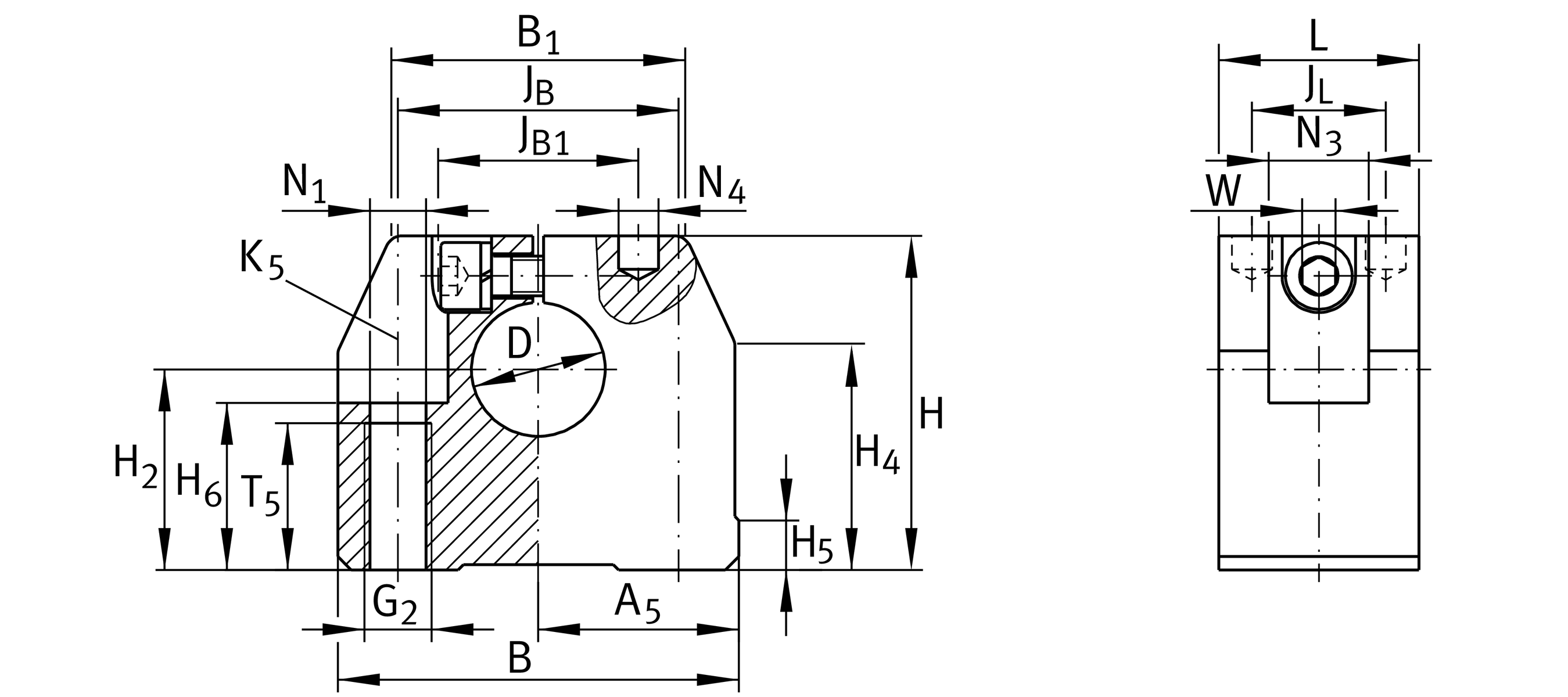

Main Dimensions & Performance Data
D
50 mm
Diameter
Tol D
H8
Tolerance
B
132 mm
Width
L
58 mm
Length
H
105 mm
Height
≈m
1.36 kg
Weight

Mounting dimensions
JB
100 mm
Mounting Dimension
Tol JB
±0,2
Tolerance
JB1
70 mm
Mounting Dimension
B1
90 mm
Mounting Dimension
A5
66 mm
Mounting Dimension
Tol A5
+0,01
Upper tolerance
JL
36 mm
Mounting Dimension
H2
60 mm
Mounting Dimension
Tol H2
+0,01
Upper tolerance
Tol H2
-0,01
Lower tolerance
H4
62 mm
Mounting Dimension
H5
10.6 mm
Mounting Dimension
Tol A5
-0,01
Lower tolerance
T5
43 mm
Mounting Dimension
H6
49 mm
Mounting Dimension
G2
M20
Mounting thread below
N1
17.5 mm
Mounting Dimension 1
N3
26 mm
Mounting Dimension
N4
12 mm
Mounting Dimension
K5
M16
Size thread fixing screws above 2
W
10 mm
Width across Flat

Your current product variant
Size code50
VersionB
