GY1008-KRR-B-AS2/V
Radial insert ball bearing GY1008-KRR-B-AS2/V
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
12.7 mm
Bore diameter
d
12.7 mm
Bore diameter, inch
DSP
40 mm
Outside diameter
B
27.3 mm
Width
Cur
248 N
Fatigue load limit, radial
Cr
10,100 N
Basic dynamic load rating, radial
C0r
4,750 N
Basic static load rating, radial
≈m
111.87 g
Weight

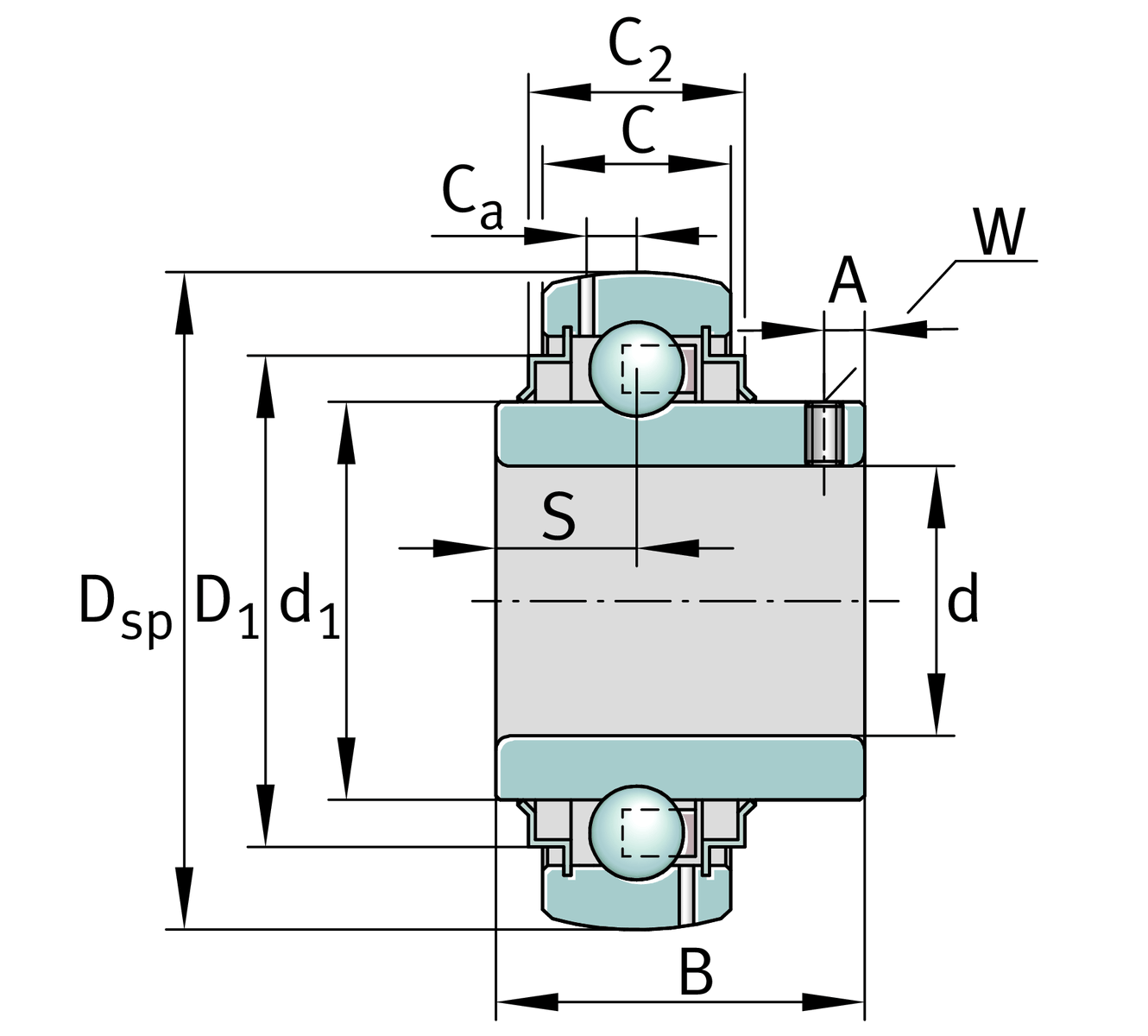

Dimensions
C
12 mm
Width, outer ring
S
11.5 mm
Distance raceway
d1
23.9 mm
Rib diameter inner ring
Ca
3.4 mm
Distance to lubrication hole
A
4 mm
Distance thread

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Calculation factors
f0
13
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
Lubrication hole transposedAS2/VAS2/V
