GWN40-B
Shaft support block GWN40-B
Thêm vào yêu cầu báo giá

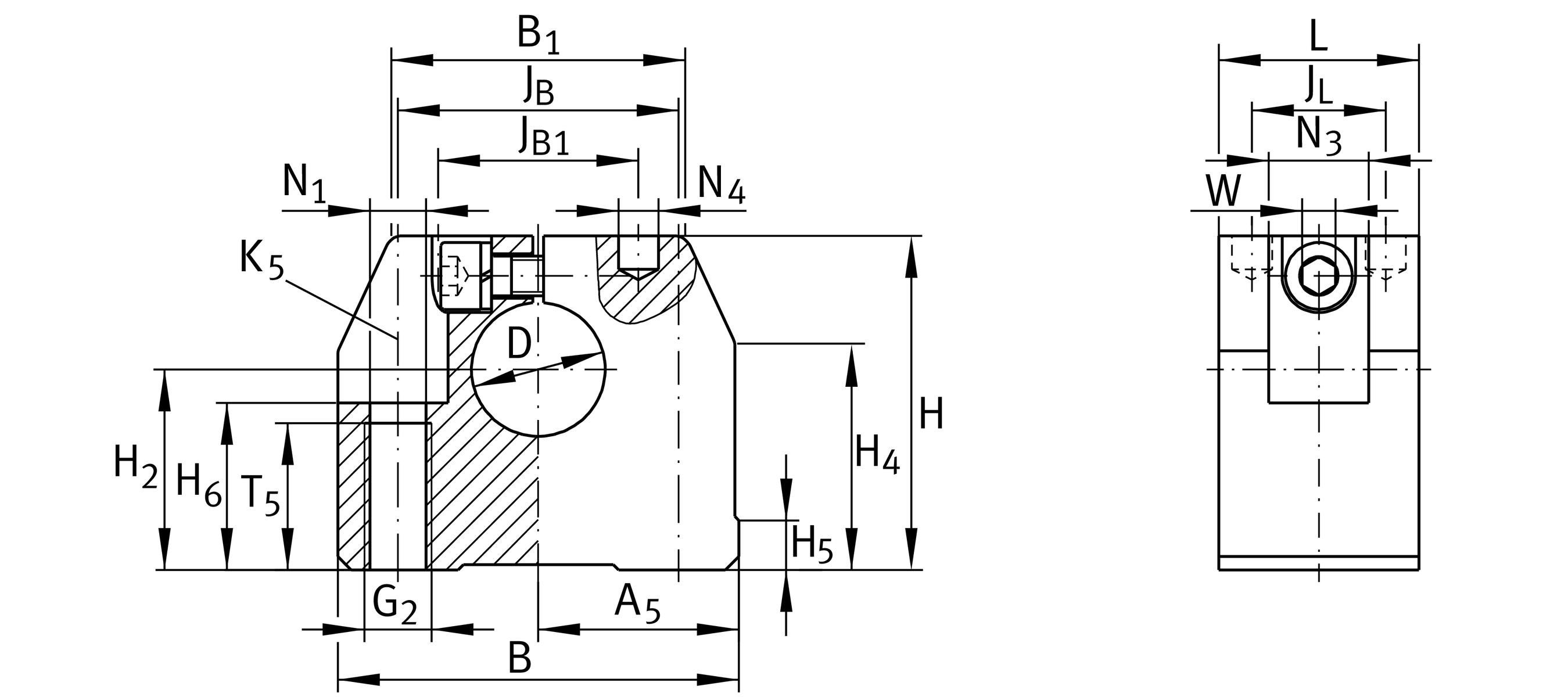

Main Dimensions & Performance Data
D
40 mm
Diameter
Tol D
H8
Tolerance
B
108 mm
Width
L
48 mm
Length
H
90 mm
Height
≈m
0.82 kg
Weight

Mounting dimensions
JB
82 mm
Mounting Dimension
Tol JB
±0,15
Tolerance
JB1
65 mm
Mounting Dimension
B1
76 mm
Mounting Dimension
A5
54 mm
Mounting Dimension
Tol A5
+0,01
Upper tolerance
JL
32 mm
Mounting Dimension
H2
50 mm
Mounting Dimension
Tol H2
+0,01
Upper tolerance
Tol H2
-0,01
Lower tolerance
H4
57.6 mm
Mounting Dimension
H5
11.7 mm
Mounting Dimension
Tol A5
-0,01
Lower tolerance
T5
34 mm
Mounting Dimension
H6
44 mm
Mounting Dimension
G2
M16
Mounting thread below
N1
13.5 mm
Mounting Dimension 1
N3
20 mm
Mounting Dimension
N4
10 mm
Mounting Dimension
K5
M12
Size thread fixing screws above 2
W
8 mm
Width across Flat

Your current product variant
Size code40
VersionB
