GWN30-B
Shaft support block GWN30-B
Thêm vào yêu cầu báo giá

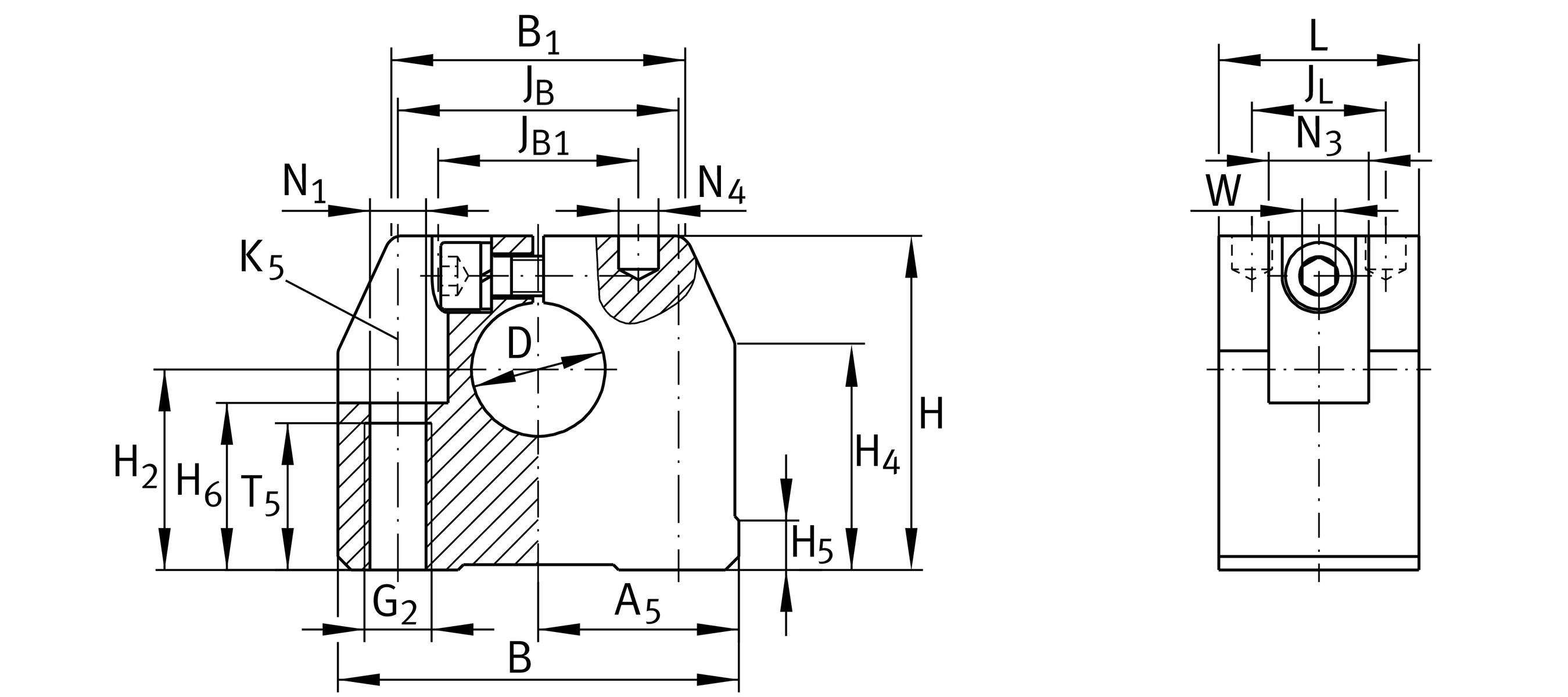

Main Dimensions & Performance Data
D
30 mm
Diameter
Tol D
H8
Tolerance
B
87 mm
Width
L
40 mm
Length
H
70 mm
Height
≈m
0.45 kg
Weight

Mounting dimensions
JB
64 mm
Mounting Dimension
Tol JB
±0,15
Tolerance
JB1
45 mm
Mounting Dimension
B1
63 mm
Mounting Dimension
A5
43.5 mm
Mounting Dimension
Tol A5
+0,01
Upper tolerance
JL
26 mm
Mounting Dimension
H2
40 mm
Mounting Dimension
Tol H2
+0,01
Upper tolerance
Tol H2
-0,01
Lower tolerance
H4
46.2 mm
Mounting Dimension
H5
9.3 mm
Mounting Dimension
Tol A5
-0,01
Lower tolerance
T5
26 mm
Mounting Dimension
H6
4 mm
Mounting Dimension
G2
M12
Mounting thread below
N1
10.5 mm
Mounting Dimension 1
N3
18 mm
Mounting Dimension
N4
8 mm
Mounting Dimension
K5
M10
Size thread fixing screws above 2
W
6 mm
Width across Flat

Your current product variant
Size code30
VersionB
