GWN25-B
Shaft support block GWN25-B
Thêm vào yêu cầu báo giá

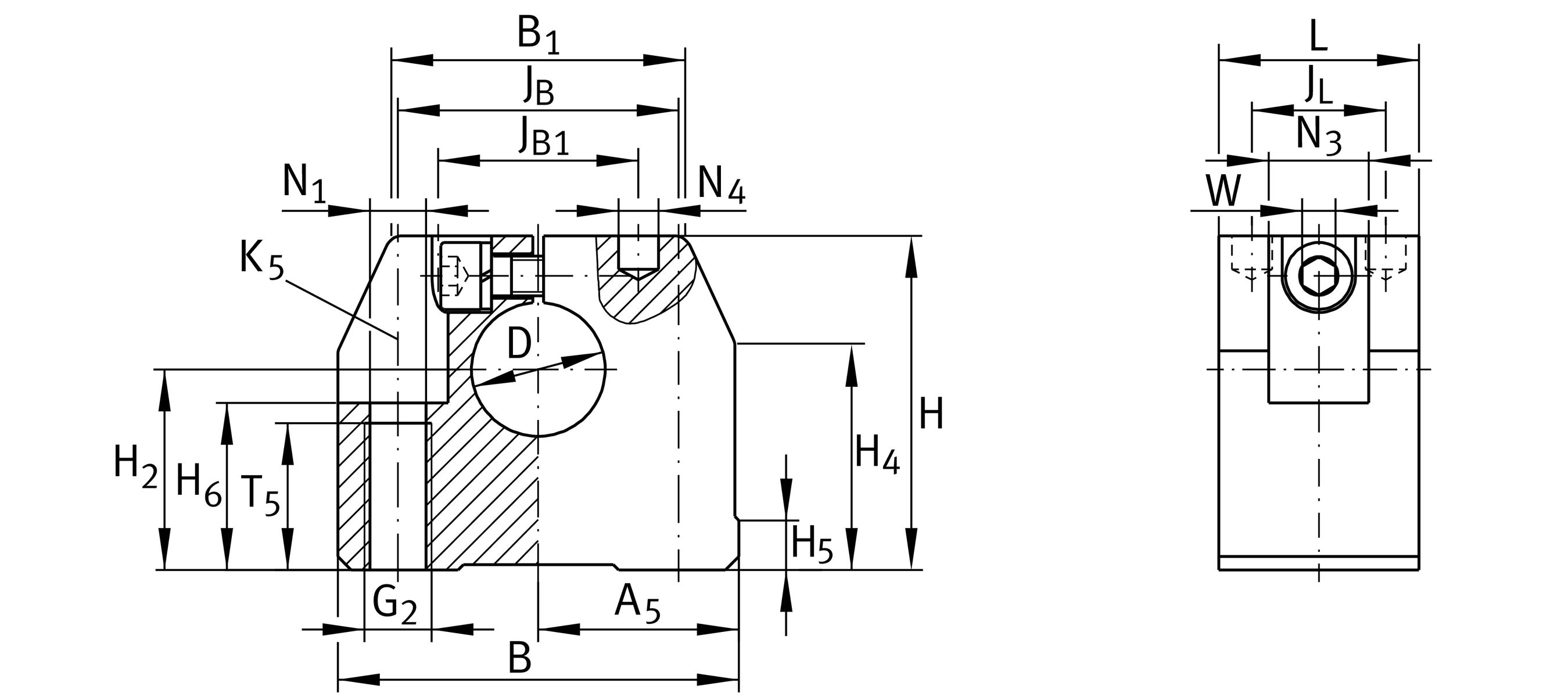

Main Dimensions & Performance Data
D
25 mm
Diameter
Tol D
H8
Tolerance
B
78 mm
Width
L
38 mm
Length
H
60 mm
Height
≈m
0.33 kg
Weight

Mounting dimensions
JB
56 mm
Mounting Dimension
Tol JB
±0,15
Tolerance
JB1
40 mm
Mounting Dimension
B1
60 mm
Mounting Dimension
A5
39 mm
Mounting Dimension
Tol A5
+0,01
Upper tolerance
JL
25 mm
Mounting Dimension
H2
35 mm
Mounting Dimension
Tol H2
+0,01
Upper tolerance
Tol H2
-0,01
Lower tolerance
H4
41.5 mm
Mounting Dimension
H5
8.3 mm
Mounting Dimension
Tol A5
-0,01
Lower tolerance
T5
26 mm
Mounting Dimension
H6
30 mm
Mounting Dimension
G2
M12
Mounting thread below
N1
10.5 mm
Mounting Dimension 1
N3
18 mm
Mounting Dimension
N4
8 mm
Mounting Dimension
K5
M10
Size thread fixing screws above 2
W
6 mm
Width across Flat

Your current product variant
Size code25
VersionB
