GWH50-B
Shaft support block GWH50-B
Thêm vào yêu cầu báo giá

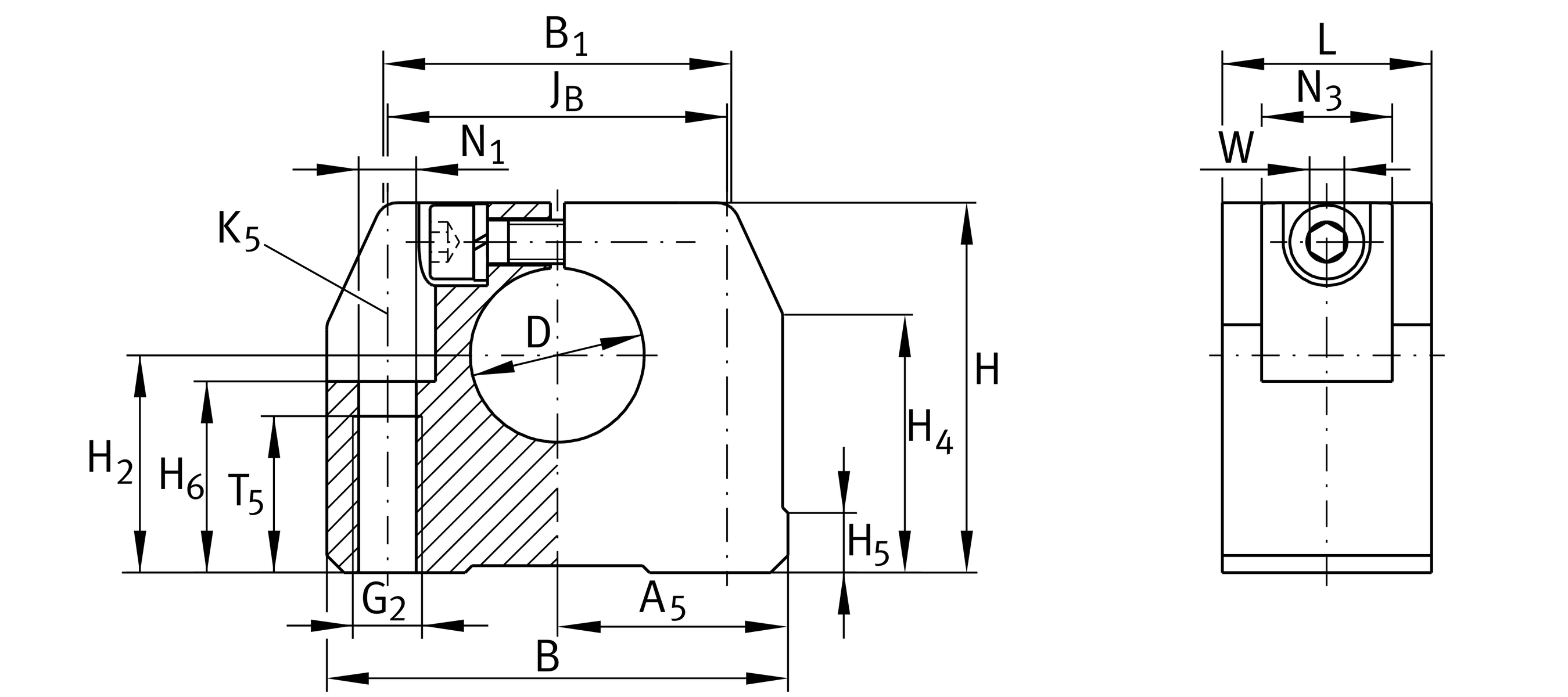

Main Dimensions & Performance Data
D
50 mm
diameter
Tol D
H8
Tolerance
B
103 mm
Width across flats
L
50 mm
Length
H
92 mm
Heigth
≈m
0.82 kg
Weight

Mounting dimensions
JB
80 mm
Mounting Dimension
Tol JB
±0,15
Tolerance
A5
51.5 mm
Mounting Dimension
B1
74 mm
Mounting Dimension
H2
50 mm
Mounting Dimension
Tol H2
+0,1
Upper tolerance
Tol H2
-0,1
Lower tolerance
H4
62.3 mm
Mounting Dimension
H5
10.9 mm
Mounting Dimension
T5
34 mm
Mounting Dimension
H6
46 mm
Mounting Dimension
G2
M16
Mounting thread below
N1
13.5 mm
Mounting Dimension
N3
24 mm
Mounting Dimension
K5
M12
Sie thread fixing screws above 1
W
8 mm
Width across Flat 2

Your current product variant
Size code50
SuffixBVersion
