GWN12-B
Shaft support block GWN12-B
Thêm vào yêu cầu báo giá

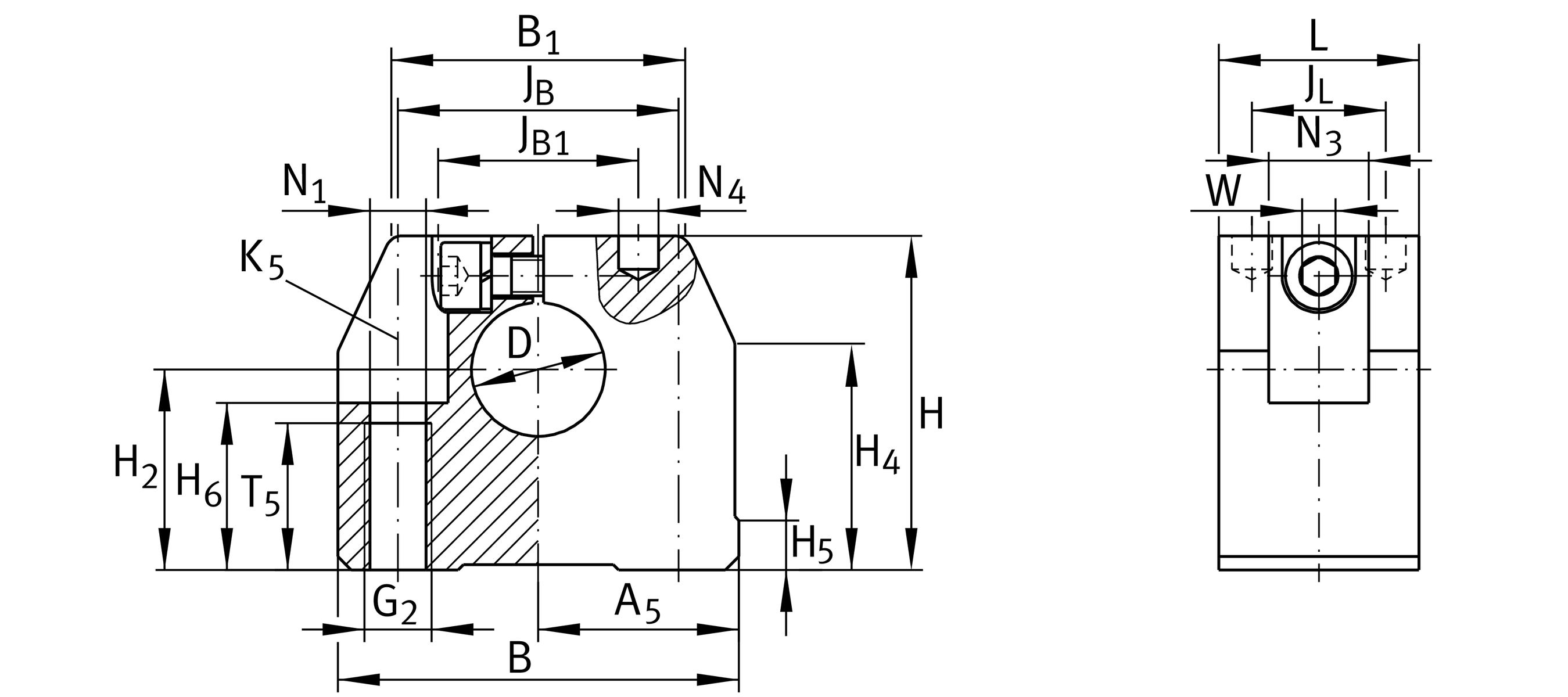

Main Dimensions & Performance Data
D
12 mm
Diameter
Tol D
H8
Tolerance
B
43 mm
Width
L
20 mm
Length
H
35 mm
Height
≈m
60 g
Weight

Mounting dimensions
JB
30 mm
Mounting Dimension
Tol JB
±0,15
Tolerance
JB1
20 mm
Mounting Dimension
B1
34 mm
Mounting Dimension
A5
21.5 mm
Mounting Dimension
Tol A5
+0,01
Upper tolerance
JL
13 mm
Mounting Dimension
H2
20 mm
Mounting Dimension
Tol H2
+0,01
Upper tolerance
Tol H2
-0,01
Lower tolerance
H4
26.6 mm
Mounting Dimension
H5
5.4 mm
Mounting Dimension
Tol A5
-0,01
Lower tolerance
T5
13 mm
Mounting Dimension
H6
16.5 mm
Mounting Dimension
G2
M6
Mounting thread below
N1
5.3 mm
Mounting Dimension 1
N3
10 mm
Mounting Dimension
N4
4 mm
Mounting Dimension
K5
M5
Size thread fixing screws above 2
W
3 mm
Width across Flat

Your current product variant
Size code12
VersionB
