GWH40-B
Shaft support block GWH40-B
Thêm vào yêu cầu báo giá

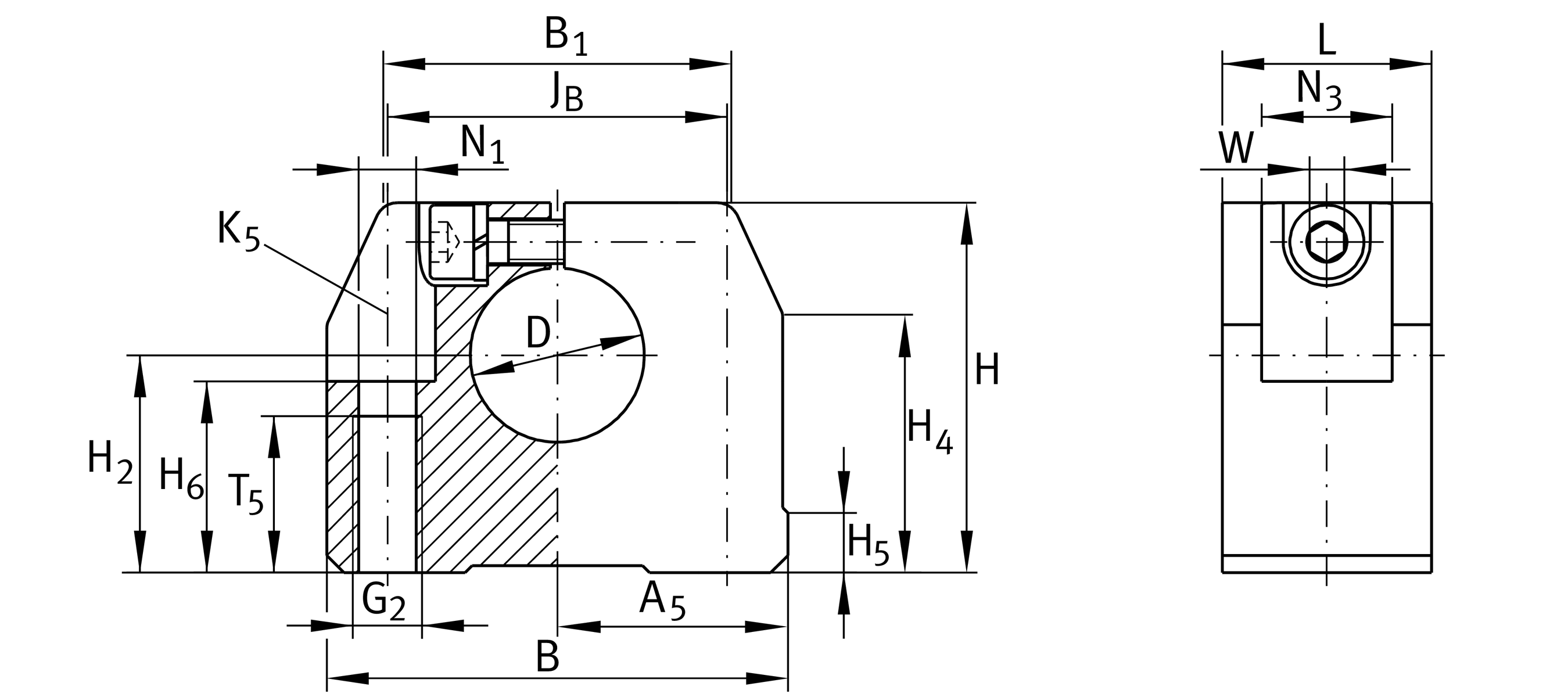

Main Dimensions & Performance Data
D
40 mm
diameter
Tol D
H8
Tolerance
B
87 mm
Width across flats
L
40 mm
Length
H
73.5 mm
Heigth
≈m
0.45 kg
Weight

Mounting dimensions
JB
66 mm
Mounting Dimension
Tol JB
±0,15
Tolerance
A5
43.5 mm
Mounting Dimension
B1
63 mm
Mounting Dimension
H2
42 mm
Mounting Dimension
Tol H2
+0,1
Upper tolerance
Tol H2
-0,1
Lower tolerance
H4
49.7 mm
Mounting Dimension
H5
12.8 mm
Mounting Dimension
T5
26 mm
Mounting Dimension
H6
38 mm
Mounting Dimension
G2
M12
Mounting thread below
N1
10.5 mm
Mounting Dimension
N3
20 mm
Mounting Dimension
K5
M10
Sie thread fixing screws above 1
W
6 mm
Width across Flat 2

Your current product variant
Size code40
SuffixBVersion
