GWH30-B
Shaft support block GWH30-B
Thêm vào yêu cầu báo giá

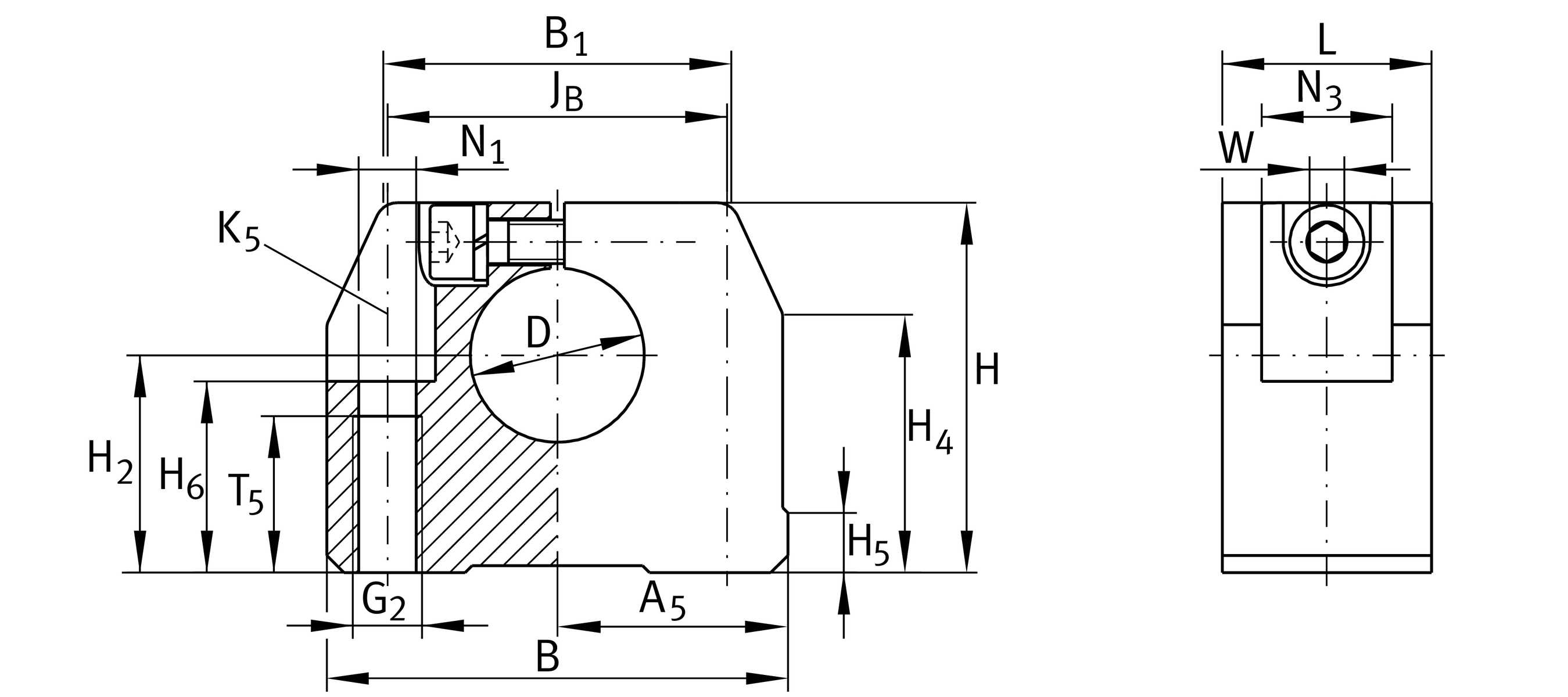

Main Dimensions & Performance Data
D
30 mm
diameter
Tol D
H8
Tolerance
B
67 mm
Width across flats
L
30 mm
Length
H
60 mm
Heigth
≈m
0.22 kg
Weight

Mounting dimensions
JB
49 mm
Mounting Dimension
Tol JB
±0,15
Tolerance
A5
33.5 mm
Mounting Dimension
B1
49.5 mm
Mounting Dimension
H2
34 mm
Mounting Dimension
Tol H2
+0,1
Upper tolerance
Tol H2
-0,1
Lower tolerance
H4
42.7 mm
Mounting Dimension
H5
8 mm
Mounting Dimension
T5
22 mm
Mounting Dimension
H6
29 mm
Mounting Dimension
G2
M10
Mounting thread below
N1
8.4 mm
Mounting Dimension
N3
18 mm
Mounting Dimension
K5
M8
Sie thread fixing screws above 1
W
5 mm
Width across Flat 2

Your current product variant
Size code30
SuffixBVersion
