GWH25-B
Shaft support block GWH25-B
Thêm vào yêu cầu báo giá

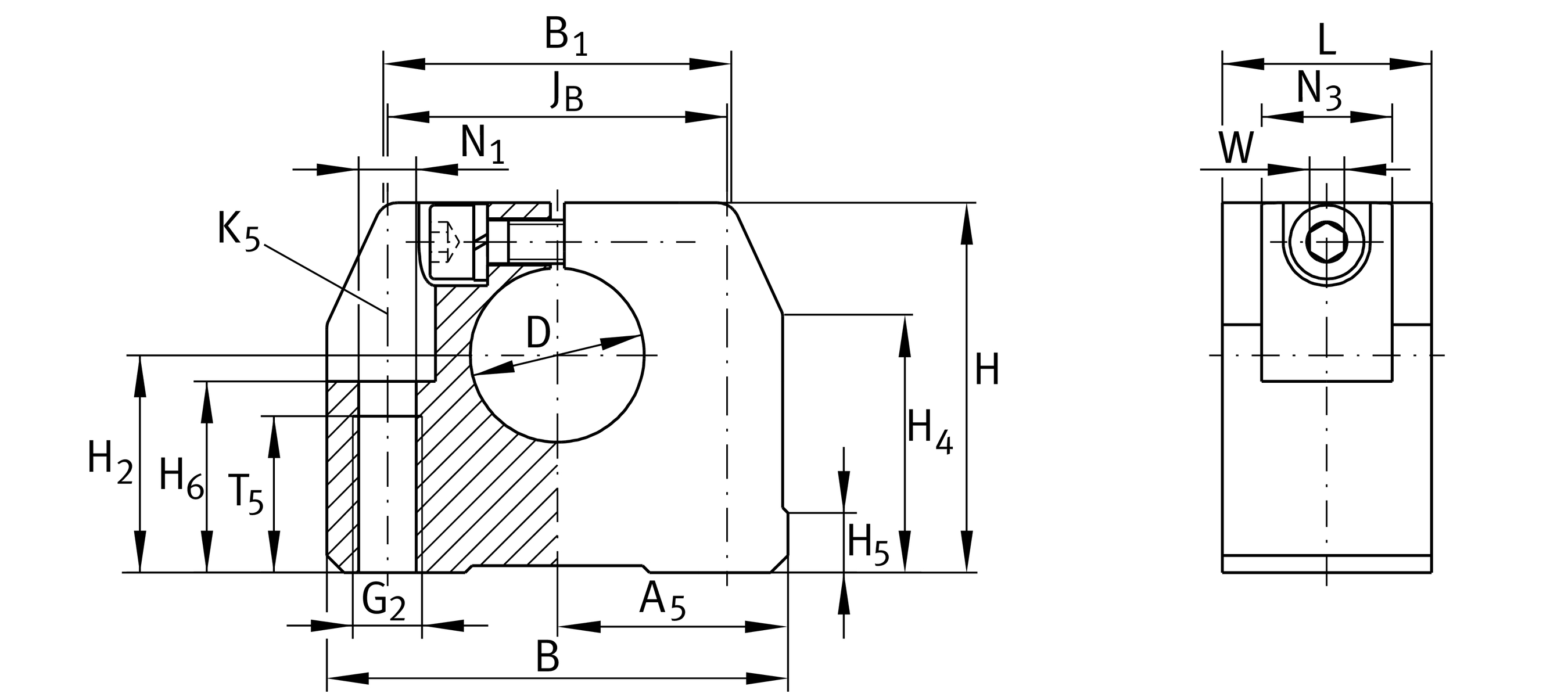

Main Dimensions & Performance Data
D
25 mm
diameter
Tol D
H8
Tolerance
B
60 mm
Width across flats
L
28 mm
Length
H
52.5 mm
Heigth
≈m
0.15 kg
Weight

Mounting dimensions
JB
44 mm
Mounting Dimension
Tol JB
±0,15
Tolerance
A5
30 mm
Mounting Dimension
B1
44 mm
Mounting Dimension
H2
31 mm
Mounting Dimension
Tol H2
+0,1
Upper tolerance
Tol H2
-0,1
Lower tolerance
H4
36.6 mm
Mounting Dimension
H5
9.9 mm
Mounting Dimension
T5
22 mm
Mounting Dimension
H6
26 mm
Mounting Dimension
G2
M10
Mounting thread below
N1
8.4 mm
Mounting Dimension
N3
18 mm
Mounting Dimension
K5
M8
Sie thread fixing screws above 1
W
5 mm
Width across Flat 2

Your current product variant
Size code25
SuffixBVersion
