GWH20-B
Shaft support block GWH20-B
Thêm vào yêu cầu báo giá

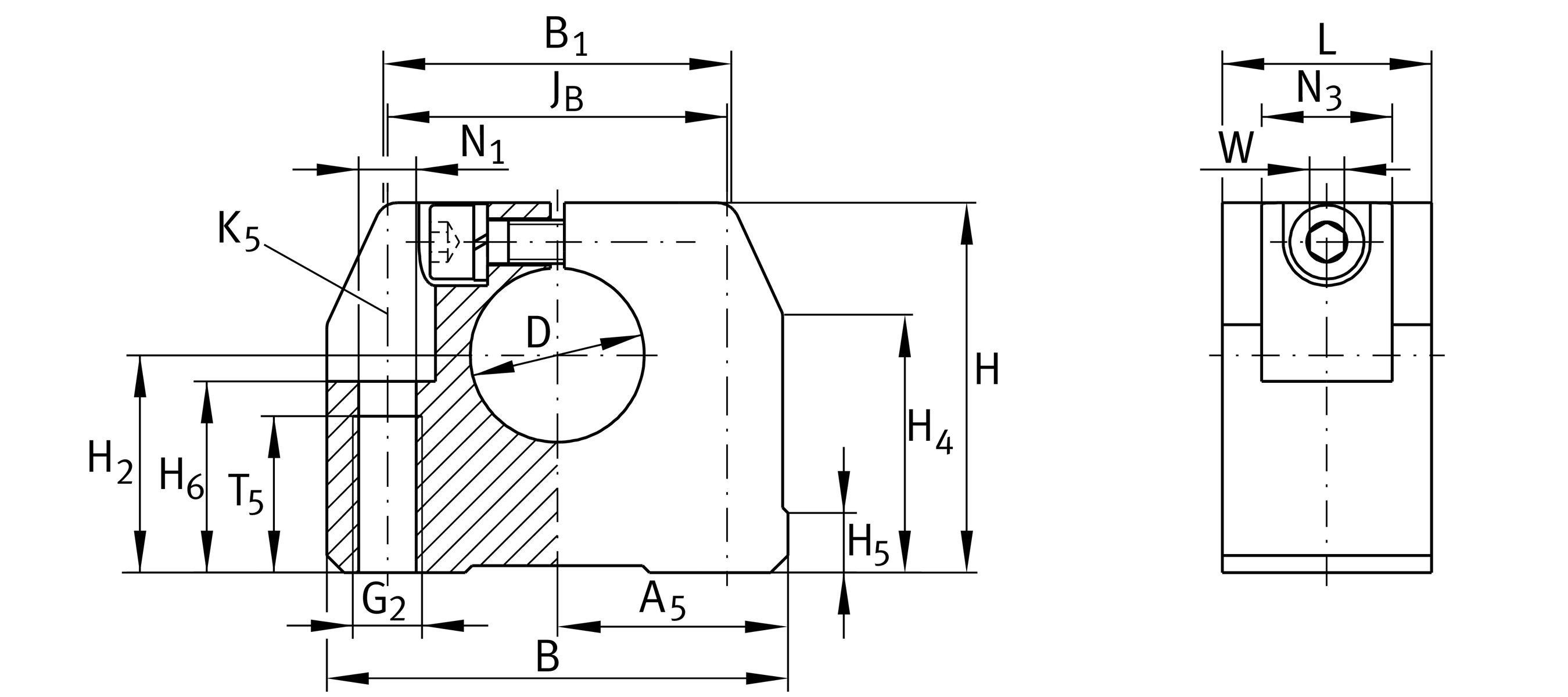

Main Dimensions & Performance Data
D
20 mm
diameter
Tol D
H8
Tolerance
B
53 mm
Width across flats
L
24 mm
Length
H
42.5 mm
Heigth
≈m
0.12 kg
Weight

Mounting dimensions
JB
39 mm
Mounting Dimension
Tol JB
±0,15
Tolerance
A5
26.5 mm
Mounting Dimension
B1
40 mm
Mounting Dimension
H2
25 mm
Mounting Dimension
Tol H2
+0,1
Upper tolerance
Tol H2
-0,1
Lower tolerance
H4
29.8 mm
Mounting Dimension
H5
7.4 mm
Mounting Dimension
T5
18 mm
Mounting Dimension
H6
22 mm
Mounting Dimension
G2
M8
Mounting thread below
N1
6.6 mm
Mounting Dimension
N3
15 mm
Mounting Dimension
K5
M6
Sie thread fixing screws above 1
W
4 mm
Width across Flat 2

Your current product variant
Size code20
SuffixBVersion
