GWH16-B
Shaft support block GWH16-B
Thêm vào yêu cầu báo giá

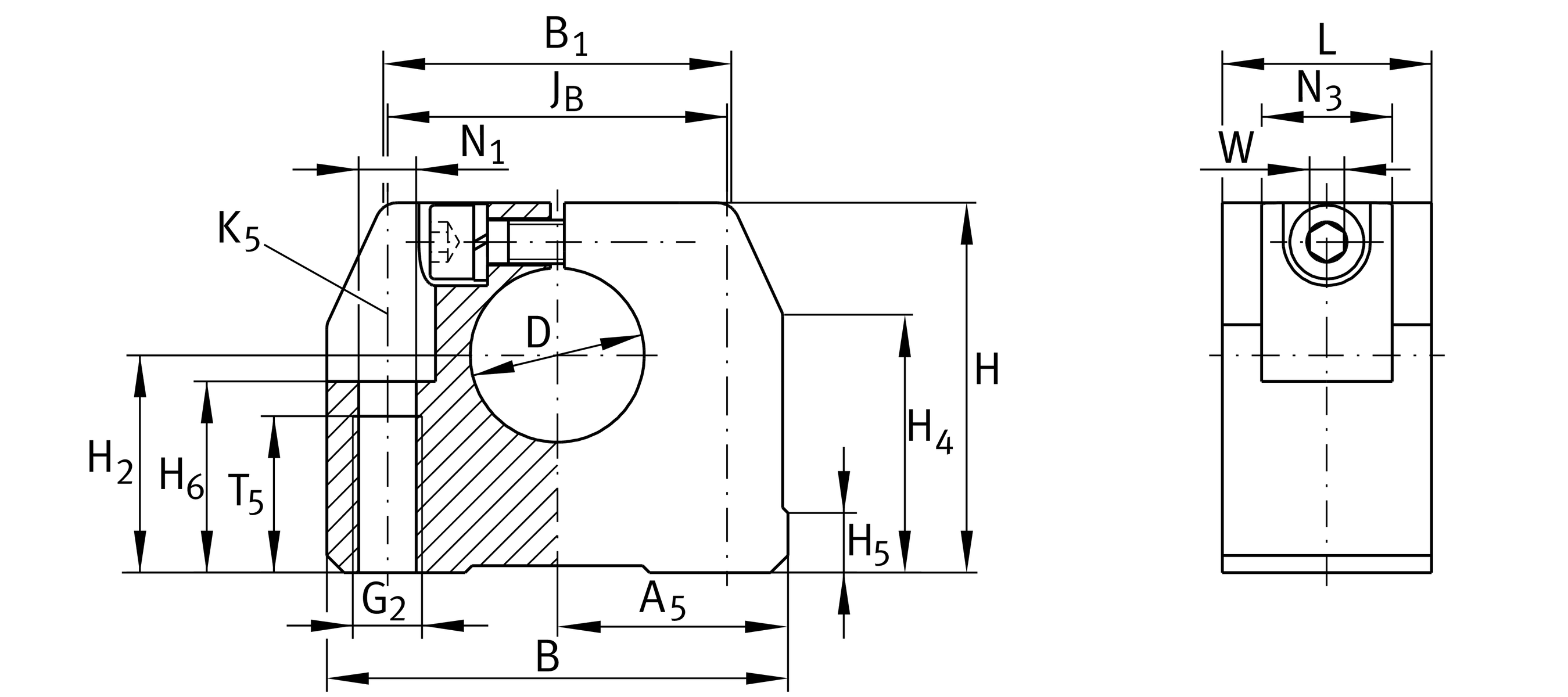

Main Dimensions & Performance Data
D
16 mm
diameter
Tol D
H8
Tolerance
B
43 mm
Width across flats
L
20 mm
Length
H
36.5 mm
Heigth
≈m
70 g
Weight

Mounting dimensions
JB
32 mm
Mounting Dimension
Tol JB
±0,15
Tolerance
A5
21.5 mm
Mounting Dimension
B1
34 mm
Mounting Dimension
H2
22 mm
Mounting Dimension
Tol H2
+0,1
Upper tolerance
Tol H2
-0,1
Lower tolerance
H4
28.1 mm
Mounting Dimension
H5
6.9 mm
Mounting Dimension
T5
13 mm
Mounting Dimension
H6
22 mm
Mounting Dimension
G2
M6
Mounting thread below
N1
5.3 mm
Mounting Dimension
N3
11 mm
Mounting Dimension
K5
M5
Sie thread fixing screws above 1
W
3 mm
Width across Flat 2

Your current product variant
Size code16
SuffixBVersion
