GWA50
Shaft support block GWA50
Thêm vào yêu cầu báo giá

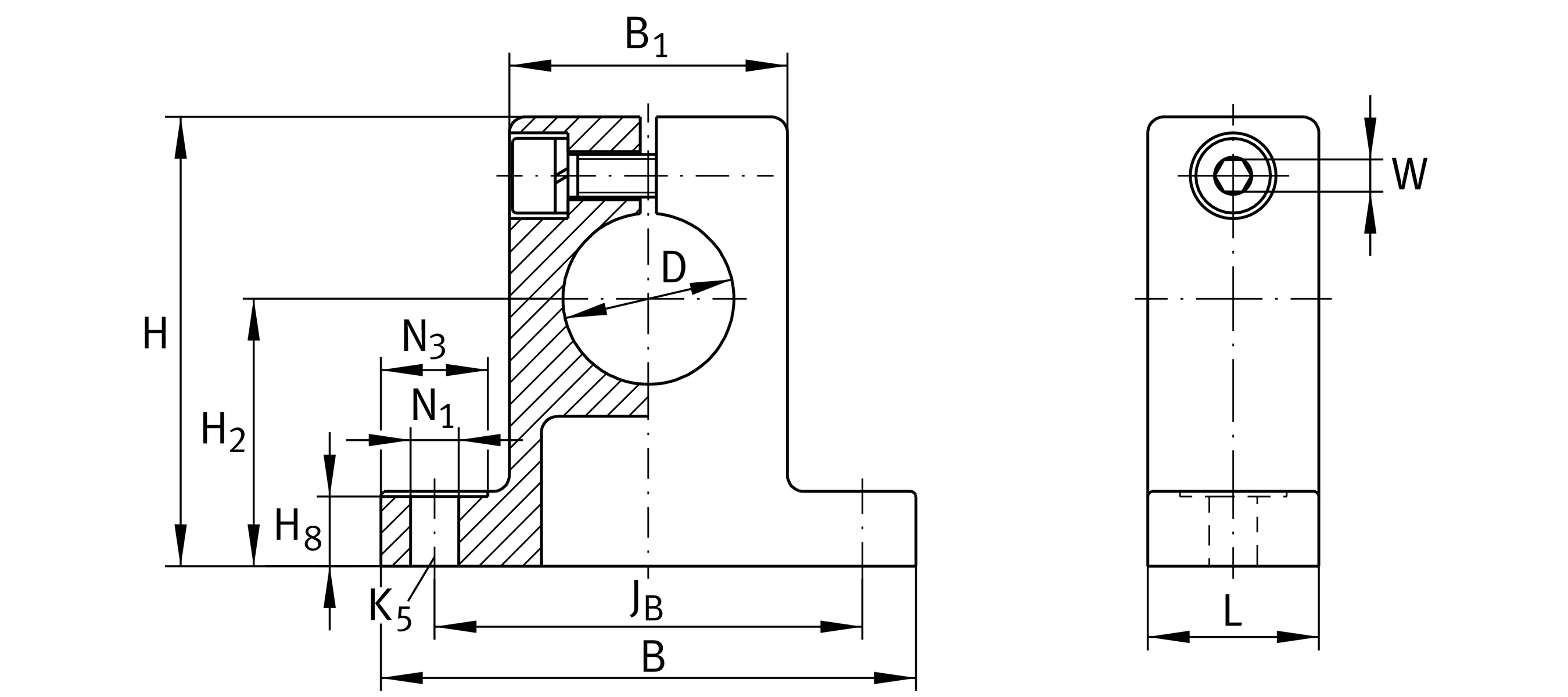

Main Dimensions & Performance Data
D
50 mm
Diameter
B
130 mm
Width
L
40 mm
Length
H
100 mm
height
≈m
1.38 kg
Weight

Mounting dimensions
JB
108 mm
Mounting Dimension
Tol JB
±0,2
Tolerance
B1
80 mm
Mounting Dimension
H2
60 mm
Mounting Dimension
Tol H2
+0,15
Upper tolerance
Tol H2
-0,15
Lower Tolerance
H8
14 mm
Mounting Dimension
N1
11 mm
Mounting Dimension 1
N3
22 mm
Mounting Dimension
K5
M10
Size thread fixing screws above
W
6 mm
Width across flats 2

Your current product variant
Size code50
