FAG INA Schaeffler
INA
GWA40
Shaft support block GWA40
Thêm vào yêu cầu báo giá

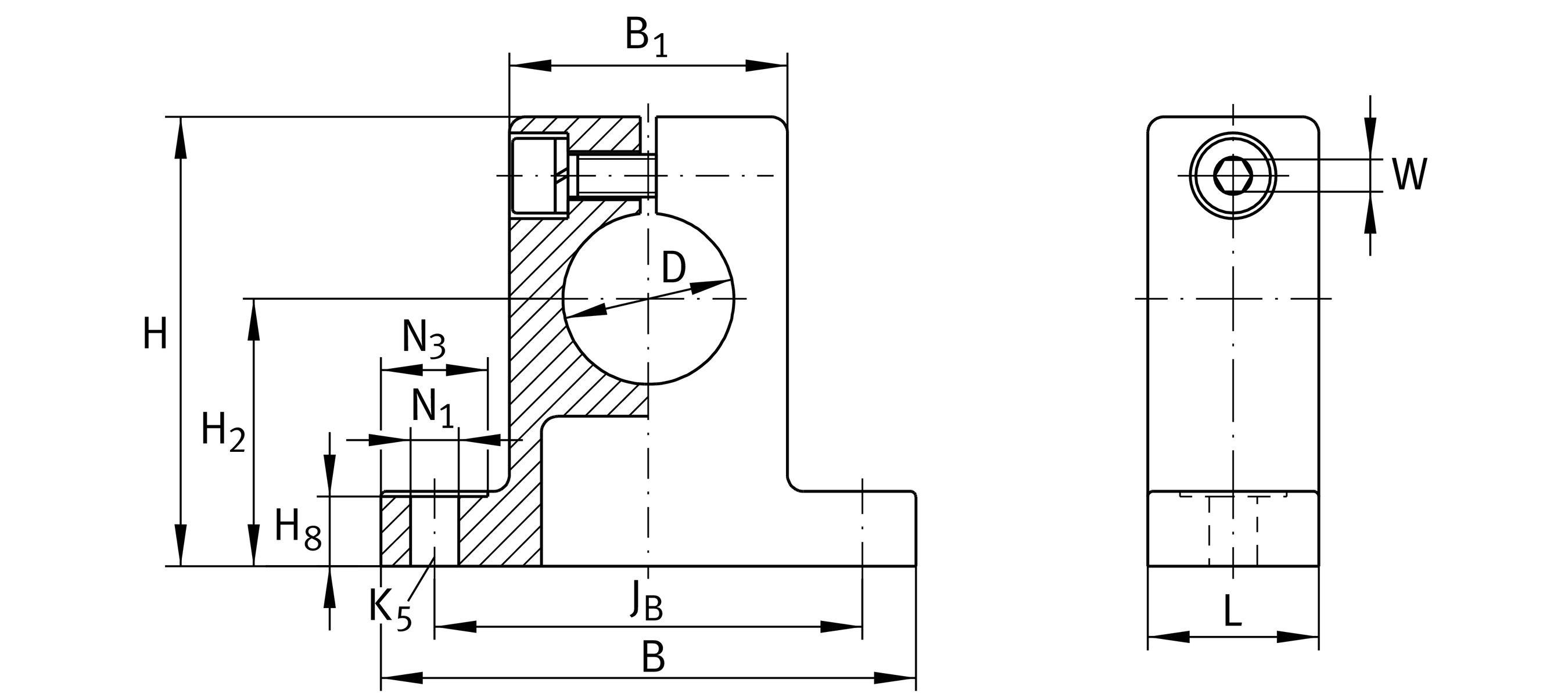

Main Dimensions & Performance Data
D
40 mm
Diameter
B
108 mm
Width
L
32 mm
Length
H
86 mm
height
≈m
0.665 kg
Weight

Mounting dimensions
JB
86 mm
Mounting Dimension
Tol JB
±0,2
Tolerance
B1
56 mm
Mounting Dimension
H2
50 mm
Mounting Dimension
Tol H2
+0,15
Upper tolerance
Tol H2
-0,15
Lower Tolerance
H8
12 mm
Mounting Dimension
N1
11.1 mm
Mounting Dimension 1
N3
22 mm
Mounting Dimension
K5
M10
Size thread fixing screws above
W
6 mm
Width across flats 2

Your current product variant
Size code40
